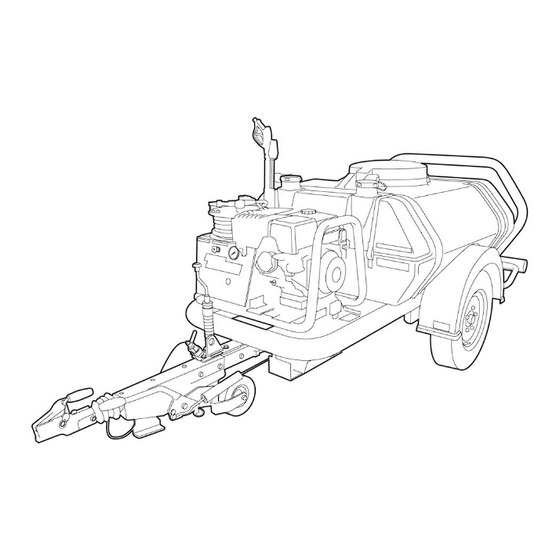

Brendon Bowserwasher (Diesel)
This highly versatile unit allows for cleaning or drain maintenance to be carried out, even in the most remote of
locations. It carries 940 Litres of water and with built in chemical & anti-freeze tanks on a single axle trailer. A Max
Gross weight of just 1500KG means it can be towed behind most commercial vehicles. As well as cleaning it can also
be used for drain jetting, machinery & plant washing, wheel washing, concrete preparation and general site cleaning.
These instructions include:
Operation
Day to day maintenance
Transport
Guidance for use:
Appropriate barrier where required
Appropriate PPE
Towing:
The towing vehicle must be suitable to tow this
weight
Check to make sure your driver's licence entitles
you to tow this machine
The max speed on the motorway is 60mph
Operational Safety and Care:
Anybody using this machine should have
adequate training.
Appropriate PPE should be worn at all times
Anybody using this machine should be over 18
as misuse of high pressure water can be
dangerous
Follow all instructions and labels on the machine
for safe operation
Do not point the lance at persons or animals,
even when the machine is off as there may still
be residual pressure
If you are unsure of any of these instructions
please refer to Operators Manual for the machine
Work only in safe areas
The machine is not a toy
Read and follow the instructions carefully
Do not use high pressure on delicate surfaces.
Always test surface to be cleaned
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBW30KLN and is the answer not in the manual?

Questions and answers

Summary of Contents for Brendon BBW30KLN

  • Page 1 Brendon Bowserwasher (Diesel) This highly versatile unit allows for cleaning or drain maintenance to be carried out, even in the most remote of locations. It carries 940 Litres of water and with built in chemical & anti-freeze tanks on a single axle trailer. A Max Gross weight of just 1500KG means it can be towed behind most commercial vehicles.
  • Page 2 Bowserwasher (Diesel) Towing Warning! The towing vehicle must be 3. Lower the hitch onto the approved to tow a weight of MAM 1500kg towing ball using the jockey Check your driver’s licence Warning! wheel entitles you to tow a trailer with a MAM of 4.
  • Page 3: Lifting The Machine

    Bowserwasher (Diesel) Towing (cont.) Release/Park Attention! When parking the machine on a slope make sure the hitch is facing downhill! 1. Release the jockey wheel bracket 2. Lower the jockey wheel 3. Tighten the jockey wheel bracket 4. Push the safety catch to release the handle 5.
  • Page 4: Before Use

    Bowserwasher (Diesel) Before use: General condition Adding Engine Oil Attention! Only use the approved 1. Check for any damage, wear or leaks on all the hose and fittings oil SAE 10W40 Checking the fuel level 1. Clean area of the oil fill cap Warning! Make sure area is well ventilated 2.
  • Page 5 Bowserwasher (Diesel) Preparation Use (Cont.) Change lance Anti-freezing Warning! Please be careful to avoid To Anti-freeze: any dirty or debris entering 1. Disconnect the lance 1. Lower the throttle to idle 2. Lift the red anti-freeze handle to 2. Engage red locking catch on the the vertical position trigger 3.
  • Page 6 Bowserwasher (Diesel) Operating Starting 1. Open the Fuel Tank Valve - Warning! Only use machine in a well move so it points down. ventilated area 2. Move the throttle lever off the stop position to low speed. 3. Push the starter button 4.
  • Page 7: After Use

    Bowserwasher (Diesel) Operating (cont.) After Use Working with the machine Turning off the machine 1. Shut the throttle down to the stop position to stop the engine. 2. Point the lance away from you and pull the trigger to release any residual pressure.
