LSI DOUBLE-DECK CROSSOVER Series Installation And Assembly Instructions

INSTALLATION AND ASSEMBLY INSTRUCTIONS
CRR/CRR3 DOUBLE-DECK CROSSOVER ® SERIES LUMINAIRE
WARNING: Failure to follow instructions could result in
damage to product and void warranties!
For new installations ONLY! For retrofit of existing luminaires refer
to proper retrofit instructions!
Risk of fire or electrical shock. Disconnect power before installing
or servicing.
NOTE: For installation on Metal double-deck Canopies.

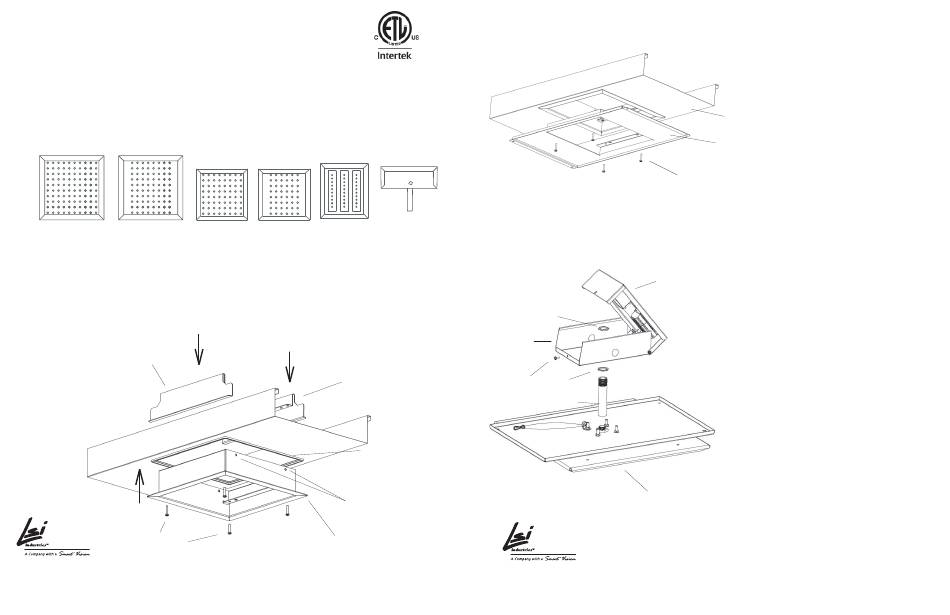

128 LED Luminaire 104 LED Luminaire 84 LED Luminaire 64 LED Luminaire
Suggested Tools: Flat screwdriver, Philips screwdriver, caulk gun
1
Reference site layout for luminaire location and type. Ensure nothing is above decking before cutting. Cut
an 11" square hole in between canopy ribs. Apply 1/4" bead of Sealant/Adhesive (supplied) around hole.
Push Collar up through the hole and into the Sealant/Adhesive to create a water tight seal. Install (2) Clamp
Brackets by inserting them up through the hole and back down over the lip of the Collar. Secure Clamp
Brackets to Collar using outer most holes in flange and (4) #10-24 x 1" screws. Tighten screws so that Collar
flange is flush and tight up against decking. NOTE: For thin-material canopies, holes are provided at top of
Collar which allow wire hanging from interior canopy structure.
Clamp
Bracket
#10-24 x 1"
Screw
LSI Industries Inc. 10000 Alliance Road Cincinnati, Ohio 45242
442652 Rev. 1/11
Listed to UL1598
Canopy Luminaire,
Suitable for wet locations
Driver for
Focus Luminaire all Luminaires
Clamp
Bracket
1/4" Bead Sealant
Adhesive (supplied)
Collar Holes
(for additional support
on thin canopy decks)
Collar
(513) 793-3200 Fax (513) 793-0147 www.lsi-industries.com
1 / 3 ©2011 LSI Industries Inc.
®
DOUBLE-DECK CROSSOVER SERIES LUMINAIRE, cont'd.
Driver
Box Cover
Nut
Driver
Box
Side
Nut
screw
Stem
Luminaire
LSI Industries Inc. 10000 Alliance Road Cincinnati, Ohio 45242
2
Install Mounting Bracket using outer most holes in flange
and (4) #10-24 x 1" screws. Tighten screws so Mounting
Bracket is flush and tight up against decking.
Deck
Mounting
Bracket
#10-24 x 1" Screw
IMPORTANT: The following instructions are for
qualified electricians only!
3
Locate Driver Box. Open Driver Box Cover from bottom by
loosening side screw and rotating top upward. Secure box
bottom to conduit stem. With (1) Stem Nut in hand -
locking teeth facing UP - feed both luminaire connectors
thru Nut, then thread nut onto Stem external threads; fully
thread Nut all the way down Stem until it stops. Feed
all luminaire wiring thru box bottom, then lower Box
onto Stem. With other Stem Nut in hand - locking teeth
facing DOWN - feed wiring thru nut, then thread
onto Stem and tighten. Make secondary wiring
connections per terminal block label inside Driver Box.
(513) 793-3200 Fax (513) 793-0147 www.lsi-industries.com
2 / 3 p/n 442652 Rev. 1/11
