LSI CORD HUNG Installation Instructions

Fixtures must be installed according to the instructions provided to avoid field failure!
Wiring to be done according to Local and National Electric Codes by a qualified

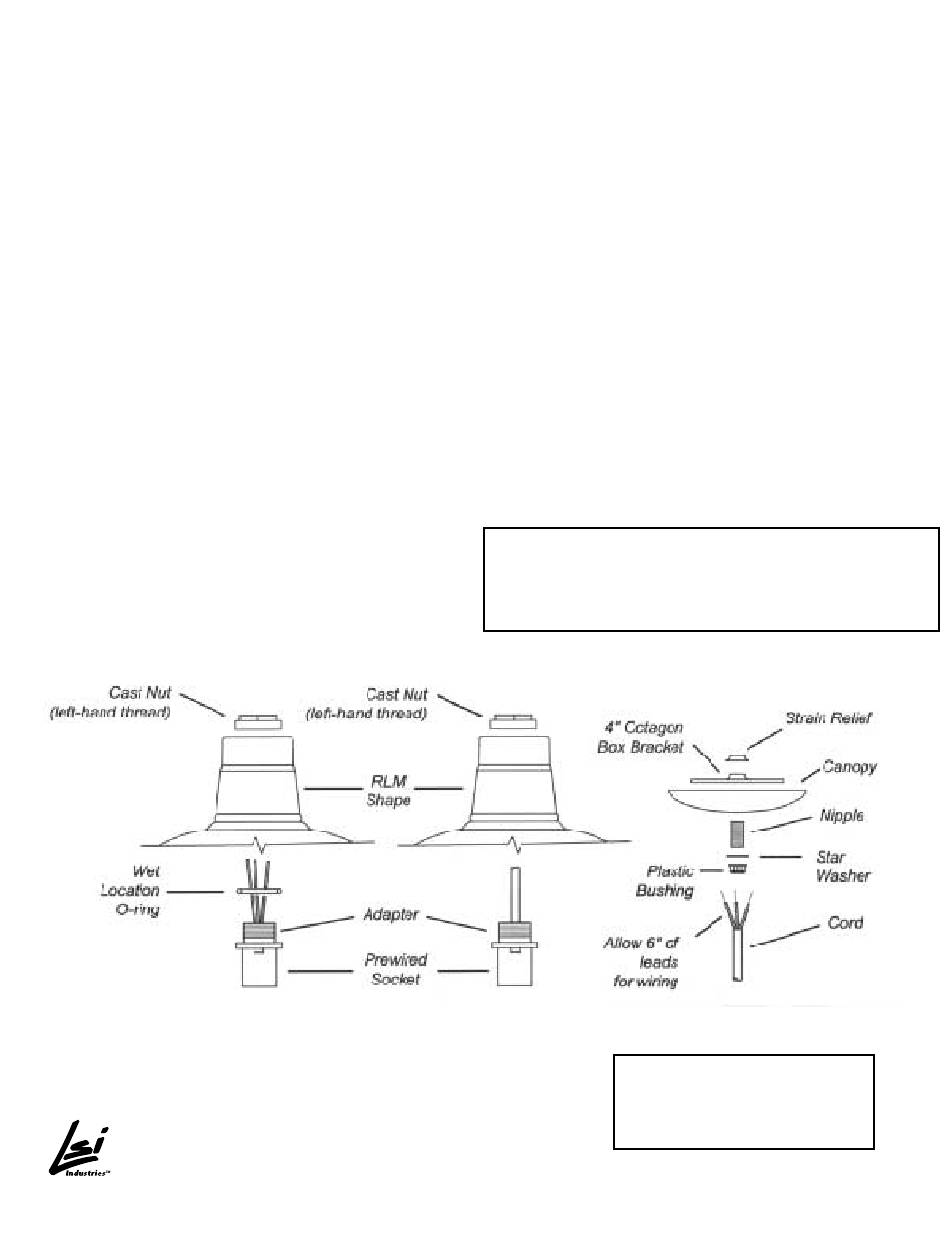

Stem Hung RLM

1.Pre-wired socket comes assembled to adapter.
Verify O-ring is in place.
Important: O-ring must be installed for Wet Location
seal!!
2. Insert socket assembly into fixture.
3. Slide the cast nut down the leads and thread onto
the adapter. Note: The nut is left-hand thread.
4. Tighten cast nut firmly.

Cord Hung RLM

1.Pre-wired socket comes assembled to adapter.
2.Insert socket assembly into fixture.
3.Slide the cast nut down the leads and thread onto the
adapter. Note: The nut is left-hand thread.
4.Tighten cast nut firmly.
LSI Industries Inc. 10000 Alliance Road
INSTALLATION INSTRUCTIONS FOR
STEM HUNG & CORD HUNG RLMs
Make sure all power is disconnected prior to installation.
Cincinnati, Ohio 45242
!!! Important !!!

Ceiling Canopy with Cord Hung RLM

1. Cut the cord to the desired hanging length allowing an extra
6" for wiring.
2. Slide cord through plastic bushing, star washer and canopy.
3. Thread nipple into Octagon-box bracket and slide the cord up
through the nipple/Octagon-box bracket assembly.
4. Crimp strain relief 6" down from top of cord. Remove cord
jacket just above strain relief exposing leads for wiring.
5. Attach nipple/Octagon-box bracket assembly to Octagon-box.
6. Make wiring connections and slide canopy up onto the nipple.
Thread plastic bushing onto nipple holding canopy in place.
Important: Teflon tape or pipe dope must be
used on stem or gooseneck threads, that will
screw into fixture, to ensure "Wet Location"
seal!!
(513) 793-3200
Page 1 of 2
QUESTIONS?
Call LSI Field Service Dept.
1 (800) 436-7600 ext 3300
Fax 1-877-861-1368
Fax (513) 793-0147 www.lsi-industries.com
147071 Rev. 9/06
