asecos V Series User Manual

Hide thumbs Also See for V Series:
Table of Contents

Advertisement

Quick Links

Download this manual

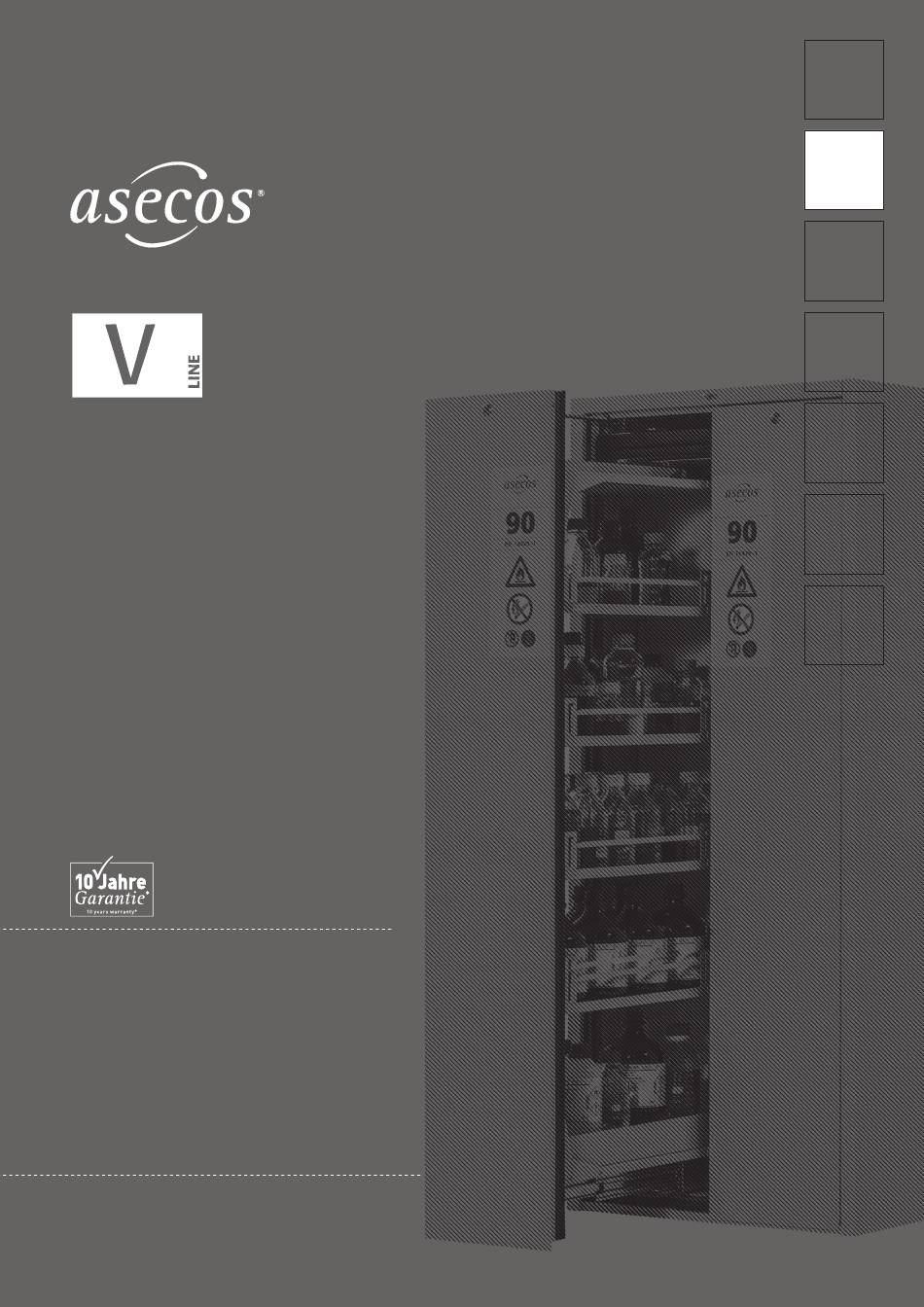

EP.V.31417_02 · 05/2020
BEDIENUNGSANLEITUNG
Sicherheitsschränke V-LINE
USER MANUAL
Safety storage cabinets V-LINE
GEBRUIKSAANWIJZING
BrandveiligheidsopslagkastenV-LINE
NOTICE D´UTILISATION
Amoires de sécurite d´aprés V-LINE
MANUAL DE INSTRUCCIONES
Armarios de seguridad V-LINE
ISTRUZIONI PER L´USO
Armadi di sicurezza V-LINE
INSTRUÇÕES DE SERVIÇO
Armários de segurança V-LINE
10 JAHRE GARANTIE*
* Bei jährlicher Beauftragung des
Premium Tarifs verlängert sich
die Garantie für Ihren V-LINE
Sicherheitsschrank auf bis zu 10 Jahre.
10 YEARS WARRANTY*
* Upon conclusion of an asecos
service and maintenance agreement
(PREMIUM tariff), you will get
a warranty extension for up to 10 years for
your V-LINE safety storage cabinet.
Weitere Informationen zu unseren Garantieleistungen finden Sie unter
www.asecos.com/service-leistungen
For detailed information about our warranties please visit
www.asecos.com/service-conditions
DE
EN
NL
FR
ES
IT
PT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for asecos V Series

Summary of Contents for asecos V Series

  • Page 1 Premium Tarifs verlängert sich die Garantie für Ihren V-LINE Sicherheitsschrank auf bis zu 10 Jahre. 10 YEARS WARRANTY* * Upon conclusion of an asecos service and maintenance agreement (PREMIUM tariff), you will get a warranty extension for up to 10 years for your V-LINE safety storage cabinet.
  • Page 2 V-MOVE-90 V90.196.045.VDAC:0012 V90.196.081.VDAC:0012 V90.196.045.VDAC:0013 V90.196.081.VDAC:0013...
  • Page 3 YOUR PERSONAL DOCUMENTATION TO THE asecos SAFET Y CABINET Dear Customer, you have made a decisive investment in safety for your company by purchasing this asecos safety storage cabinet. You now own an innovative product made of top-quality materials guaranteeing the highest quality standards.

  • Page 4: Table Of Contents

    Many thanks. Your asecos team 1. NOTES • GUIDELINES • GUARANTEE ..........5 1.1.

  • Page 5: Notes • Guidelines • Guarantee

    The guarantee for this product is agreed between you (the customer) and your dealer (the seller). As the manufacturer, asecos guarantees the products listed in the operating instructions for a period of 24 months from the date of delivery. All model safety equipment are subject to a compulsory annual inspection by spe- cialised staff authorised by the manufacturer.

  • Page 6: Transport

    2. TRANSPORT CAUTION: Transport the cabinet in an upright position on a pallet truck, tied and secured against slipping, until the final place of installation is reached.The transport locks in the door joints may only be removed directly at the place of installation! Inappropriate transport can lead to concealed damage to the fire protection insulation! We can only guarantee the necessary quality if the cabinet is transported to the place of its use by our specially trained staff.

  • Page 7: In-Plant Transport

    2.3. IN-PLANT TRANSPORT CAUTION: The cabinet must not be moved by pulling the opened drawer! Pulling or sliding may only be carried out in the body housing! Steps for manoeuvring the cabinet: • Open the drawer of the cabinet • Connect the belts with steel angles or steel rings using a screw M10 •...

  • Page 8: Locking Of The Cabinet

    V90.196.045.VDAC 2× 2× V90.196.081.VDAC 2× 3× NOTES to figures 4 and 5 Only one vertical drawer can be opened at a time while the other one remains closed. 3.4. LOCKING OF THE CABINET 3.5. UNLOCKING OF THE CABINET...

  • Page 9: Automatic Door Closing System (Tsa)

    3.6. AUTOMATIC DOOR CLOSING SYSTEM (TSA) 3.7. DISABLE THE AUTOMATIC DOOR CLOSING SYSTEM >3 sec ATTENION: In case of fire the automatic door closing is always ensured!

  • Page 10: Safety Functions

    4. SAFETY FUNCTIONS 4.1. CLOSING THE DRAWER DURING BLACKOUT CAUTION: During a blackout the opened drawer will close automatically using an integrated battery. Please note, it only has power for one closing routine. 15 sec 4.2. AUTOMATIC CLOSING IN THE EVENT OF FIRE 47 °C 4.3.

  • Page 11: Blocking The Drawer While Cosing

    4.4. BLOCKING THE DRAWER WHILE COSING Release blockage CAUTION If no direct user intervention occurs after the blockage, the cabinet will give an acoustic and visual alarm after 20 seconds. In that case, please remove the blockade and follow the previous steps!

  • Page 12: Surcharge (Top-Mounted Cabinet)

    5. SURCHARGE (TOP-MOUNTED CABINET) The V-LINE safety storage cabinets can be loaded if the cabinet was ordered with article HF.L.32864 (order no. 38275). These cabinets are then structurally adjusted at the factory and additionally marked on the outside as load-bearing. head section rear CAUTION: head section front...

  • Page 13: Interior Fittings

    6. INTERIOR FITTINGS 6.1. BOTTOM COLLECTING SUMP According to EN 14470-1: A spill containment sump must be installed below the lowest storage level. The spill containment sump must be able to hold a minimum volume of 10 % of all the containers stored in the cabinet [1] or at least 110 % of the volume of the largest single container [2] , whichever of these volumes is larger.

  • Page 14: Storage

    To install the second safe guard rail system on the opposite side, follow the steps from point 6 again. Pay attention to the correct use of the required brackets. 7. STORAGE • Vessels containing aggressive chemicals (acids and alkalis) are to be kept in special cabinets for acids and al- kalis or on shelves for acids and alkalis as well as in safety storage cabinets with metal-free interior equipment.

  • Page 15: Ventilation

    9. VENTILATION CAUTION The fire protection valves near the supply and extraction air connections are safety and maintenance-relevant components. In order to check the correct operation or to replace a defective element, please ensure that flexible connecting hoses or sliding pieces are used to connect to an extraction system in order to ensure simple dismounting and re-mounting of the extraction air connection.

  • Page 16: Safety Checks

    This annual check can be carried out with the necessary care, and for securing your warranty claims in the case of fire, only by an authorised asecos employ- ee (refer also to our service brochure regarding this).
  • Page 18 1. TECHNICAL DATA In general V90.196.045.VDAC V90.196.081.VDAC Type External dimensions W x D x H 449 x 860 x 1966 819 x 860 x 1966 Internal dimensions W x D x H 331 x 775 x 1750 701 x 775 x 1750 Weight without interior equip.
  • Page 19 1.2. V90.196.081.VDAC:0012 / V90.196.081.VDAC:0013 Front view Side view Selectional view 1448 Shelf guard rail system Sump inliner (PP) Shelf Anti-slip rubber mat Bottom collecting sump Perforated insert Top view (294,88) Earthing link Exhaust air DN 75 Fresh air...
  • Page 20 GmbH Abt. Kundendienst Weiherfeldsiedlung 16-18 D-63584 Gründau Fax: +49 60 51 – 92 20-10 www.asecos.com Ihr Fachhändler: Your partner: Uw partner: Votre partenaire : Su distribuidor: su richiesta:...

This manual is also suitable for:

V-move-90V90.196.045.vdac:0012V90.196.081.vdac:0012V90.196.045.vdac:0013V90.196.081.vdac:0013
