ADDAC703 Assembly Guide
STEP 5:

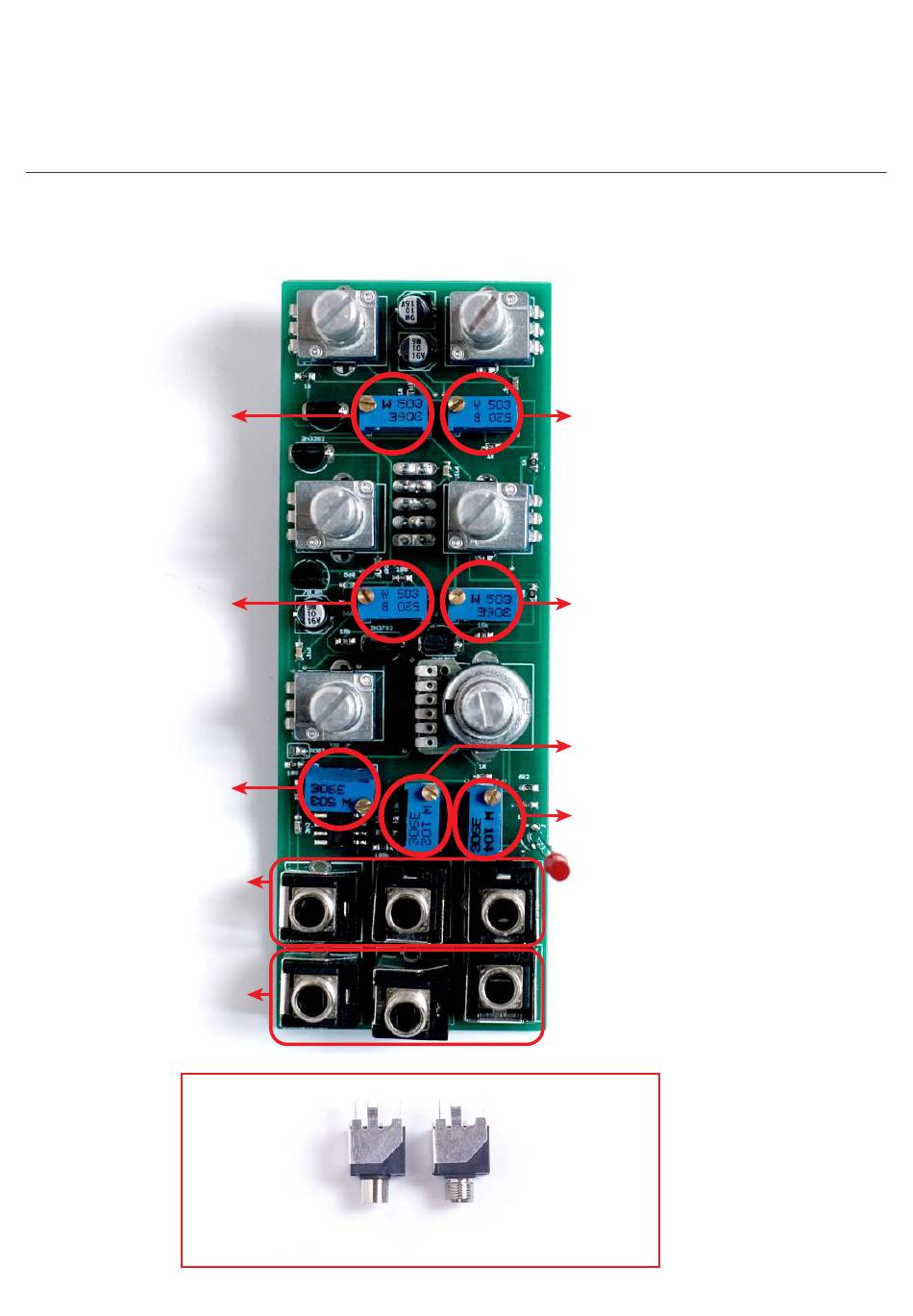

Place all parts on the pcb, notice the values, orientation and jack types like shown below.
50k = 503
50k = 503
50k = 503
Non-threaded
Jacks
Threaded Jacks
Non-threaded
ADDAC SYSTEM
Jacks
50k = 503
50k = 503
1k = 102
100k = 104
Threaded Jacks
page 7
