Summary of Contents for Transcension UP2 TRUEDIM

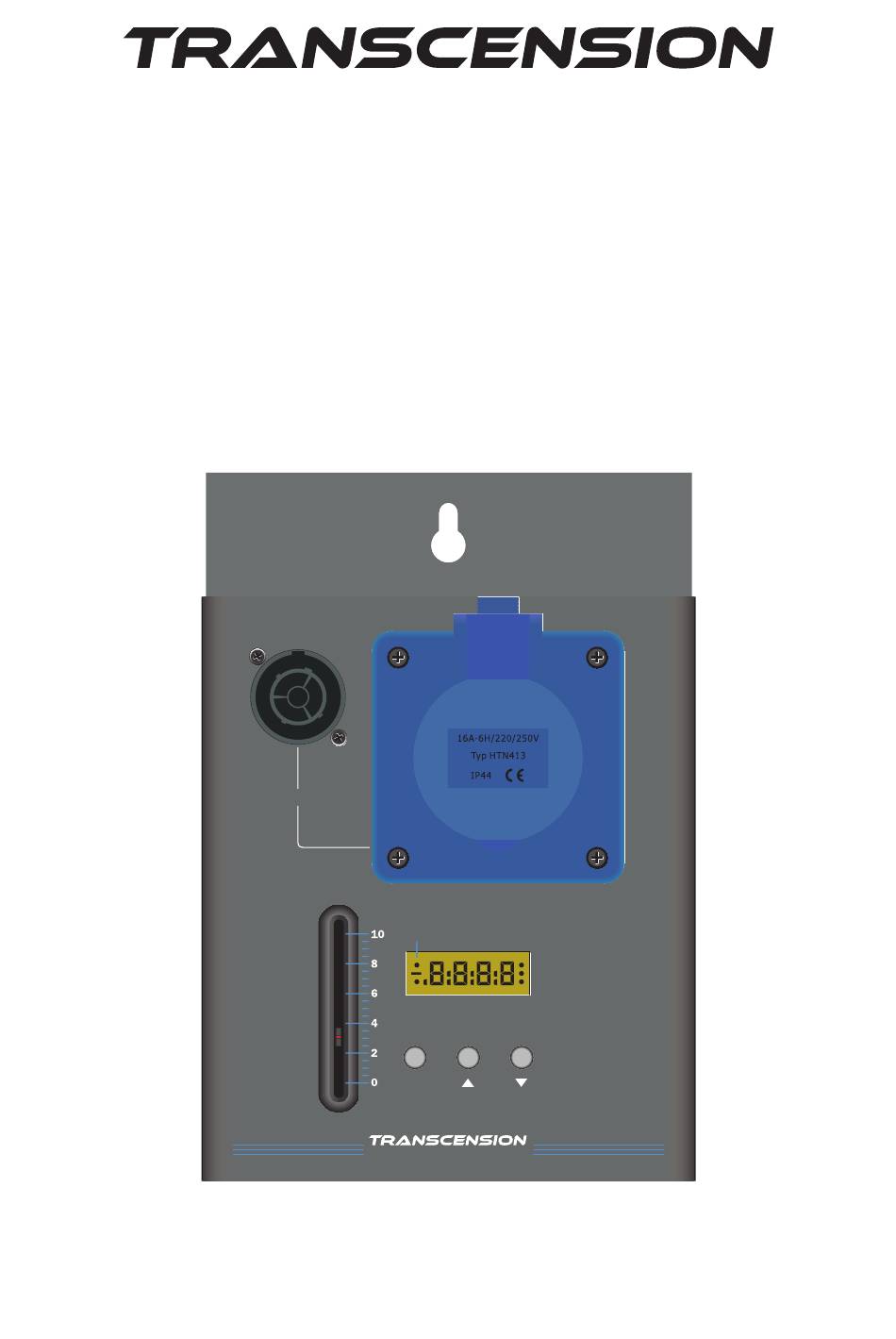

- Page 1 UP2 TRUEDIM 1 Channel Dimmer User Manual OUTPUT: 10A Max. MENU UP2 TRUEDIM 1CH DIMMER Order code: BOTE39...
- Page 2 Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
- Page 3 1 x controller, 09 - 5-Pin XLR DMX input 1 x power cable 10 - 5-Pin XLR DMX output & 1 x user manual UP2 TRUEDIM 1CH DIMMER 11 - DMX indicator www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
- Page 4 DMX signal. In switch pack off mode the output is turned off and the fixture is controlled via the DMX signal. If the DMX level is less than 40% the fixture will blackout, above 40% the fixture will illuminate. www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
- Page 5 00-100. Once the dimmer preset is selected it will be automatically stored into the units memory. Please note: The HTP Fader MUST be at value 0 for the DMX to operate correctly. www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
- Page 6 CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
- Page 7 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
- Page 8 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk UP2 TRUEDIM 1 Channel Dimmer User Manual...
