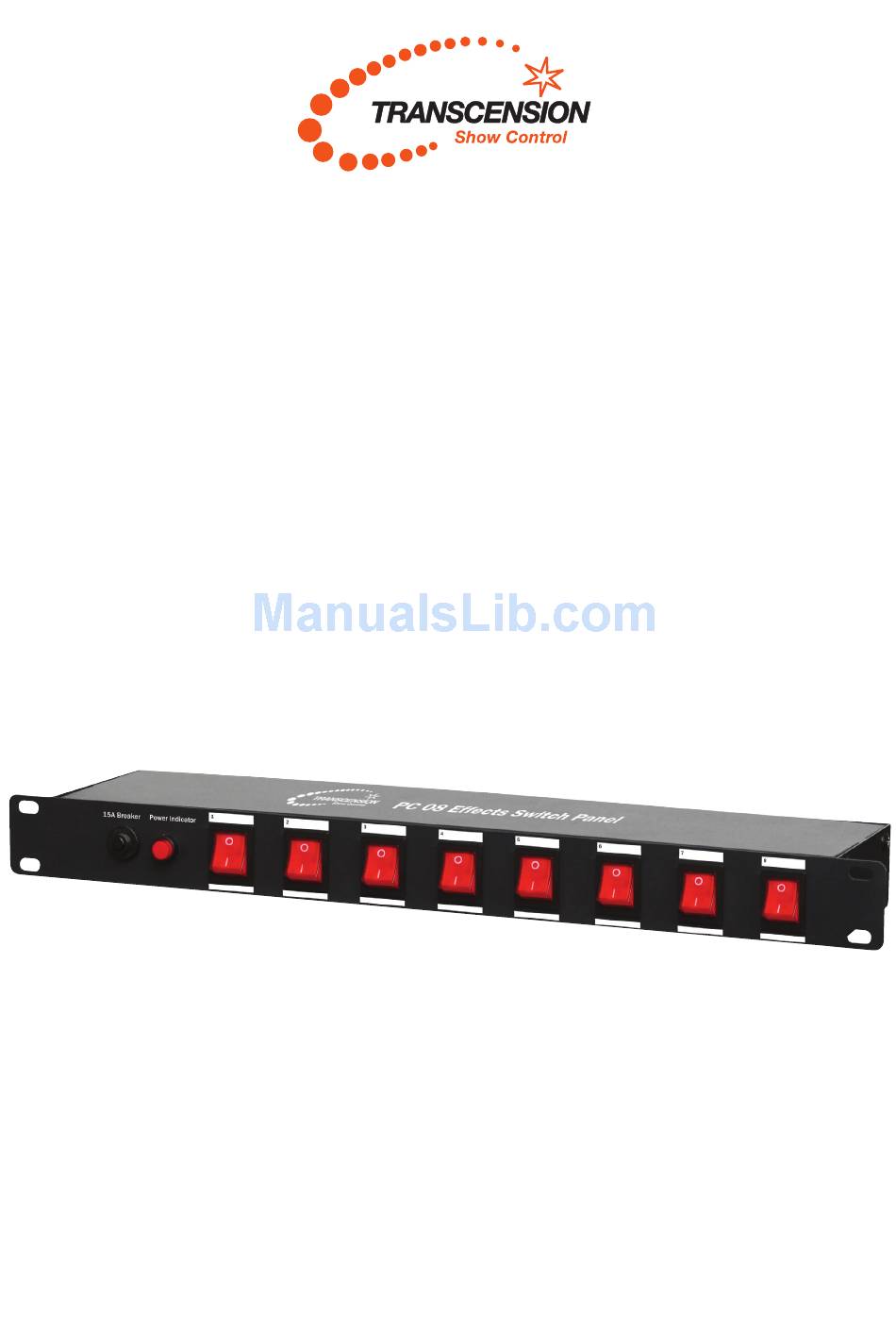

- Page 1 PC 08 Effects Switch Panel User Manual Order code: CONT05...
- Page 2 • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is carried out by a qualified technician. THIS UNIT CONTAINS 120-240V AC~50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk PC 08 Effects Switch Panel User Manual...
- Page 3 120-240V~50/60Hz 15A MAX LOAD TOTAL 01 - 15A breaker 04 - Labelling strip 07 - Captive power In the box: connection 02 - Power indicator 05 - 8 x 15A IEC outputs 1 x switch panel & 03 - On/off switches 06 - Earth point 1 x user manual Operation This unit has been designed to independently switch ON/OFF up to eight units via the power sockets at the rear. Simply plug each unit into the appropriate socket using the correct power. For your protection the switch panel has been fitted with a 15A circuit breaker which will disconnect the main power supply from the outputs should you overload the panel or if there is a power surge. To continue to use the panel switch off all 8 switches on the front panel then press the reset button to reactivate the power. The switch panel is also fitted with a power indicator neon on the front panel. Should the 15A resettable breaker activate, the power indicator will fail to illuminate. Press to the reset the 15A breaker. www.prolight.co.uk PC 08 Effects Switch Panel User Manual...
- Page 4 Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk PC 08 Effects Switch Panel User Manual...
