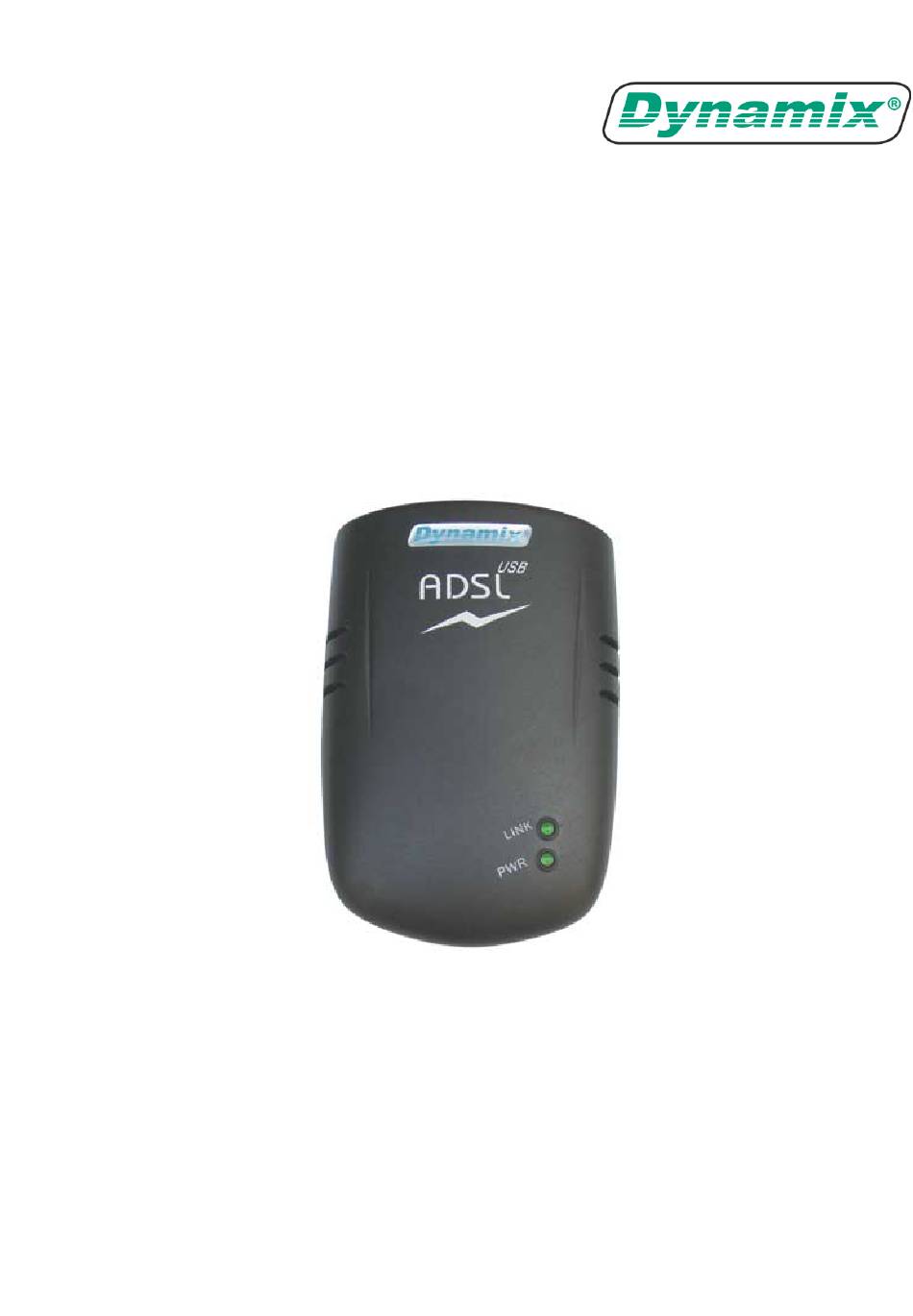

- Page 1 DYNAMIX UM-AU ADSL USB MODEM Quick Start Guide...
- Page 2 Contents I. Panel Description …………..…………………….……………………………..P2 II. Hardware Installation ………………………….……………………………..P3 III. Driver Installation ……………………………….……………………………..P4 IV. Driver Utility ………………………..…………….………………………..……..P13 ADSL USB MODEM...
-
Page 3: Panel Description
I. Panel Description 1. Front Panel Steady Yellow light indicates an active ADSL device. Blinking Yellow light indicates ADSL connection session. LINK Steady Yellow light indicates a valid ADSL connection. 2. Back Panel ADSL Port for connecting the USB ADSL Modem to the ADSL Service Provider. USB Port for Host computer connection. -
Page 4: Hardware Installation
II. Hardware Installation This section describes the hardware connection mechanism of your USB ADSL Modem. You need to prepare the following items before you can establish an Internet connection through your USB ADSL Modem : A computer system with the following items installed : a. -
Page 5: Driver Installation
III. Driver Installation This section describe the driver installation process. Follow the instructions step by step to complete the driver installation. Step 1 : Power on your Computer. Step 2 : Plug the ADSL line to the “LINE” Port of your ADSL Modem. Step 3 : Insert the Square end of the USB cable into the “USB”... - Page 6 A warning message will pop-up as shown below once clicking the “Driver Install” icon. Connect your USB ADSL Modem into the USB port of your computer. The USB ADSL Modem will be detected and the installation process will continue automatically. The USB ADSL Modem should be connected to your PC prior to installing the software.
- Page 7 1. Auto Installation Step 1 Click “Auto Installation” then click “Next” to continue. Select Country from the list provided then click “Next” to continue. Click “Back” and choose the “Manual Installation” to complete the Driver Installation process “IF” you can’t find your location from the “Country List”...
- Page 8 Step 3 Some ISP will need you to enter your “User Name”, “Password” and “Confirm Password” before moving to the next step. Check your ISP for the setting details and click “Next” after your choice. Step 4 The Setup Wizard will ask you to review your settings before it starts to copy necessary files to your system.
- Page 9 Step 5 When you click the “Finish” button, the installation process will automatically copying all the necessary files to your system. An “Under Installation, please wait …” icon will appear indicates the files copying process. Step 6 Click “OK” to complete the Auto Installation process. If Windows asks you for the original Windows CD-ROM, insert the CD-ROM and direct Windows to the proper location for the CD-ROM.
- Page 10 2. Manual Installation Step 1 : Select “Manual Installation” and click “Next” to continue. Step 2 : Select “Encapsulation”, “Handshake” and enter the “VPI” and “VCI” setting then click “Next” to continue. Check your ISP for the setting details. ADSL USB MODEM...
- Page 11 Table below lists the necessary setting need to be filled for each Encapsulation type. Check your ISP for the setting or configuration details. Encapsulation VPI/VCI Setting Password Setting Handshake Setting ■ ■ 1483 Bridge LLC ■ ■ 1483 Bridge VC-MUX ■...
- Page 12 PPPoA LLC, PPPoA VC-MUX, PPPoE LLC or PPPoE VC-MUX : When “PPPoA LLC” or “PPPoA VC-MUX” or “PPPoE LLC” or “PPPoE VC-MUX” Encapsulation is selected, manually enter your “User Name”, “Password” and “Confirm Password” in the field provided then click “Next” to continue.
- Page 13 Step 4 When you click the “Finish” button, the installation process will automatically copying all the necessary files to your system. An “Under Installation, please wait …” icon will appear indicates the files copying process. Step 5 Click “OK” to complete the Auto Installation process. If Windows asks you for the original Windows CD-ROM, insert the CD-ROM and direct Windows to the proper location for the CD-ROM.
-
Page 14: Driver Utility
IV. Driver Utility After the successful installation of the ADSL USB Modem driver, an “ADSL USB Modem Control Panel” icon will appears on the Windows screen. Double click the icon, an ADSL Line Information widows will pop up and shows all the ADSL connection status information.
