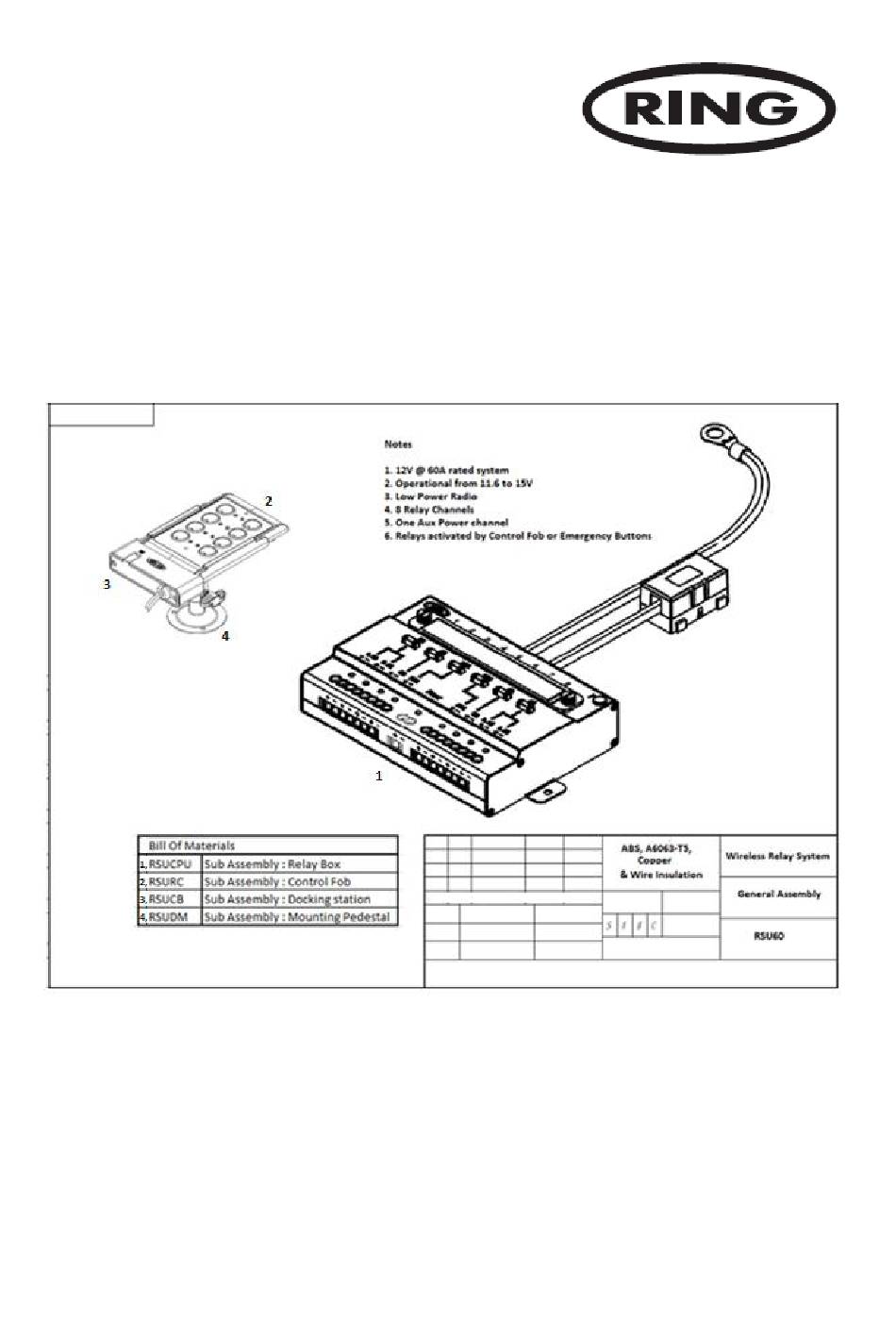

- Page 1 12V Wireless Switching System RSU60 Instructions...
- Page 2 1. Overview The Wireless relay system is a low power radio system, designed to operate with 12 Volt DC systems. This system allows remote control/relay operation of 8 relay channels. These relay channels are fused to allow connections to components of various amperage. The maximum current draw of the system is 60A.
- Page 3 ①Positive ②Negative ③Blade Fuse ④Pair Button ⑤Emergency Switch Cover ⑥Emergency Switch ⑦Mini Fuse ⑧Work Status Indicator ⑨Power/Failure/Pairing Indicator ⑩Mounting Hole Fig 1 RSUCPU, Relay Box...
- Page 4 ①Button operation LED ②Button（Total of 8 Buttons), each button has a LED for Backlight illumination ③Relay Box Status LED（Total of 8 LED） ④Battery Charge indication LED ⑤Charging Input ⑥Battery Cover Fig 2 RSURC, Remote Control Fob ①Red Input Positive ②Black Input Negative ③Fuse ④Power Indicator ⑤Angle adjustment screws...
-
Page 5: Connections And Controls
The maximum current per set of output ports of this product is labelled upon the surface of the relay box. Please see fig 4 for current ratings. Installation of the RSU60 system should be carried out by Proffesional / Qualified personnel only. - Page 6 ①1.5A, Blade Fused ②3.5A, Blade Fused ③5A, Blade Fused ④20A, Blade Fused ⑤1.5A, Built in self resetting fuse ⑥20A, Blade Fused ⑦5A, Blade Fused ⑧3.5A, Blade Fused ⑨1.5A, Blade Fused Fig 4 RSUCPU Relay Control Box 3.2 RSUCB, Docking station The purpose of the docking station two fold.
- Page 7 Remote Control Fob allows the user to control one Relay channel on the Relay box. The Remote Control Fob requires a Lithium Ion AAA battery* (supplied with the RSU60 System), in order to operate when not connected/placed in the Docking Station. The battery is installed into the Remote control Fob, via the back access panel (this is located near the micro USB and is retained in position by two screws).
-
Page 8: Operation Of System
4. Operation of System Once RSU60 has been installed. System can be operated using the Remote Control Fob. The Remote Control Fob can be operated when placed in the docking station or out of the docking station (provided the battery is installed). When a push button on the Remote Control Fob is pressed. The following items will be observed. -
Page 9: Additional Features
5. Additional Features 5.1 RSURC, Remote Control Fob, Sleep Mode The Remote Control Fob, has a built in sleep mode function, which becomes active when the Fob is not placed in the Docking Station. The Remote Control Fob will continue to display which Relay Channels are active on the Relay box, but if no user activity is detected in a 5 minute period the Fob will go into sleep mode. - Page 10 Fig 6 Icon / Decal Sheet Fig 7 Example showing Icons / Decals affixed to Control fob Fig 8 Example showing Overlay attached to control fob...
