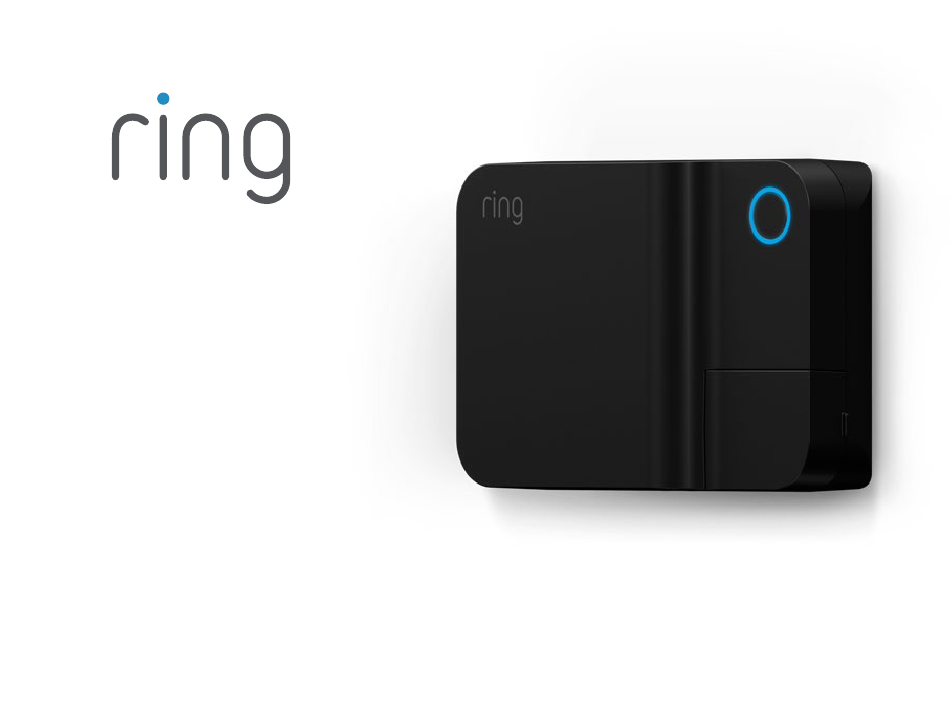

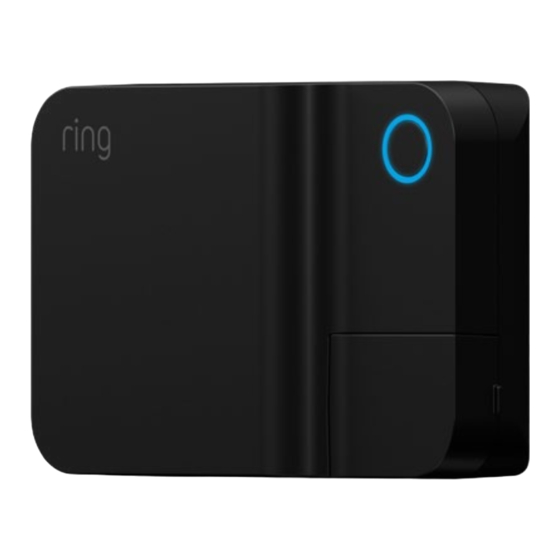

- Page 1 Transformer Smart Lighting...
- Page 2 If you are not comfortable or are inexperienced with the processes and tools described in this manual, we recommend that Transformer must be installed greater than 1 foot above ground level. you hire a licensed electrician.
- Page 3 1. Set up your Transformer. Set up your Ring Bridge. The Bridge connects your Ring Transformer to the Ring app and Download the Ring app. other compatible Ring devices. The app walks you through setting up and To set up your Bridge, managing your Ring Transformer.
- Page 4 Choose a location. Insert the top screws. You’ll have to plug in your Transformer, so the Drive the top screws first, leaving 1/8” of space best place for it is near an outlet (make sure it’s between the mounting surface and screw heads.
- Page 5 2. Install lights and wiring. Mount your Transformer. Align the Transformer with the top screws. Slide it down over the screws to lock it into place. Choose a cable. Then drive the bottom screw to secure your Transformer to the mounting surface.
- Page 6 Calculate the total fixture wattage. Wire Length * Ensure the total fixture wattage does not exceed the 0-50 Feet 51-100 Feet 101-150 Feet maximum wattage load of the Transformer. 0-50 16 AWG 16 AWG 14 AWG Watts To get the total wattage, add up the wattage of each...
- Page 7 Open the Transformer door. Connect cable to Transformer. Lift and hold the door Split and strip the cable. open to access the Flip open the terminals, and feed one of the wires terminals. through the rubber grommet into the Common terminal...
-
Page 8: Complete Installation
3. Complete installation. Run cable to fixtures. Starting at the Transformer, run the cable to each light fixture, leaving about 12” of cable after the last fixture. Plug in your Transformer. Leave a little extra cable at each fixture in case you have to adjust their Your Transformer must be location. - Page 9 Once plugged in, the light around the button on the In the app, tap Set Up a Device. front of your Transformer will flash blue. That means When prompted, select Smart Lighting and follow it’s ready to pair with the Ring app! the in-app instructions.
- Page 10 What about that Reset button? Now that setup is complete, you can hide the low You probably won’t need it, but if your Transformer voltage cable (if updating an existing system, you’ve is plugged in and the light around the button on the probably already done that - ignore this part).
- Page 11 For a list of all our customer support numbers, visit: ring.com/callus To review your warranty coverage, please visit www.ring.com/warranty. Patents: www.ring.com/patents © 2019 Ring LLC or its affiliates. Ring, Alexa, Always Home, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Last updated: 03/08/19...
