Summary of Contents for Batmatic CR5560

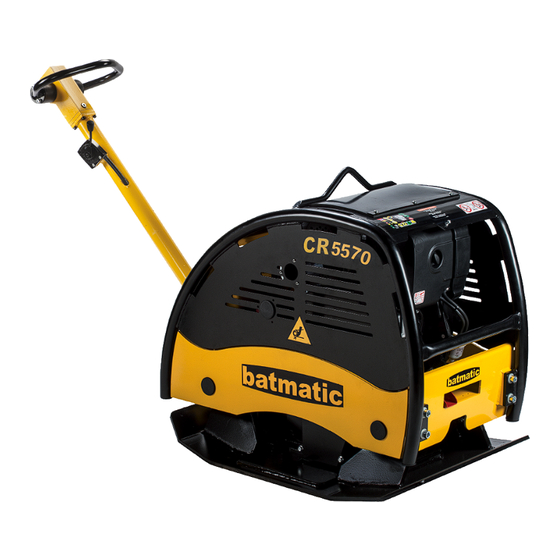

- Page 1 CR5560 / CR5570 / CR5585 PLATE COMPACTOR...
- Page 2 CR5560 / CR5570 / CR5585 - 2 -...
- Page 3 CR5560 / CR5570 / CR5585 FOREWORD We thank You to have chosen a Batmatic plate compactor. Your new machine is a useful and safety job’s tool. Observing the safety regulations and the instructions in this book, there will not be any physical injury and the plate will be always in good condition.
-
Page 4: Table Of Contents
CR5560 / CR5570 / CR5585 TABLE OF CONTENTS SAFETY INSTRUCTIONS FOR PLATE COMPACTORS..............5 GENERAL INSTRUCTIONS........................5 OPERATION..............................5 SAFETY............................... 5 TRANSPORT............................... 6 MAINTENANCE............................6 PERIODIC MAINTENANCE......................... 6 TECHNICAL DATA.......................... 7 SOUND MEASUREMENTS......................... 7 VIBRATION MEASUREMENTS........................7 DIMENSIONS............................... 8 CLIMBING ABILITY......................... 9 FUNCTION............................ -
Page 5: Safety Instructions For Plate Compactors
CR5560 / CR5570 / CR5585 SAFETY INSTRUCTIONS FOR PLATE COMPACTORS GENERAL INSTRUCTIONS Plate compactors must only be operated by person who: is at least 18 years old; is physically and mentally fit for this job; may be expected to carry out the job he’s charged with carefully. -
Page 6: Transport
Do not alterate the operation devices of the plate compactor. Do not change the engine rpm. WARNING Modifications in this machine are subject to the express approval of Batmatic which in case of non observance will refuse all liabilities. Check the compactor when the engine is switched off. -
Page 7: Technical Data
CR5560 / CR5570 / CR5585 TECHNICAL DATA CR5570 CR5585 Item CR5560 Operating weight 400 kg Size of base plate (W x L) 600 x 955 mm 700 x 955 mm 850 x 955 mm Frequency 70 Hz Power transmission Centrifugal clutch - Belt... -
Page 8: Dimensions
CR5560 / CR5570 / CR5585 DIMENSIONS - 8 -... -
Page 9: Climbing Ability
CR5560 / CR5570 / CR5585 CLIMBING ABILITY FUNCTION The vibration required for tamping is produced by the exciter which is on the compacting plate. The engine starts the exciter and the torque is transmitted by the centrifugal clutch and by the belt. -
Page 10: Operation
CR5560 / CR5570 / CR5585 OPERATION TO CHECK BEFORE STARTING Engine oil level Check oil level using the proper dipstick. If it is necessary refill with SAE 15 W 40 oil. Air filter Check if air filter is clean and in good condition. If it is necessary clean or replace it. -
Page 11: Engine Oil
CR5560 / CR5570 / CR5585 ENGINE OIL Check oil level using the proper dipstick, if necessary refill with SAE 15 W 40 oil. Oil change Drain oil at warm engine. Refill with SAE 15W40 oil. WARNING Only use oil with characteristics advised to the manufacturer engine (see engine book). -
Page 12: Lubrificants
CR5560 / CR5570 / CR5585 LUBRIFICANTS Modello Quantità Tipo Pontonic FDL Exciter CR 55 0,80 kg 75W90 Pump CR 55 0,20 kg See engine Engine All models SAE 15W40 instructions ENGINE / EXCITER REVS MODEL ENGINE EXCITER CR55 (2800 – 3000)* 4150 –... -
Page 13: Maintenance
CR5560 / CR5570 / CR5585 MAINTENANCE PARTS MAINTENANCE INTERVAL Air filter Check filter, clean or replace if it is necessary Check filter oil level (only oil bath models) Fuel tank Check fuel tank and fuel cap lid. If necessary replace. -
Page 14: Troubleshooting
CR5560 / CR5570 / CR5585 TROUBLESHOOTING TROUBLE POSSIBLE CAUSE SOLUTION Top the oil until the level. Move Low oil level. Check the oil level the command lever for several Reduced speed or not forward in the hydraulic pump located in... -
Page 15: Exploded Views
CR5560 / CR5570 / CR5585 EXPLODED VIEWS CENTRIFUGAL CLUTCH POS DESCRIPTION PART. NO Q.TY HOUSING BALL BEARING SEEGER SEEGER WASHER CENTRIFUGAL FLY WEIGHT CLUTCH LINING 151995 SPRING COVER DISK SCREW PULLEY CENTRIFUGAL FLY WEIGHT COVER PLATE SCREW - 15 -... - Page 16 CR5560 / CR5570 / CR5585 PUMP - 16 -...
- Page 17 CR5560 / CR5570 / CR5585 PUMP PART NO. DESCRIPTION Q.TY 530001 PISTON 132057 LIP PACKING SD.32X40X5.8 530000 PUMP HOUSING 132079 PLOUGH SA 32 SCRAPING 132090 GUIDE RING FI.32 151137 NIPPLE 1/4" 151209 COPPER WASHER 1/4" 151093 FORK D8 151138 STRAIN BOLT M8X40...
- Page 18 CR5560 / CR5570 / CR5585 HANDLE - 18 -...
- Page 19 CR5560 / CR5570 / CR5585 HANDLE PART NO. DESCRIPTION Q.TY 530035 PUMP CRANCK 530029 LEVER HANDLE PIN 530034 CONTROL PUMP LEVER 530037 PUMP CONNECTING ROD 530262 HANDLE SHOCKMOUNT CONNECTION 570014 HANDLE SHOCKMOUNT D 132011 O RING 6162 530008 PUMP 151978...
- Page 20 CR5560 / CR5570 / CR5585 EXCITER - 20 -...
- Page 21 CR5560 / CR5570 / CR5585 EXCITER PART NO. DESCRIPTION Q.TY 530249 EXCITER HOUSING 151137 NIPPLE 1/4" 530127 CONDUCTED SHAFT 530914 CONDUCTOR GEAR 530265 CONDUCTED GEAR 530275 EXCITER CYLINDER 530277 EXCITER COVER 152010 TRIPPING PIN 6325 8x60 530137 ECCENTRIC WEIGHT 530875 EXCITER CLUTCH CON.
- Page 22 CR5560 / CR5570 / CR5585 BASE PLATE - 22 -...
- Page 23 CR5560 / CR5570 / CR5585 BASE PLATE PART NO. DESCRIPTION Q.TY 530082 BASE PLATE L=600 530435 EXCITER 530154 PUFFER Ø 40 / Ø 25 L= 70 530063 COVERING PLATE 151956 SCREW TCEI M16x160 10.9 UNI 5931 151955 SCREW TCEI M16x 90 10.9 UNI 5931...
- Page 24 CR5560 / CR5570 / CR5585 ROLLBAR - 24 -...
- Page 25 CR5560 / CR5570 / CR5585 ROLLBAR PART NO. DESCRIPTION Q.TY 530218 ROLLBAR 530219 RIGHT ROLLBAR PANEL 530202 RUBBER FIXING BOX 530120 RUBBER COVER 151908 BOLT, M6X20-4T 151198 WASHER M 6 UNI 6592 ZN 131989 SHOCKMOUNT PM 30X20 M8X16 60 SH...
- Page 26 CR5560 / CR5570 / CR5585 ENGINE SUPPORT - 26 -...
- Page 27 CR5560 / CR5570 / CR5585 ENGINE SUPPORT PART NO. DESCRIPTION Q.TY 530047 ENGINE SUPPORT 530093 ENGINE SPACE 132080 SHOCKMOUNT MF D 60x40 M12x40 60 SH 131804 HANDLE GRIP D40 M10x20 530062 ADJUST WIRE 151200 WASHER M10 UNI 6592 ZN 151085...
- Page 28 CR5560 / CR5570 / CR5585 VIBRATORY PLATE - 28 -...
- Page 29 CR5560 / CR5570 / CR5585 VIBRATORY PLATE PART NO. DESCRIPTION Q.TY 530043 COMPLETE ROLLBAR 530033 CONPLETE HANDLE ----- STARTER CRANK HATZ 132260 PROTECTIVE HEAR STICKER 132189 HOOK STICKER 132262 FUEL STICKER 132286 GAS HANDLE STICKER 131014 CE NAME PLATE 151835...
-
Page 30: Warranty
WARRANTY Your new BATMATIC Plate Compactor is warranted to the original purchaser for a period of one year (12 months) from the original date of purchase. The BATMATIC warranty is against defects in design, materials and workmanship. The following are not covered under the BATMATIC warranty: 1. -
Page 31: Ec Declaration Of Conformity
CR5560 / CR5570 / CR5585 batmatic EC DECLARATION OF CONFORMITY Batmatic srl Via romitaggio 31 43010 Bianconese di Fontevivo (Parma) - Italia HOLDER OF TECHNICAL DOCUMENTATION SHOWED DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE PRODUCT Type Reversible Plate Compactors Model...
