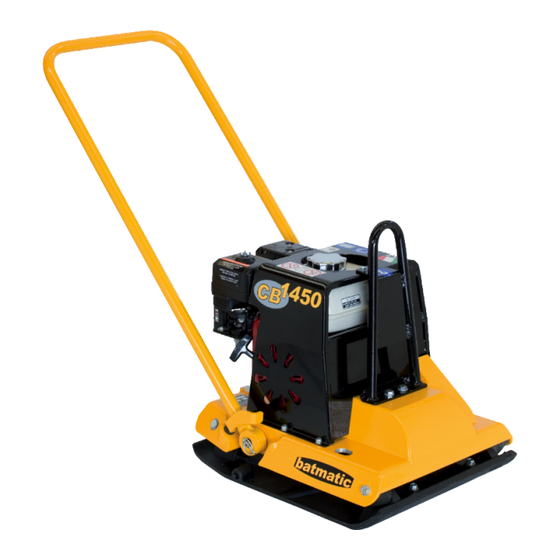

Batmatic CBH1450 Instruction Manual

Forward plate compactor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FORWARD
PLATE COMPACTOR MOD.
CBH1450 – CBR1450

Advertisement

Table of Contents
loading

Related Manuals for Batmatic CBH1450

Summary of Contents for Batmatic CBH1450

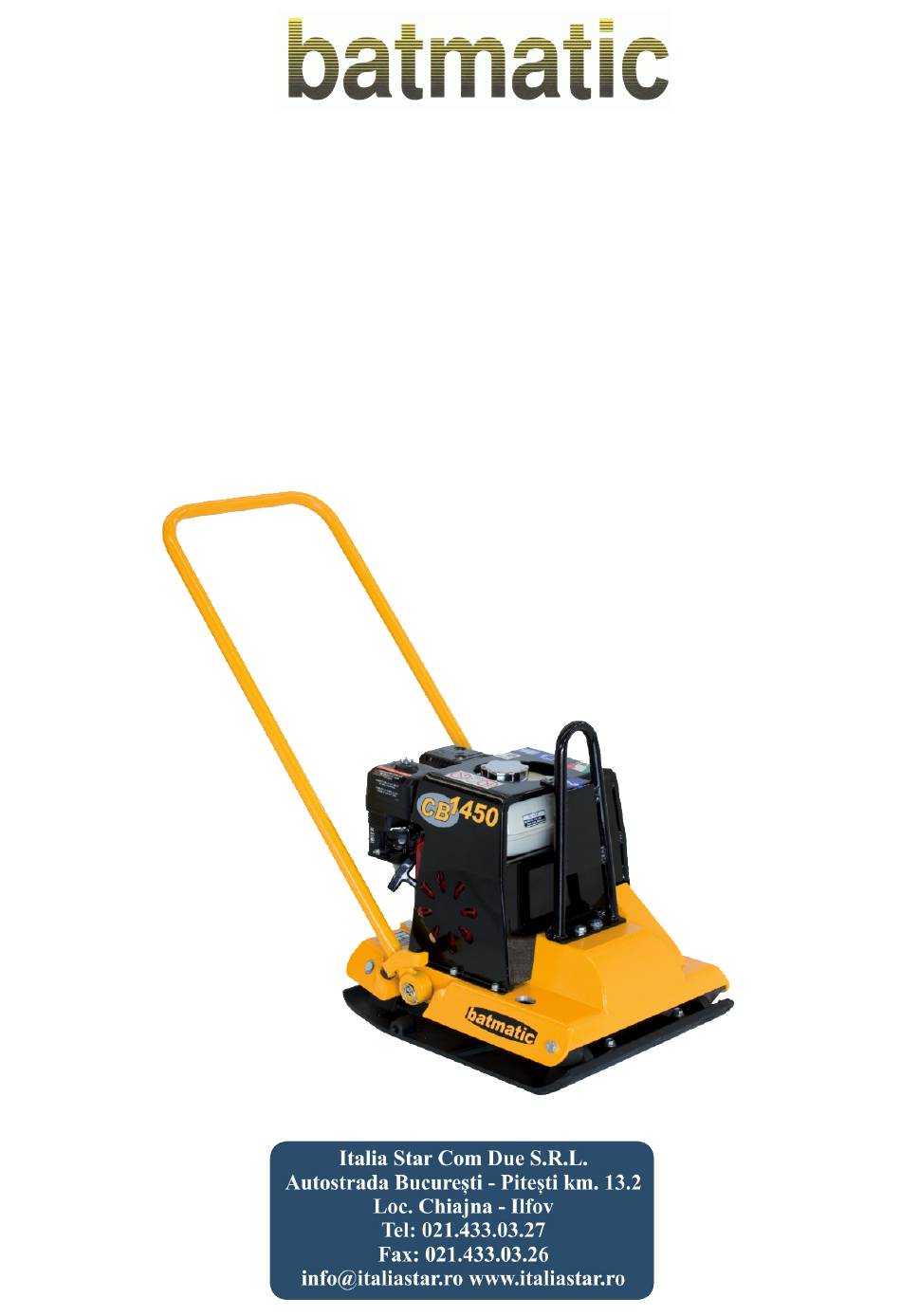

  • Page 1 FORWARD PLATE COMPACTOR MOD. CBH1450 – CBR1450...
  • Page 2 FOREWORD We thank You to choose a BATMATIC plate compactor. Your new machine is an useful and safety job’s tool. Observing the safety regulations and the instructions in this book there will not be physical injury and the plate will be always in good condition.

  • Page 3: Table Of Contents

    CB1450 June 2008 R03 INDEX SAFETY INSTRUCTIONS FOR PLATE COMPACTORS............... 4 SAFETY............................4 TRANSPORT AND LIFTING....................... 4 MAINTENANCE ......................... 5 PERIODIC MAINTENANCE......................5 FIRE ............................5 RESIDUAL RISK ........................5 CLIMBING ABILITY ........................6 FUNCTION ............................. 6 APPLICATIONS ..........................6 CHECKS BEFORE STARTING ....................

  • Page 4: Safety Instructions For Plate Compactors

    CB1450 June 2008 R03 SAFETY INSTRUCTIONS FOR PLATE COMPACTORS SAFETY • Plate compactors must only be operated by person who: ∗ is at least 18 years old; ∗ is physically and mentally fit for this job; ∗ may be expected to carry out the job he’s charged with carefully.

  • Page 5: Maintenance

    Do not turn the engine on without air filter. WARNING Modifications in this machine are subject to the express approval of BATMATIC which in case of non observance will refuse all liabilities and all warranties. • Do not make maintenance operations when machine is running or when engine is on.

  • Page 6: Climbing Ability

    CB1450 June 2008 R03 CLIMBING ABILITY FUNCTION The vibration required for tamping is produced by the exciter which is on the compacting plate. The engine starts the exciter and the torque is transmitted by the centrifugal clutch and by the belt.

  • Page 7: Checks Before Starting

    CB1450 June 2008 R03 OPERATION CHECKS BEFORE STARTING • Before start using compactor, carefully read instruction manual. • Engine oil level Check oil level using the proper dipstick. If necessary refill with SAE 15 W 40 oil. • Air filter Check that air filter is clean and in good condition.

  • Page 8: Air Filter (Dry)

    CB1450 June 2008 R03 AIR FILTER (DRY) WARNING Clean air filter daily in order to avoid engine damages. • Open air cleaner and remove element. • Lightly and repeatedly tap the element on a hard surface to eliminate all excess dirt.

  • Page 9: Maintenance

    CB1450 June 2008 R03 MAINTENANCE PARTS MAINTENANCE INTERVAL Air filter Check filter, clean or replace if necessary daily Check filter oil level (only oil bath models) Fuel tank Check fuel tank and fuel cap lid. If necessary replace. Engine...

  • Page 10: Trouble, Cause, Solution

    CB1450 June 2008 R03 TROUBLE, CAUSE, SOLUTION TROUBLE POSSIBLE CAUSE SOLUTION The transmission belt is broken Replace the belt The engine works properly The wear and tear has but the machine does not caused the belt to loosen up...

  • Page 11: Lubrificants

    CB1450 June 2008 R03 LUBRIFICANTS Model Quantity Type CP 6-7-9 0,2 kg SAE 15 W 40 Exciter CP 13-15-17 0,5 kg CB1450 – CD1450 0,2 kg Pontonic FDL 75W90 See engine Engine All models SAE 15W40 instructions ENGINE / EXCITER REVS...

  • Page 12: Technical Data

    CB1450 June 2008 R03 TECHNICAL DATA Item CBR1450 CBH1450 Dimensions base plate (Width x Length) mm 500 x 580 Operating weight kg 90 Working speed m/min 25 Max climbing ability Frequency 90 Hz Centrifugal force 15,99 kN Transmission Centrifugal clutch / Belt...

  • Page 13: Exploded View

    CB1450 June 2008 R03 EXPLODED VIEW EXCITER CB1450 CODE DESCRIPTION Q.TY 560428 EXCITER COVER CP6/7/9 560427 EXCITER COVER CP6/7/9 560432 EXCITER SHAFT CP7/9 - CDB1450 131760 DOUBLE LIP SEAL 40x62x7 151969 ROLLER BEARING NJ 208 E.TVP2.C4 151302 SCREW TCEI M 6x 30 8.8 UNI 5931...
  • Page 14 CB1450 June 2008 R03 BASE PLATE CB1450 - 14 -...
  • Page 15 CB1450 June 2008 R03 BASE PLATE CB1450 CODE DESCRIPTION Q.TY 560471 BASE PLATE CDB 1450 560472 EXCITER CP7/9 - CDB 1450 131998 SHOCKMOUNT MF D 50X50 M10X25 50-55 SH 151951 SCREW TCEI M14x 70 10.9 UNI 5931 151117 WASHER. M14 NORD LOCK...
  • Page 16 CB1450 June 2008 R03 ENGINE SUPPORT CB1450 - 16 -...
  • Page 17 CB1450 June 2008 R03 ENGINE SUPPORT CB1450 CODE DESCRIPTION Q.TY 560021 ENGINE SUPPORT CBD1450 152262 CENTRIFUGAL CLUTCH 19,05 X CBH1450 560442 CLUTCH COVER DISK D142 560443 CLUTCH GAGE D98 560468 SCREW 131999 SHOCKMOUNT MF D25X15 M6X18 60 SH 560333 SHOCKMOUNT D.43 60SH...
  • Page 18 CB1450 June 2008 R03 VIBRATORY PLATE CB1450 - 18 -...
  • Page 19 CODE DESCRIPTION Q.TY ----- BASE PLATE WITH EXCITER FOR CBD1450 ----- SUPPORT OF ENGINE WITH ENGINE FOR CBH1450 ----- SUPPORT OF ENGINE WITH ENGINE FOR CBR1450 132055 V BELT HFX SEZ. XPA 832 151836 SCREW TE M10x20 8.8 UNI 5739 ZN...
  • Page 20 CB1450 June 2008 R03 WATER TANK CB1450 CODE DESCRIPTION Q.TY 132250 WATER TANK 14 L. 152276 152114 CLAMP M12 D.12-20 ZNT 132254 WATER TANK 14 L. CAP 560481 PIPE CDB1450 151203 WASHER M20 UNI 6592 ZN 560175 NUT GAS 3/8 H15 CH 27 ZN...
  • Page 21 CB1450 June 2008 R03 WHEEL CODE DESCRIPTION Q.TY 530208 WHEEL PIN CR11/20 131214 PNEUMATIC WHEEL 2,50-4 151219 SEEGER E. 20 UNI 7435 151203 WASHER M20 UNI 6592 ZN VULKOLLAN PAD CODE DESCRIPTION Q.TY 360311 PAD SHEET CDB1450 560349 PAD BRACKET CDB1450 560350 PAD BRACKET CDB1450 FIL.ZN.
  • Page 22 CB1450 June 2008 R03 FOLDING HANDLE CODE DESCRIPTION Q.TY 560041 FOLDING HANDLE CB1450 132230 HANDLE GRIP 1052/FP D50 M10 [The exploded drawings are prepared for the explanation purpose, and the parts may not appear exactly as illustrated] - 22 -...

  • Page 23: Warranty

    June 2008 R03 WARRANTY Your new BATMATIC Plate Compactor is warranted to the original purchaser for a period of one year (12 months) from the original date of purchase. The BATMATIC warranty is against defects in design, materials and workmanship.
  • Page 24 43010 Bianconese di Fontevivo (Parma) - Italia HOLDER OF TECHNICAL DOCUMENTATION SHOWED DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE PRODUCT Type Forward Plate Compactor Model ( ) CBH1450 Net installed power kW 3,6 Model ( ) CBR1450 Net installed power...
  • Page 25 CB1450 June 2008 R03 - 25 -...
  • Page 26 CB1450 June 2008 R03 - 26 -...
  • Page 27 CB1450 June 2008 R03 - 27 -...
