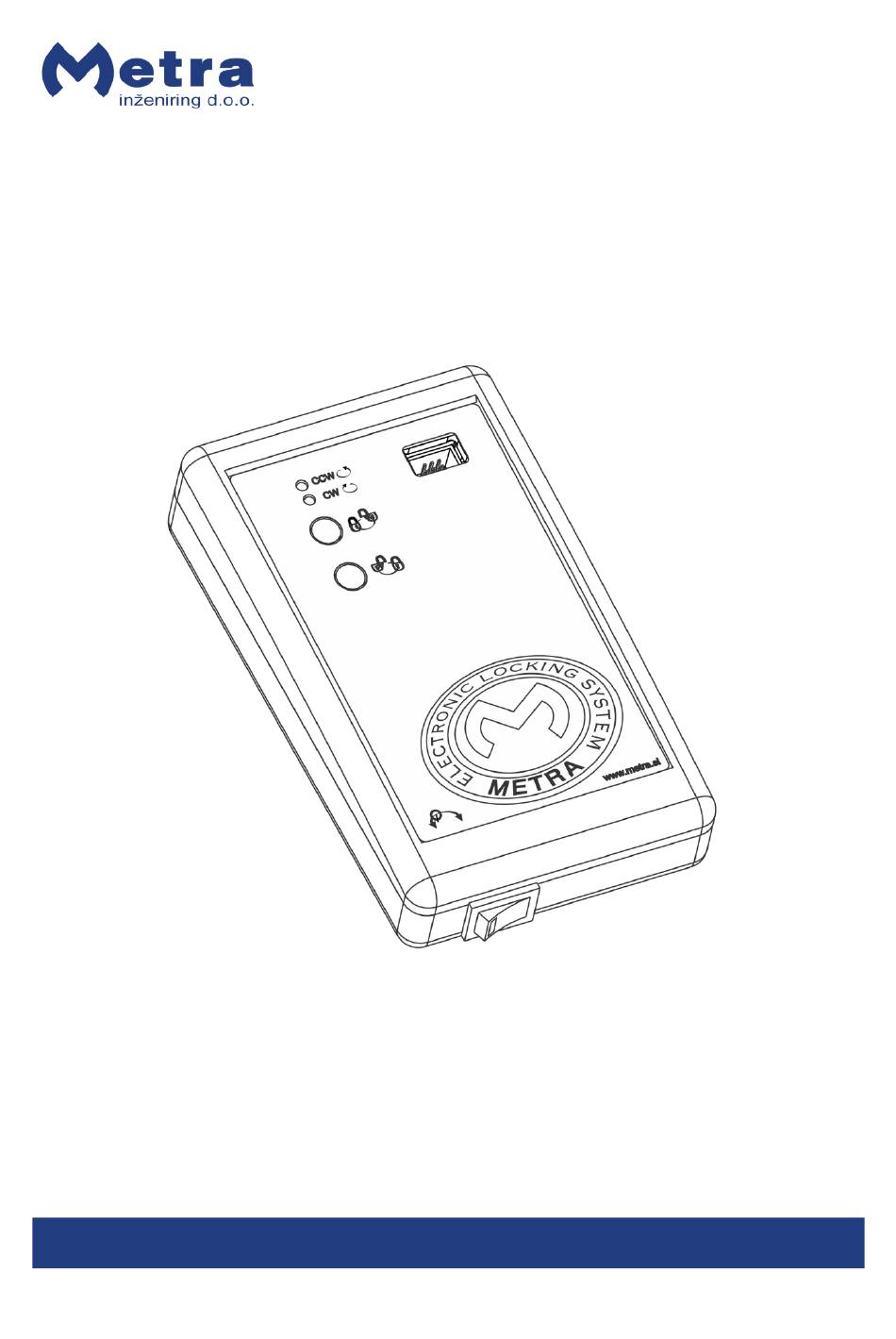

- Page 1 Electronic Lock RFID Battery Tester User Manual...
- Page 2 Electronic Lock RFID Battery Tester User Manual Table of contents Electronic Lock RFID Battery Tester User Manual ................... 3 Product description ..........................3 Basic Parts ............................4 User Interface............................4 Operating indicator ..........................5 Electronic Lock Testing ........................5 Replacing Batteries ..........................6 Technical data .............................
- Page 3 SI-1236 Trzin, Slovenia System: Metra ELS – Electronic Locking System Product Group: Electronic Lock Tester MTLTB02 Types: Year of Construction: 2014 The Metra ELS products have been developed, designed and Declaration of Conformity: manufactured in accordance with the EU directive for Electromagnetic Compatibility (2004/108/EC).
- Page 4 Electronic Lock RFID Battery Tester User Manual Basic Parts description description Counter clockwise signal Counter clockwise button Clockwise signal ON / OFF switch with OPERATE signal Counter clockwise button 6 pole Electronic Lock connector User Interface Electronic Lock Battery Tester user interface uses optical signals (#1, #2 and #5) to inform the user about operation progress.
- Page 5 Electronic Lock RFID Battery Tester User Manual CLOCKWISE (CW) signal (green) state description Lock build-it motor is rotating counter clockwise OPERATE signal (green) state description Device is turned ON Operating indicator When the device is running a green OPERATE signal light is ON. ...
- Page 6 Electronic Lock RFID Battery Tester User Manual Rotating motor left/right Close the locker door and hold them closed. Press one of the buttons to rotate motor left or right. To lock the locker you have to hold the button just the right amount of time. With some practice, you should master it.
