Summary of Contents for Metra Electronics MTLTB01

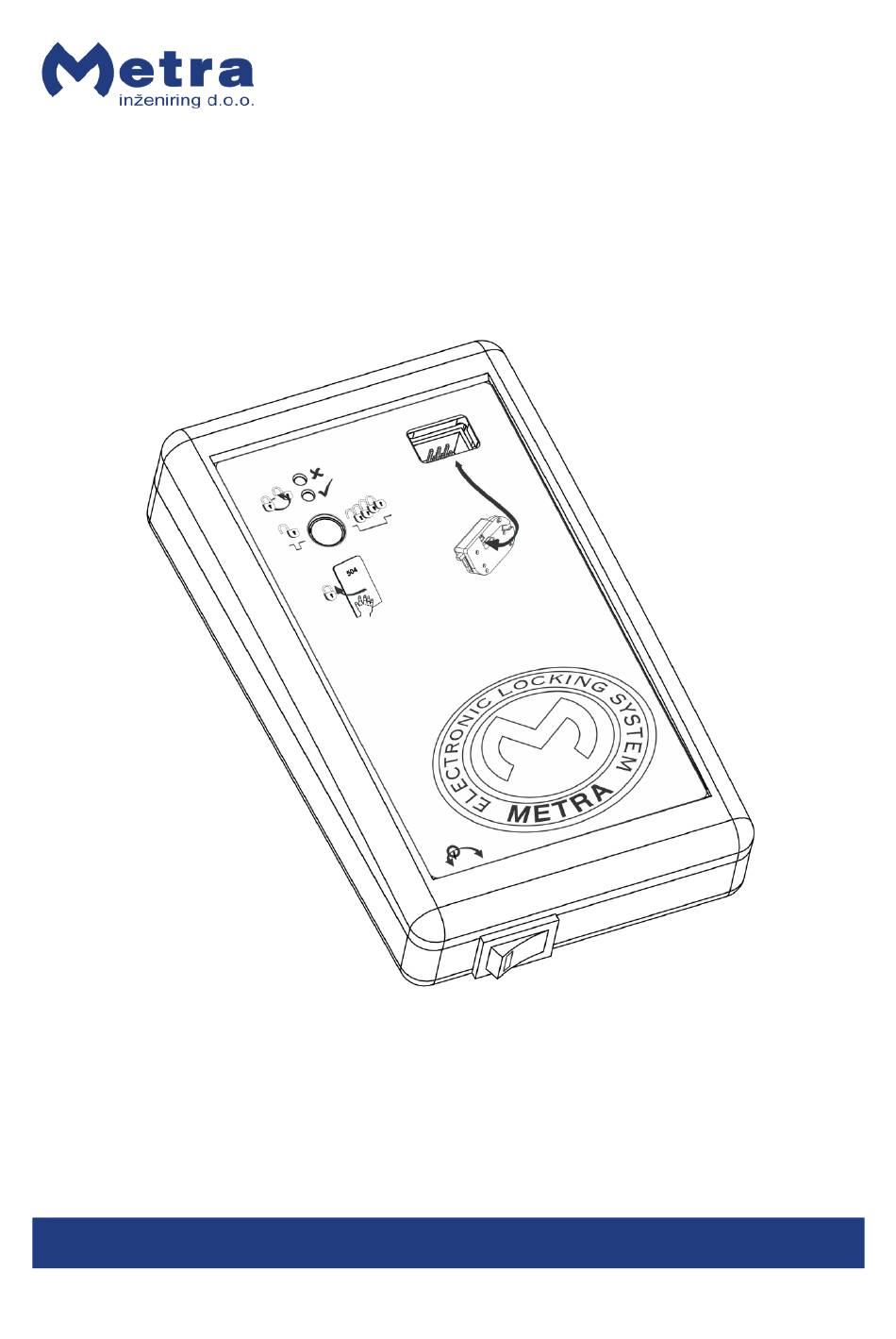

- Page 1 Electronic Lock Battery Tester User Manual...
-
Page 2: Table Of Contents
Electronic Lock Battery Tester User Manual Table of contents Electronic Lock Battery Tester User Manual ................... 3 Product description ..........................3 Basic Parts ............................4 User Interface............................4 Operating indicator ..........................5 Electronic Lock Testing ........................5 Closing Locker ..........................5 Opening Locker (single unlocking operation) ................. -
Page 3: Electronic Lock Battery Tester User Manual
SI-1236 Trzin, Slovenia System: Metra ELS – Electronic Locking System Product Group: Electronic Lock Tester MTLTB01 Types: Year of Construction: 2008 The Metra ELS products have been developed, designed and Declaration of Conformity: manufactured in accordance with the EU directive for Electromagnetic Compatibility (2004/108/EC). -
Page 4: Basic Parts
Electronic Lock Battery Tester User Manual Basic Parts description description NO signal 6 pole Electronic Lock connector OK signal ON / OFF switch with OPERATE signal Button User Interface Electronic Lock Battery Tester user interface uses optical signals (#1, #2 and #5) to inform the user about operation progress. -
Page 5: Operating Indicator
Electronic Lock Battery Tester User Manual Operating indicator When the device is running a green OPERATE signal light is ON. Electronic Lock Testing Turn ON the device Connect the 6 pole flat cable from the Electric Locker to the device. -
Page 6: Opening Locker (Single Unlocking Operation)
Electronic Lock Battery Tester User Manual Opening Locker (single unlocking operation) Press the button to open the Locker Door. If operation is successful “OK” optical signal turns on for 3 seconds. NOTE If Locker door does not open – operation fails and “NO” signal lights up for 3 seconds. -
Page 7: Technical Data
Electronic Lock Battery Tester User Manual Replace all 1,5V AA batteries. Pay attention on battery orientation. CAUTION Use only 1,5V Alkaline or Ni-Mh batteries to avoid battery leaks. Technical data Operating voltage 6 V DC – four 1.5V AA batteries Current consumption 0.05 A standby / 1.2 A max Operating temperature range...
