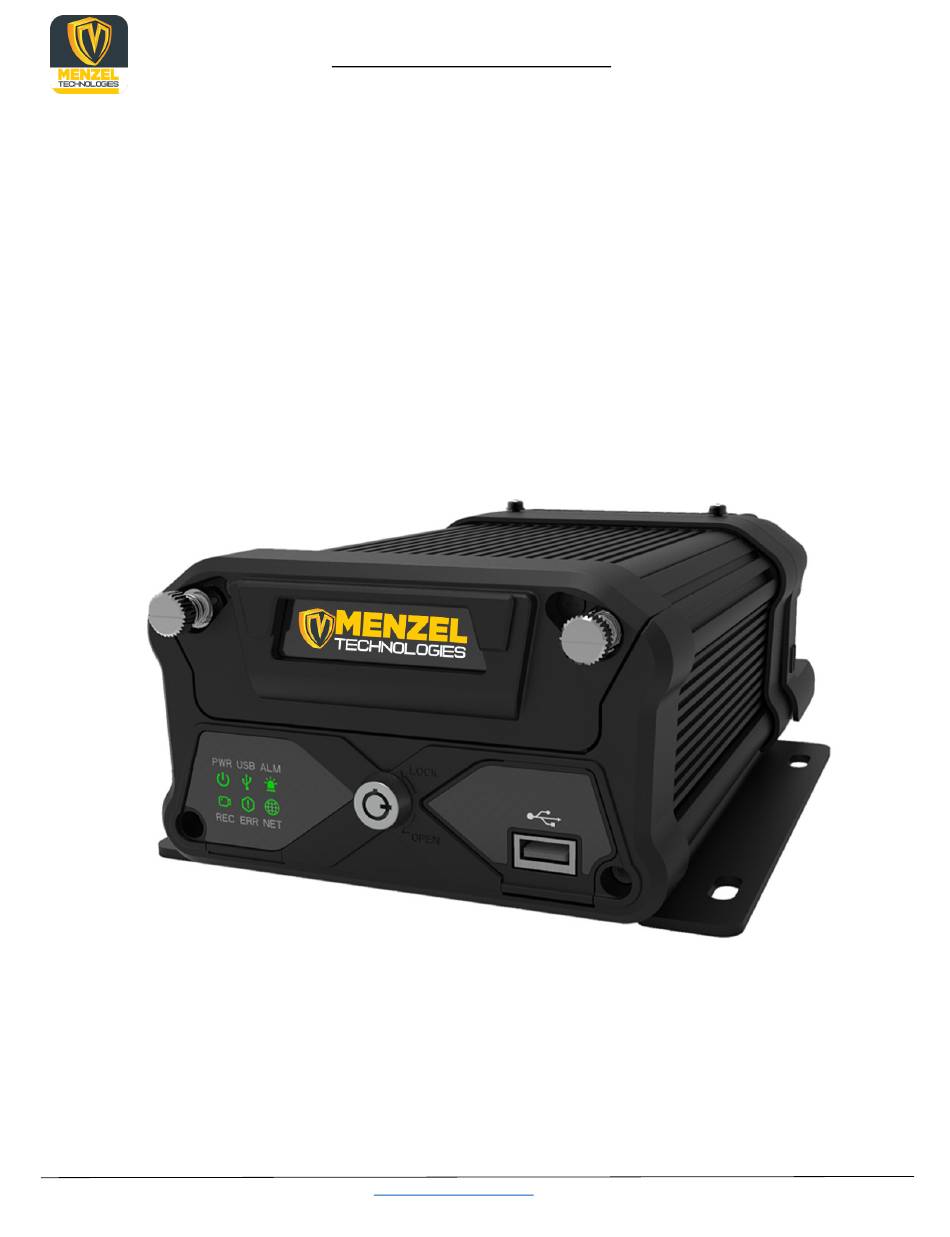

- Page 1 User Manual for MZ3H-6AHD-2IPC User Manual For Menzel MVSS MZ3H-6AHD-2IPC (MDVR) Mobile Digital Video Recorder Copyright 2019 Menzel MVSS All Rights Reserved www.menzelmvss.com For more information, please visit our website P a g e 1 | 23...
- Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Menzel MVSS (Copyright 2019) www.menzelmvss.com...
-
Page 3: Guarantee & Warnings
User Manual for MZ3H-6AHD-2IPC Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing. -
Page 4: Product Characteristics
User Manual for MZ3H-6AHD-2IPC 1. Product characteristics 1.1. Overview MZ3H-6AHD-2IPC is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. - Page 5 User Manual for MZ3H-6AHD-2IPC 1.2. Specifications Technical Items Technical Indicators Product Model MZ3H-6AHD-2IPC Function Overview Preview, Recording, Playback, Network, Locating Operating System Linux System Control Mode CP4, mouse, Easy Check, network(3G/4G/WIFI) Input AHD*6+IPC*2+AI kit Output 2 CH (CP4+VGA) 6x720P@15fps+2x1080P@30fps Video...
- Page 6 User Manual for MZ3H-6AHD-2IPC PAL: 1080P(1920X1080), 720P(1280X720), WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576), HD1(704x288), CIF(352x288) NTSC: Image Resolution 1080P(1920X1080), 720P(1280X720), WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480), HD1(704x240),CIF(352x240); Digital: 1080P(1920X1080), 720P(1280X720) Image Quality 8 Levels adjustable (Level 1 is the best) Schedule/Alarm (sensor trigger, speed, acceleration,...
- Page 7 User Manual for MZ3H-6AHD-2IPC 1 x2.5"SATA HDD or SSD, thickness 7mm/9.5mm/15mm, support hard disk HDD/SSD heating Storage Support SDXC 32GB/64GB/128GB/256GB, plug and play 1 x USB2.0(Type A) + 1 x USB2.0(Type B), hot swap 1 x SD slot 1 x SIM slot...
- Page 8 User Manual for MZ3H-6AHD-2IPC 1.3. External interface Dimension (Unit: mm) Front panel www.menzelmvss.com For more information, please visit our website P a g e 8 | 23...
- Page 9 User Manual for MZ3H-6AHD-2IPC Rear panel Serial No. Print Description A/V IN1~6 Analog audio/video input 1~6 IPC1~2 IPC A/V input 1~2 VGA video interface Mbps network interface USB 2.0 interface (Type B) 3G/4G antenna interface GPS antenna interface WIFI antenna interface Sensor &...
- Page 10 User Manual for MZ3H-6AHD-2IPC 1.4. System diagram www.menzelmvss.com For more information, please visit our website P a g e 10 | 23...
-
Page 11: Hard Disk Installation
User Manual for MZ3H-6AHD-2IPC 1.5. Hard disk installation The procedure to install the hard disk of 9.5mm/7.5mm The procedure to install the hard disk of 15mm To install the hard disk of 15mm, user needs to disassemble the brackets, and then insert it. - Page 12 User Manual for MZ3H-6AHD-2IPC 1.6. Definition and pictures of external cables Serial port definition Alarm cable definition www.menzelmvss.com For more information, please visit our website P a g e 12 | 23...
- Page 13 User Manual for MZ3H-6AHD-2IPC Standard accessories Accessories Description Quantity Accessories Description Quantity Vehicle fuses MDVR key (7.5A and 15A) 9 pin aviation power input wire Optional accessories Accessories Description Accessories Description panic panel Wi-Fi to laptop Back up touch screen...
- Page 14 User Manual for MZ3H-6AHD-2IPC www.menzelmvss.com For more information, please visit our website P a g e 14 | 23...
-
Page 15: Desktop Software
User Manual for MZ3H-6AHD-2IPC Desktop Software: www.menzelmvss.com For more information, please visit our website P a g e 15 | 23... - Page 16 User Manual for MZ3H-6AHD-2IPC Apps IOS & Android: www.menzelmvss.com For more information, please visit our website P a g e 16 | 23...
- Page 17 User Manual for MZ3H-6AHD-2IPC 2.FAQ 1) The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
- Page 18 User Manual for MZ3H-6AHD-2IPC 9) GPS anomaly. Check if the GPS antenna is properly installed. There is silkscreen GPS identification on the GPS antenna pedestal on the back of the MDVR device. Check if the antenna connector is blocked and make sure the antenna connector not be covered by other things. Trees block, being inside the tunnel, driving near tall buildings or viaduct, thunderstorms and other environmental effects may also cause to receive no GPS signal or error signal.
- Page 19 User Manual for MZ3H-6AHD-2IPC www.menzelmvss.com For more information, please visit our website P a g e 19 | 23...
- Page 20 User Manual for MZ3H-6AHD-2IPC www.MenzelMVSS.com www.menzelmvss.com For more information, please visit our website P a g e 20 | 23...
-
Page 21: Limited Hardware Warranty
User Manual for MZ3H-6AHD-2IPC LIMITED HARDWARE WARRANTY THIS LIMITED HARDWARE WARRANTY (THE “LIMITED WARRANTY”) GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THE LIMITED WARRANTY CAN ALSO BE FOUND ONLINE AT WWW.MENZELTECH.COM AND/OR IN THE DOCUMENTATION WE PROVIDE WITH THE PRODUCT. -
Page 22: Limitation Of Liability
User Manual for MZ3H-6AHD-2IPC the reloading of software; (l) connectivity, internet, or telephony issues or unavailability; or (m) other actions or events beyond our reasonable control. You are responsible for the proper installation of the product, and we shall have no liability for any claims, damages, defects, or losses caused (in whole or in part) by the faulty or improper installation of the product. - Page 23 User Manual for MZ3H-6AHD-2IPC WHAT CAN YOU DO IN THE CASE OF A DISPUTE WITH US? We want to address your concerns without needing a formal legal case. Before filing a claim against us, you agree to try to resolve the dispute informally by contacting our Customer Service Department at the email address listed above.
