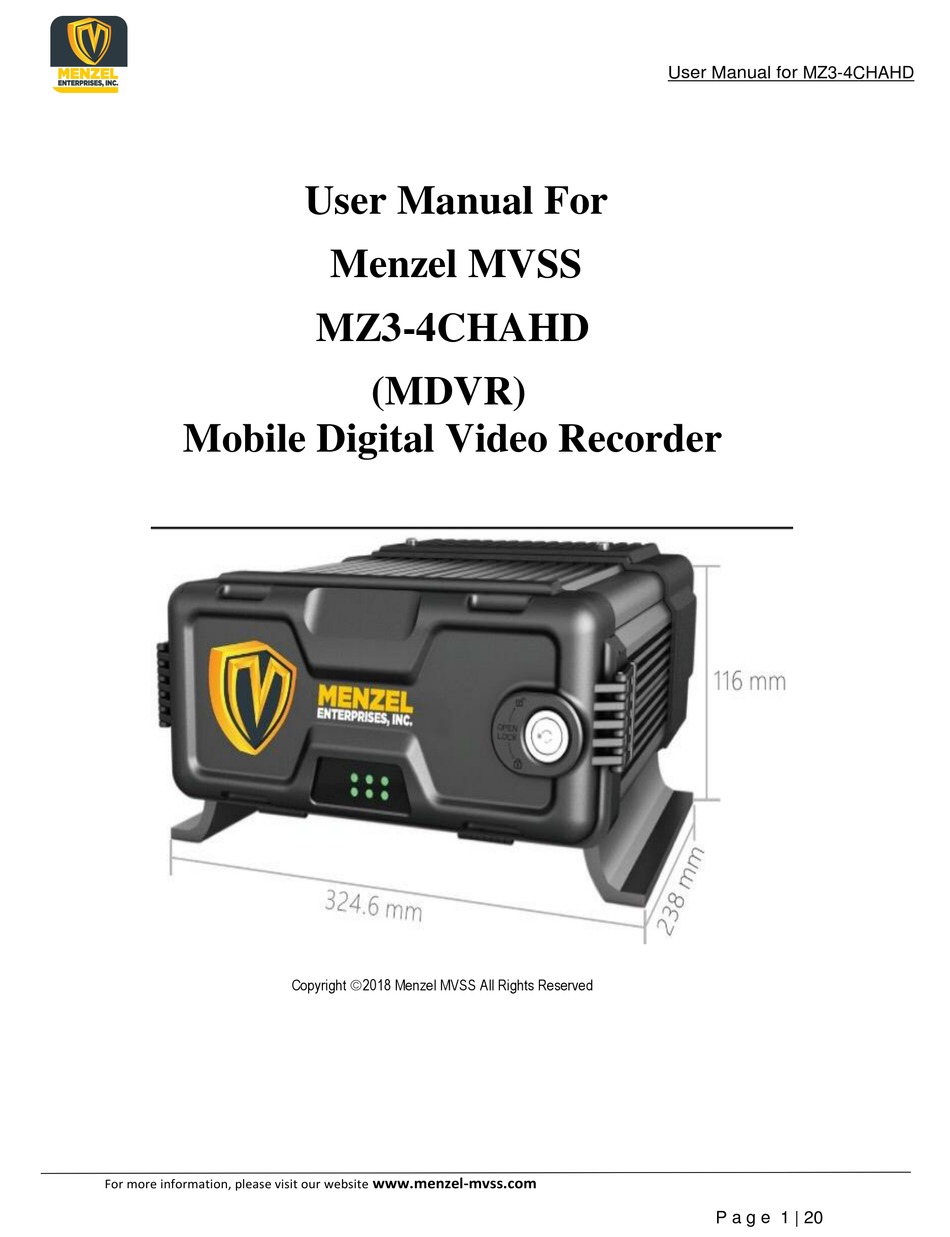

- Page 1 User Manual for MZ3-4CHAHD User Manual For Menzel MVSS MZ3-4CHAHD (MDVR) Mobile Digital Video Recorder Copyright 2018 Menzel MVSS All Rights Reserved www.menzel-mvss.com For more information, please visit our website P a g e 1 | 20...
- Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Menzel MVSS (Copyright 2018) www.menzel-mvss.com...
-
Page 3: Guarantee & Warnings
User Manual for MZ3-4CHAHD Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing. -
Page 4: Product Characteristics
User Manual for MZ3-4CHAHD 1. Product characteristics 1.1. Overview MZ3-4CHAHD is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. -
Page 5: Specifications
User Manual for MZ3-4CHAHD 1.2. Specifications Function Overview Preview, Recording, Playback, Network, Locating Linux 3.0.8 System Control Mode Easy Check, network, CP4, mouse (3G/4G/WIFI) Input 4 channels AHD + 1 channel IPC Output 1 channel PAL: (4x25)FPS 720P(AHD)+1080P@30FPS(IPC) Or (4x12)FPS 1080P(AHD)+1080P@30FPS(IPC) - Page 6 User Manual for MZ3-4CHAHD PAL: 1080P,720P,WD1(928X576),WHD1(928X288), WCIF(464X288),D1(704X576),HD1(704x288), CIF(352x288); NTSC: Image Resolution 1080P,720P,WD1(928X480),WHD1(928X240), WCIF(464X240),D1(704x480),HD1(704x240), CIF(352x240); Recording Digital: 1080P(1920X1080),720P(1280X720) Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Manual/Schedule/Alarm Pre-recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support Playback Channel...
- Page 7 User Manual for MZ3-4CHAHD Sensor 8 inputs, 2 outputs Speed 1 channel pulse speed detection Interface Control panel CP4 optional Inter communication I MIC interface Input DC8-36V, ACC Output 5V@500mA, 12V@500mA Power Max Power Consumption Standby Power ≈0W Consumption Dimension (L × W × H) 255.3 x 150 x 89.1mm...
-
Page 8: External Interface
User Manual for MZ3-4CHAHD 1.3. External interface Dimension (Unit: mm) Front panel www.menzel-mvss.com For more information, please visit our website P a g e 8 | 20... - Page 9 User Manual for MZ3-4CHAHD Rear panel Serial No. Print Description A/V IN1~4 Audio & Video Input 1-4 IPC A/V input USB 2.0 interface 3G/4G/Antenna interface GPS Antenna interface Wi-Fi Antenna interface Serial Serial interface Sensor Sensor interface Panel Control panel (CP4) interface...
-
Page 10: System Diagram
User Manual for MZ3-4CHAHD 1.4. System diagram www.menzel-mvss.com For more information, please visit our website P a g e 10 | 20... - Page 11 User Manual for MZ3-4CHAHD 1.5. Hard disk installation www.menzel-mvss.com For more information, please visit our website P a g e 11 | 20...
- Page 12 User Manual for MZ3-4CHAHD 1.6. Definition and pictures of external cables Serial port definition Alarm cable definition www.menzel-mvss.com For more information, please visit our website P a g e 12 | 20...
- Page 13 User Manual for MZ3-4CHAHD Standard accessories Accessories Description Quantity Accessories Description Quantity Vehicle fuses MDVR key (7.5A and 15A) 9 pin aviation power input wire Optional accessories Accessories Description Accessories Description panic panel Wi-Fi to laptop Back up touch screen...
- Page 14 User Manual for MZ3-4CHAHD www.menzel-mvss.com For more information, please visit our website P a g e 14 | 20...
-
Page 15: Desktop Software
User Manual for MZ3-4CHAHD Desktop Software: www.menzel-mvss.com For more information, please visit our website P a g e 15 | 20... - Page 16 User Manual for MZ3-4CHAHD Apps IOS & Android: www.menzel-mvss.com For more information, please visit our website P a g e 16 | 20...
- Page 17 User Manual for MZ3-4CHAHD 2.FAQ 1) The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
- Page 18 User Manual for MZ3-4CHAHD 9) GPS anomaly. Check if the GPS antenna is properly installed. There is silkscreen GPS identification on the GPS antenna pedestal on the back of the MDVR device. Check if the antenna connector is blocked and make sure the antenna connector not be covered by other things. Trees block, being inside the tunnel, driving near tall buildings or viaduct, thunderstorms and other environmental effects may also cause to receive no GPS signal or error signal.
- Page 19 User Manual for MZ3-4CHAHD www.menzel-mvss.com For more information, please visit our website P a g e 19 | 20...
- Page 20 User Manual for MZ3-4CHAHD www.Menzel-MVSS.com www.menzel-mvss.com For more information, please visit our website P a g e 20 | 20...
