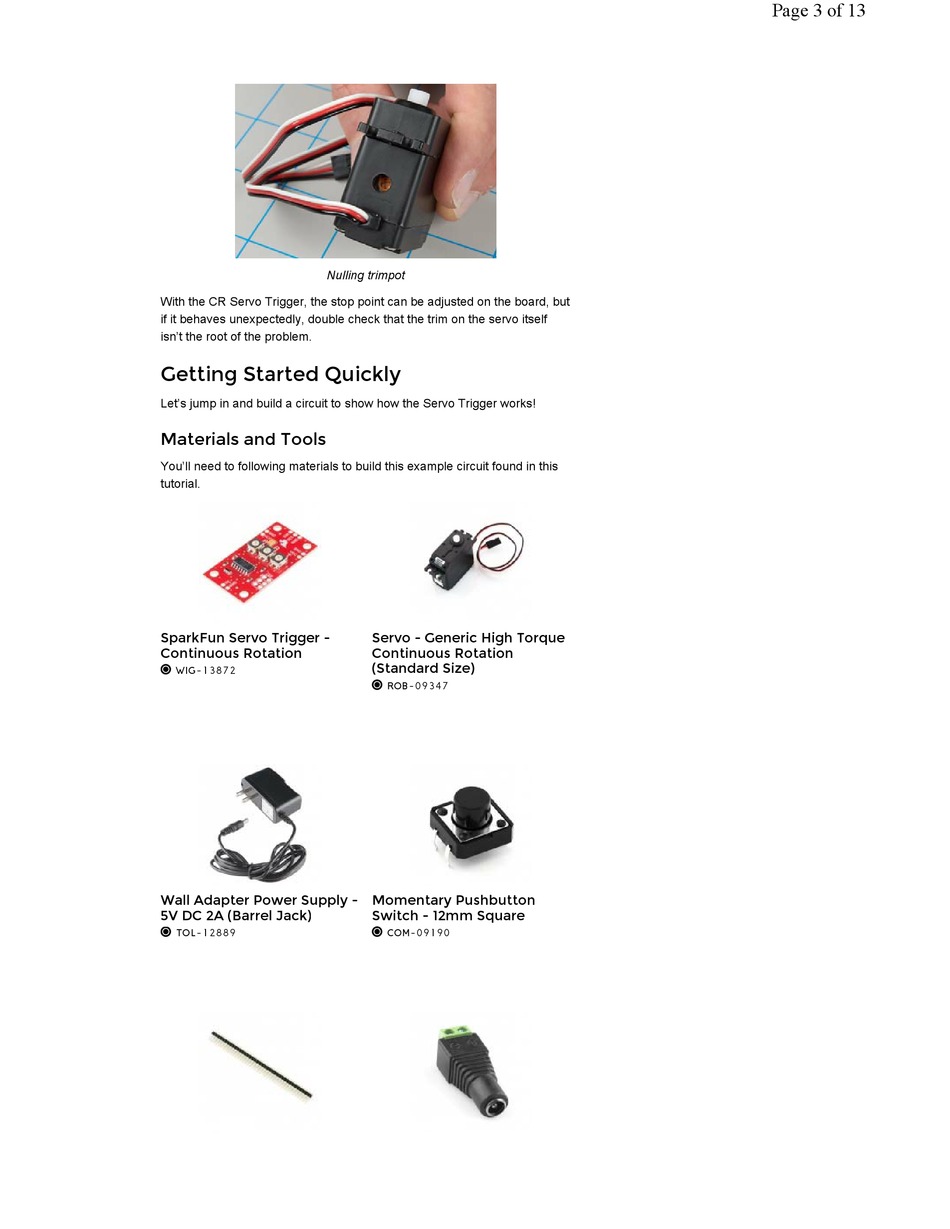

Getting Started Quickly - sparkfun WIG-13872 Hook-Up Manual

Nulling trimpot
With the CR Servo Trigger, the stop point can be adjusted on the board, but
if it behaves unexpectedly, double check that the trim on the servo itself
isn't the root of the problem.

Getting Started Quickly

Let's jump in and build a circuit to show how the Servo Trigger works!
Materials and Tools
You'll need to following materials to build this example circuit found in this
tutorial.
SparkFun Servo Trigger -
Continuous Rotation
 WIG-13872
Wall Adapter Power Supply -
5V DC 2A (Barrel Jack)
 TOL- 12889
Servo - Generic High Torque
Continuous Rotation
(Standard Size)
 ROB- 09347
Momentary Pushbutton
Switch - 12mm Square
 COM- 09190
Page 3 of 13
