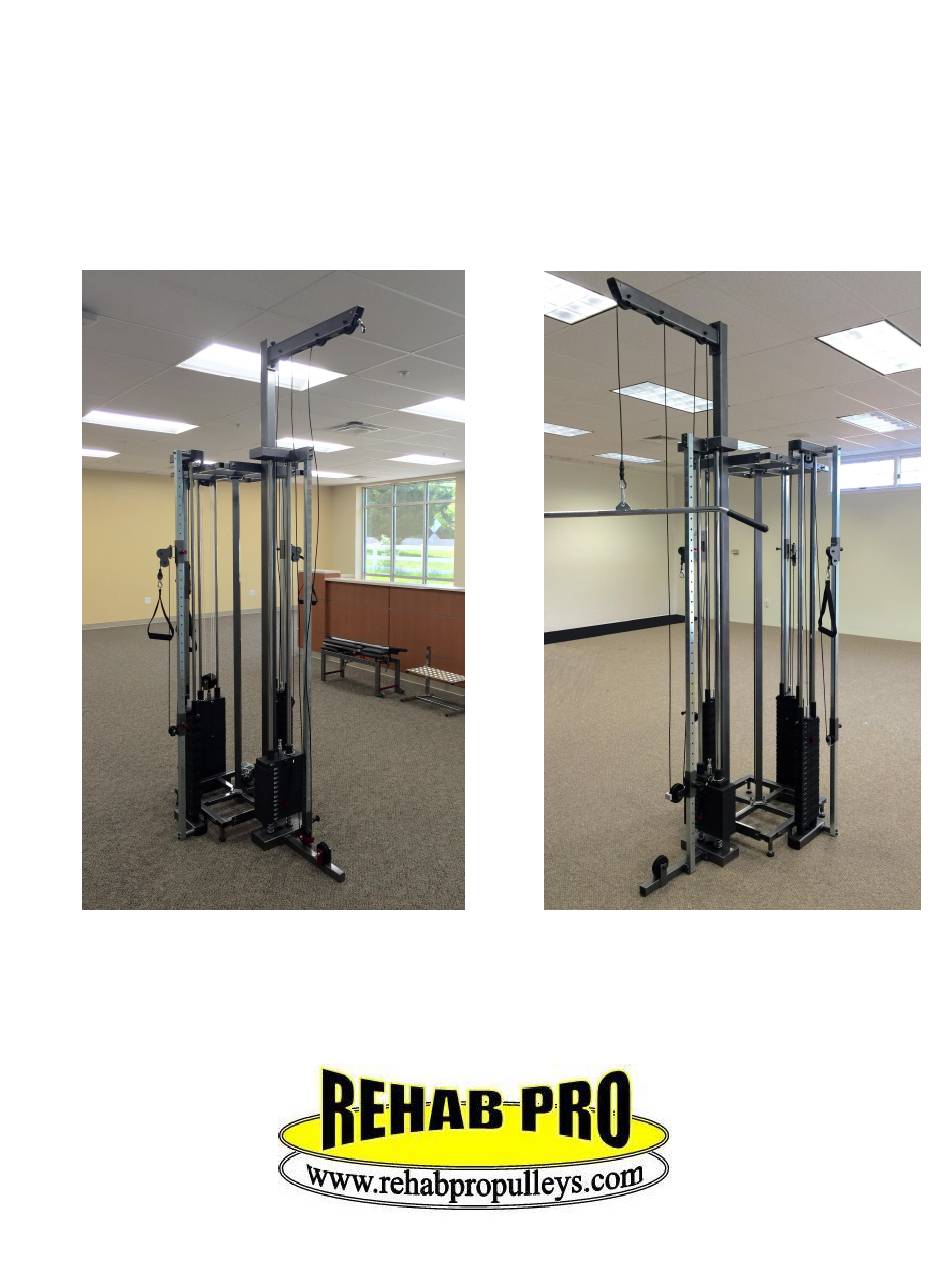

- Page 1 MMS1 Module Set Up User Manual...
- Page 2 Thank you for your purchase of a MMS1 modular set up. The module is seldom purchased by itself and as a result it is normally shipped together with a pulley set up. So this manual will cover an example set up that most likely will be close to what you have purchased.
- Page 3 The Module The module ships in 3 pieces, the base, the upright and the top. The base and top are packed together. The adjustable legs are already in place, screwed all the way in. The three pieces assemble together with 8x 5/16 -18, 2 long socket head bolts, 5/16 washers and 5/16 jam nuts.
- Page 4 Lat Pull Assembly Attach the overhang to the backbone with the 2x, 4 long, ½ socket head bolts and tighten them all the way using the provided ½ nylon nuts. Unscrew the bolt on top of the first weight increment and thread the provided lat wire through the center hole.
- Page 5 A finished assembly should resemble photo # 5 below. At this point the module should be fully operational. Please contact RehabPro, Inc. with any issue you have either by calling 602-317-7207 or e-mail Kris van Scheers at...
