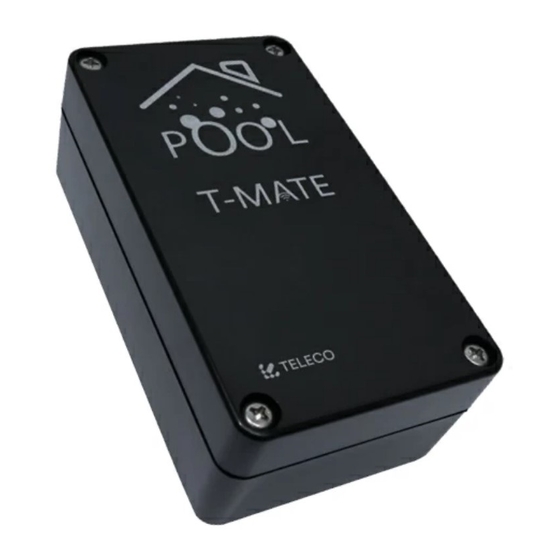

T-MATE: 5/12-24VDC BLUETOOTH INTERFACE, PROGRAMMABLE BY MEANS OF AN APP, TO CONTROL ANY
TELECO PRODUCT. UP TO 50 DEVICE COMMANDS CAN BE CREATED AND MEMORIZED IN MANY WIRELESS
RECEIVERS. WIRED INPUT (N.O.) TO CONNECT A PUSH-BUTTON OR A PIR.
Product code
TMATExxxAL
TMATExxxBL
Characteristics
•
Available in both 868.3MHz and 916MHz frequencies.
•
Easy access via Bluetooth from any compatible device.
•
Up to 50 programmable device commands.
•
Possibility to create scenarios.
Weekly timer to send commands at a specific date and time.
•
•
Wired input for the connection of push-button or PIR to recall
a favourite scenario.
T-MATE App
Dimensions and connections
115 mm
65 mm
25 mm
15 mm
T-MATEXXXAL-BL
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
TELECO AUTOMATION SRL
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
TELEPHONE: ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com
(power supply included)
Bluetooth
- 5 or 12-24Vdc
-
PIR or push-button
input
Thermoplastic ABS
Not suitable for direct UV exposure
The product must be fixed vertically.
The product guarantees IP44 rating
if properly assembled.
868.3MHz
916MHz
868.3MHz
916MHz
*
* The Blue Series receivers are bidirectional. They can receive
and execute commands and send the status back to T-Mate
1.
+12 ÷ 24Vdc
2.
GND (-)
3.
+5Vdc
4.
COMMON
5.
N.O. CONTACT INPUT
DOC.: T770.04_EN
DATE: 28/05/18
Advertisement
Table of Contents
Related Manuals for Teleco T-MATE
Summary of Contents for Teleco T-MATE
- Page 1 The product must be fixed vertically. GND (-) The product guarantees IP44 rating +5Vdc if properly assembled. COMMON 15 mm N.O. CONTACT INPUT T-MATEXXXAL-BL DATE: 28/05/18 DOC.: T770.04_EN This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights...
- Page 2 Note: In the Android devices the localization function must be activated. Open Setup menu ► Detecting boards, tap on “+”, insert the new installation name and insert the Code of the T-Mate. Tap on “Connect“ button to pair the device. A1234...
- Page 3 Set dates General switch for all the set timers O p e n S e t u p m e n u ► Tap the command Devicename ► Schedule button to set to set system date/time. It’s the timers possible to set 2 groups of days: weekdays and weekend.
- Page 4 The smartphone must have an internet connection active. Launch the T-Mate app. Open Setup menu ► Detecting boards ► Connect to “T-Mate” board ► Tap on “Backup“ button. Once the backup procedure has been completed close the T-Mate App. A1234...
- Page 5 The manufacturer, Teleco Automation s.r.l, declares that the type of radio equipment is compliant with Directive 2014/53/EU. The full text of the EU compliance declaration is available at the following Internet address: www.telecoautomation.com/ce. In the view of a constant development of their products, the...
- Page 6 Technical specification - Transmission frequency 868.3 MHz (TMATE868xL) - Max. possible virtual transmitters 916MHz (TMATE916xL) - Protection IP44 - Power supply 5 / 12-24Vdc - Material of the box and its cover Thermoplastic ABS - Operating temperature range -20° +50°C - Bluetooth module Bluetooth 4.1 (BLE) at 2.4GHz...
