Wixey WR25 Instructions

TM
Wixey

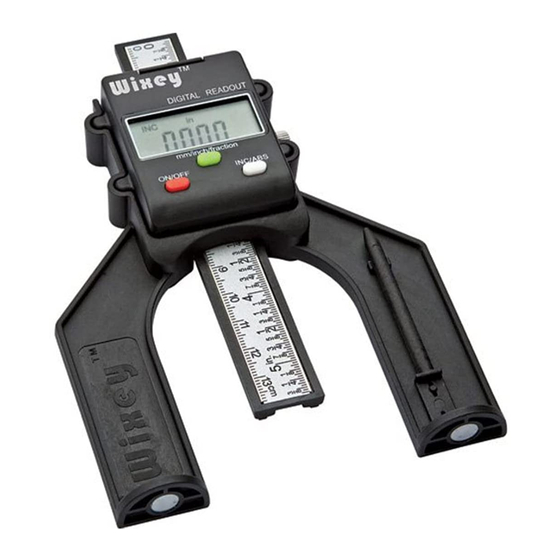

Model WR25
Mini Digital Height Gauge

SAFTEY FIRST

• Always turn off the power and unplug power tools before using any gauge.
• Never use power tools without properly installed blade guards. Guards
ON/OFF and ZERO
PUSH MOMENTARILY TO TURN
OFF AND ON
HOLD FOR 3-5 SECONDS TO SET
TO 0.000 (ABS MODE ONLY)
ABSOLUTE MEASURING MODE
TOGGLES BETWEEN ABSOLUTE
AND INCREMENTAL
Battery installation and locking the scale
may not be shown for clarity.
INCH MODE
INCREMENTAL MODE RE-SETS
TO 0.000
INSTALL CR2032
BATTERY
SCALE LOCK
KNOB
Instructions

Readout Operation

TOGGLES BETWEEN INCHES AND MILLIMETERS
ABS/INC
Problem
Flashing Digits
No Display
No Display
Erratic or
Frozen Display
Patented US Patent no. 7,580,804
IN/MM
MILLIMETER MODE
TOGGLE BACK TO ABS MODE
AND THE CALIBRATED
DIMENSION IS REMEMBERED

Trouble Shooting

Possible Solution
Cause
Low Replace Battery
Voltage
Low Replace Battery
Voltage
Bad Clean Battery
Contact
Internal Remove Battery
Error Wait 1 Minute
and Replace
