Wixey
Model WR365 Digital Angle Gauge
with Level
Instructions
SAFTEY FIRST
• Always turn off the power and unplug power tools before using any gauge.
• Never use power tools without properly installed blade guards. Guards
may not be shown for clarity.
Install two AAA Batteries
Note the super strong
magnetic base with "V"
groove for use on pipe
*
Dead Level
is what is shown with a tradition bubble level when the bubble is in the exact
center of the vial. Our Dead Level
calibrated level setting which is always being displayed by both the bubble level
icon and the small digital angle reading in the upper right corner of the display.
ON/ZERO: A. Press once to turn ON display. B. Press again to set relative angle to 0.0° .
C. Press and hold to turn off.
FIG 3
HOLD Press once to HOLD displayed reading -Press again to return to measuring mode
Patent Pending
Basic Use
FIG 1
refers to absolute level with respect to the center of the earth. This
TM
READING THE DISPLAY
A
F
A. Bubble icon permanently set Dead Level
B. Tilt of gauge compared to Dead Level
C. Low battery indicator
D. Indicates the display is in HOLD mode
E. Relative angle reading
F. Indicates direction of tilt from relative 0.0°
technology consists of a permanently
TM
1
Exclusive

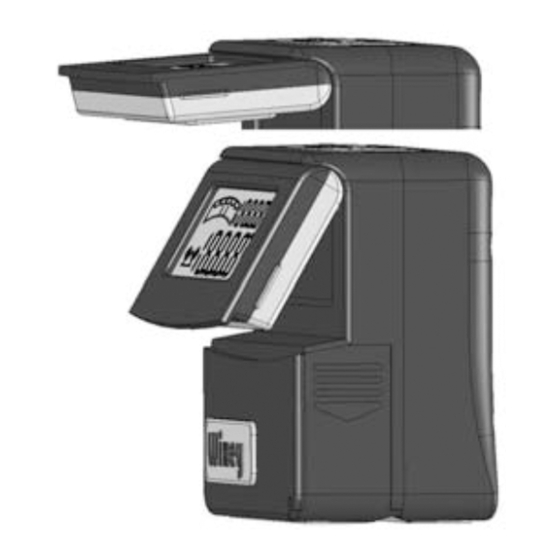

flip-up
display
B
E
FIG 2
C
D
*
TM
TM
