Velleman-Kit K4307 Manual

Led audio power meter

Advertisement

Quick Links

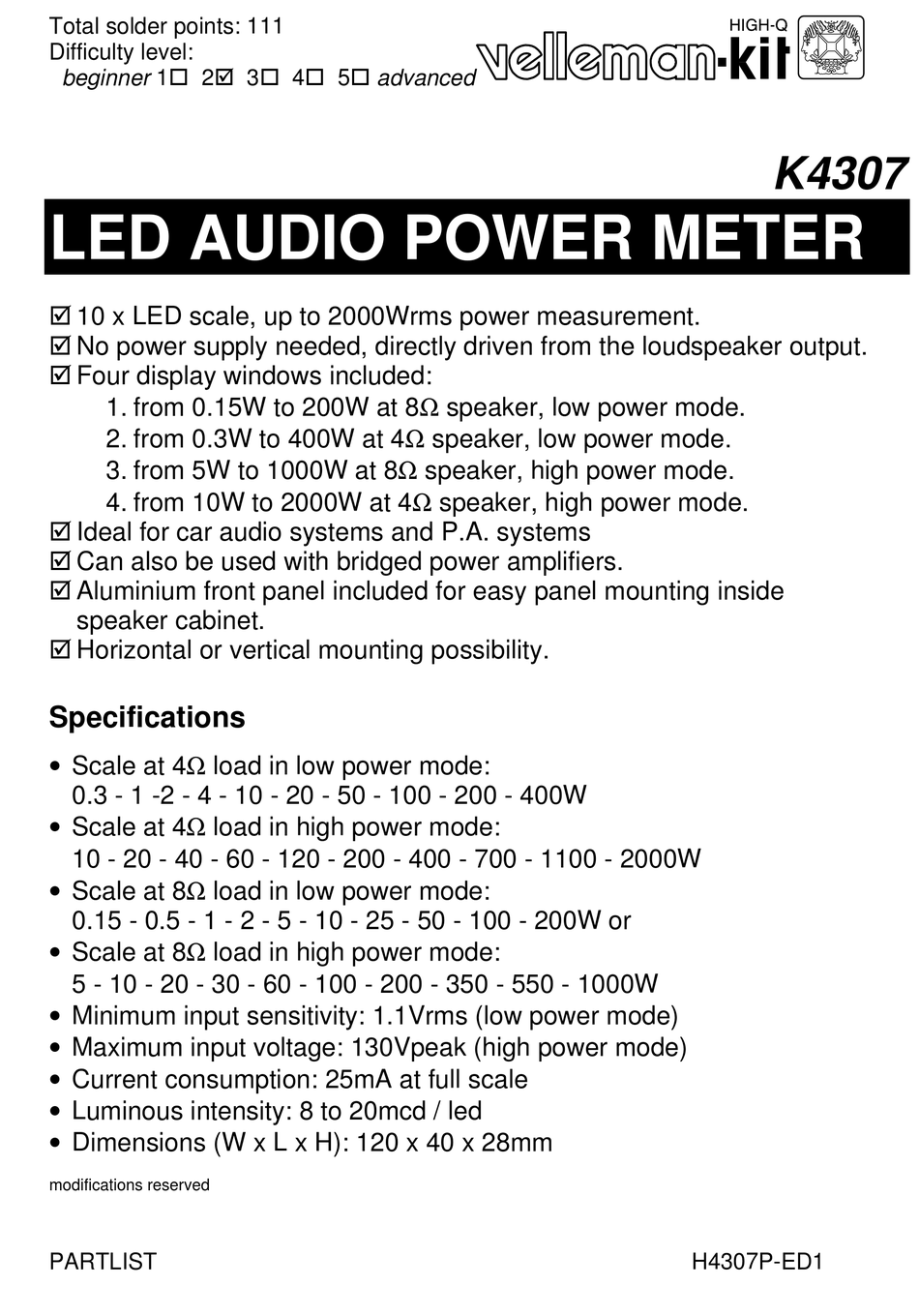

Total solder points: 111
Difficulty level:
beginner 1o 2þ 3o 4o 5o advanced
LED AUDIO POWER METER
þ 10 x LED scale, up to 2000Wrms power measurement.
þ No power supply needed, directly driven from the loudspeaker output.
þ Four display windows included:
1. from 0.15W to 200W at 8Ω speaker, low power mode.
2. from 0.3W to 400W at 4Ω speaker, low power mode.
3. from 5W to 1000W at 8Ω speaker, high power mode.
4. from 10W to 2000W at 4Ω speaker, high power mode.
þ Ideal for car audio systems and P.A. systems
þ Can also be used with bridged power amplifiers.
þ Aluminium front panel included for easy panel mounting inside
speaker cabinet.
þ Horizontal or vertical mounting possibility.
Specifications
• Scale at 4Ω load in low power mode:
0.3 - 1 -2 - 4 - 10 - 20 - 50 - 100 - 200 - 400W
• Scale at 4Ω load in high power mode:
10 - 20 - 40 - 60 - 120 - 200 - 400 - 700 - 1100 - 2000W
• Scale at 8Ω load in low power mode:
0.15 - 0.5 - 1 - 2 - 5 - 10 - 25 - 50 - 100 - 200W or
• Scale at 8Ω load in high power mode:
5 - 10 - 20 - 30 - 60 - 100 - 200 - 350 - 550 - 1000W
• Minimum input sensitivity: 1.1Vrms (low power mode)
• Maximum input voltage: 130Vpeak (high power mode)
• Current consumption: 25mA at full scale
• Luminous intensity: 8 to 20mcd / led
• Dimensions (W x L x H): 120 x 40 x 28mm
modifications reserved
PARTLIST
K4307
H4307P-ED1

Advertisement

loading
Need help?

Need help?

Do you have a question about the K4307 and is the answer not in the manual?

Questions and answers

Summary of Contents for Velleman-Kit K4307

  • Page 1 Total solder points: 111 Difficulty level: beginner 1o 2þ 3o 4o 5o advanced K4307 LED AUDIO POWER METER þ 10 x LED scale, up to 2000Wrms power measurement. þ No power supply needed, directly driven from the loudspeaker output. þ Four display windows included: 1.
  • Page 2 COLOR= 2… 5 4K7= ( 4 - 7 - 2 - B ) 4K7= ( 4 - 7 - 0 - 1 - 1 ) COLOUR CODIFI- KLEUR CODICE CODIGO CODIGO VÄRI FÄRG FARVE FARGE FARB CODE CATION KODE SCHEMA DE COL- COLORE KOODI...
  • Page 3 __________________________________________________________________________________________________________________________________________________________ ASSEMBLY STEPS Required tools to assemble the kit: Use a small soldering iron of max. 40W. Use thin (1mm) solder, do not use any flux. Use a small cutter to trim the excess wires. Mount the compo- Obtain cone- shaped, This solder joint Trim the excess nents against the...
  • Page 4: Zener Diodes

    _______________________________________________________________________________________________________________________________________________________ 2. ZENER DIODES 4. PCB PINS (Check the polarity!) ZD... CATHODE q LS q LS q ZD1: 2V4 5. TRANSISTORS q ZD2: 3V9 q ZD3: 6V8 q ZD4: 10V q ZD5: 18V q ZD6: 27V q ZD7: 36V T... q ZD8: 51V 3.
  • Page 5: Electrolytic Capacitor

    __________________________________________________________________________________________________________________________________________________________ ELECTROLYTIC CAPACITOR (Check the polarity!) C... q C1: 47µF/63V q C2: 47µF/63V 7. Mode setup Depending on the resistor mounted for R13, a measurement selection can be made. The power meter may be set up for low power measurements (typical consumer amplifiers) or for high power measurement, this mode can be used in high power P.A.
  • Page 6 _______________________________________________________________________________________________________________________________________________________ 8. LED’s (Check the polarity!) Mount the LED exactly like in the drawing: COLOR= 2...5 18mm LD... CATHODE q LD1: 3mm red, low current L-934LSRD (2) q LD2: 3mm red, low current L-934LSRD (2) q LD3: 3mm red, low current L-934LSRD (2) q LD4: 3mm red, low current L-934LSRD (2) q LD5: 3mm red, low current L-934LSRD (2) q LD6: 3mm red, low current L-934LSRD (2)
  • Page 7: Mounting The Front Panel

    __________________________________________________________________________________________________________________________________________________________ 9. MOUNTING THE FRONT PANEL A.Mount the suitable spacers: Pass the bolts through the conical holes of the front panel and put the spacers over it before tightening them with nuts. 30mm M3 COUNTERSUNK-HEAD BOLT FRONT PANEL 30mm M3 COUNTERSUNK-HEAD BOLT 1.5mm FRONT PANEL 15mm PLASTIC SPACER M3 NUT...
  • Page 8 _______________________________________________________________________________________________________________________________________________________ 10. CONNECTING Connect the LS-leads in parallel with the loudspeaker or output of the amplifier. POWER METER LOUDSPEAKER SPEAKER AUDIO POWER AMPLIFIER...
  • Page 9 __________________________________________________________________________________________________________________________________________________________ 11. PCB LD2 LD3 LD6 LD7 LD8 LD9 LD10 12. DIAGRAM L-934LSRD L-934LSRD L-934LSRD L-934LSRD L-934LSRD L-934LSRD L-934LSRD L-934LSRD L-934LSRD 0.5W 100W 200W LD10 L-934LSRD 1N4148 0.15W 1N4007 BC546B BC546B BC546B BC546B BC546B BC546B BC546B BC546B BC546B MPSA92 T1 47u/63V 150K MPSA42...
