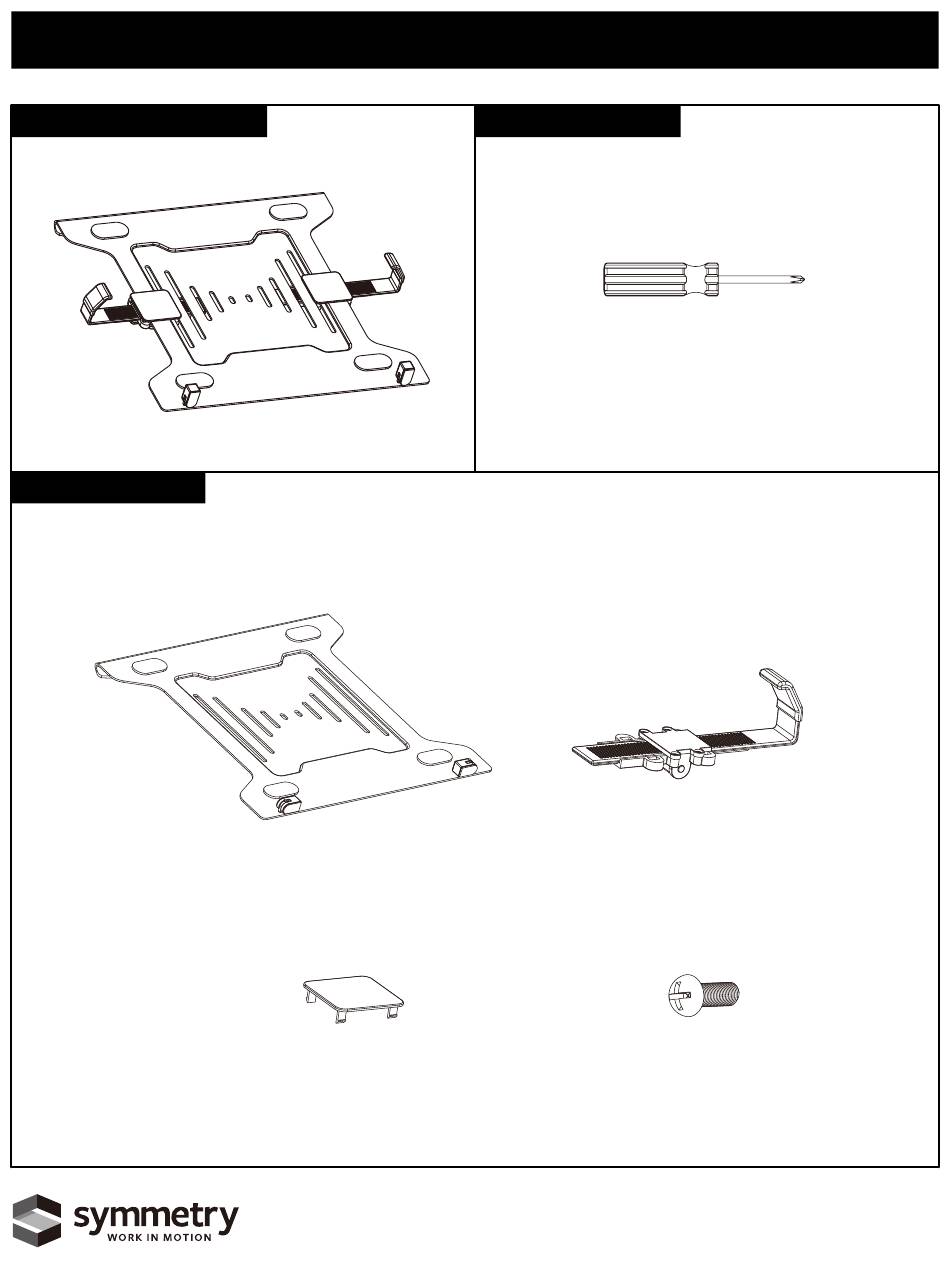

MOBIO MONITOR ARM LAPTOP TRAY LD
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.
86-009077/86-009185
REQUIRED TOOLS
#2 Phillips Screwdriver
COMPONENTS
A(x1)
B(x2)
C(x2)
D(x4)
To report any issues with this product, please contact our customer service department at (888) 552-5699.
No. C6289 Rev. A
For more information, visit www.symmetryoffice.com.
Release Date: 4/30/2020
