FOLLOW THESE INSTRUCTION CAREFULLY !!!
!
This manual contains very important instructions for the installation, and use of this control board mod.
Do not install prior to reading this manual, the best results depends upon the correct application , installation.
We the manufactures of this product declines any responsibility in the case of an incorrect installation or improper use ,
And should be installed by a qualified person. This product has been created by keeping the strictest safety norms following
EC directives : CEE73/23, CEE89/336, CEE93/68, CEE89/106, CEE89/392.
This manual has to stay with the equipment at all time, must not remove!
Courtesy Light
220Vac
Flashing light
Com
Motor
Switch
omnipolar
230V 50Hz
FOR SAFETY REASON A SAFETY DEVICE
!
MUST BE USE WHEN USING THIS REMOTE CONTROL

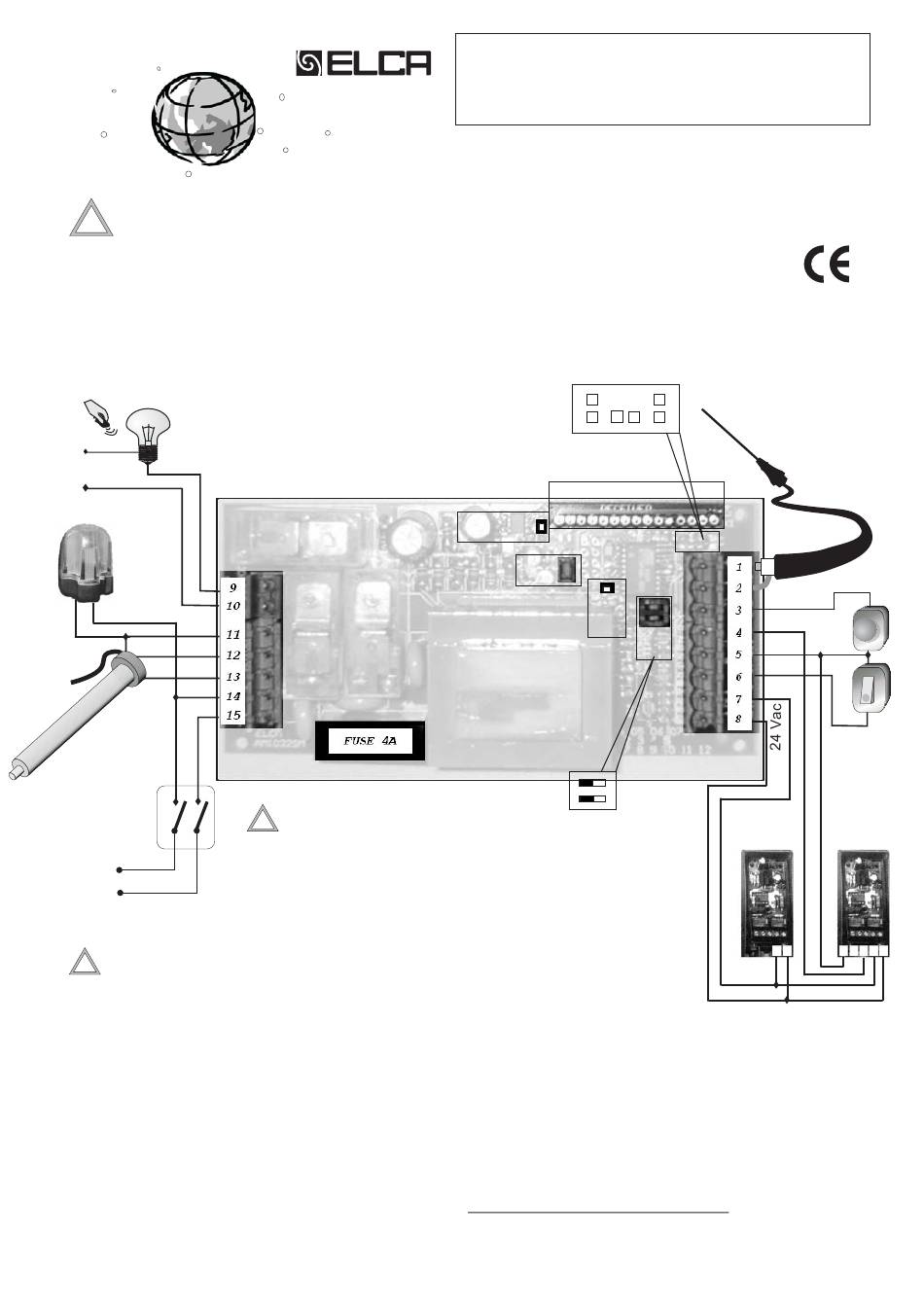

TERMINALS CONNECTION
1-2
ANTENNA terminal n.1=RF
3-5
STOPcontact, normally close.
4-5
PHOTOCELL contact, normally close
6-5
START/STOP contact, normally open
7-8
output 24 Vac max feeding 2 photocells
9-10
courtesy lamp contact (max 5A-230V) free voltage contact
11-12-13
connection for monophase motor 500W max (terminal n.11=common)
14-15
power supply 230 Vac - 50 Hz
11-14
flashing light connection 230 V - 25 W
C
- Only rolling code
B-
Theft proof's function
A
- Tampering
ATTENTION !!
!
During the installation it's important to have a switch with
contact opening of at least 3mm that assurse an omnipolar
disconnection of the board to the current network . Procede
with a correct motor grounding.
ELCA snc
Via Malintoppi, 32
63023 FERMO (AP)
ITALY
Soldering bridges
A
RECEIVER
Led ON
P1
Led
OK
Off ON
(TERMINAL 14=NEUTRAL
1
Tel. 0039 0734 608484
Fax 0039 0734 605080
e-mail: elcasnc@tin.it
web: www.elcasnc.com
Control board for
rolling-shutters and
blinds' automation with:
-rolling code
-cortecy lamp contact
AMALTEA-2.
B
C
Antenna
DIP
1 Pause
2 Times
Photocell
TX
4 5
)
Stop
STOP
Button.
Start/Stop
RX
Photocell
1 2 3 4 5
