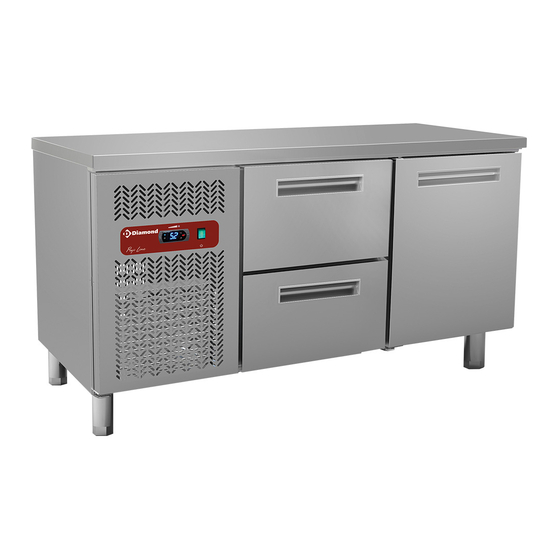

Summary of Contents for Diamond MR2/TP
- Page 1 06/2012 Mod: MR-MAXIPIZZA/CP Production code: 18G616000000...
-
Page 2: Table Of Contents
REFRIGERATED TABLES INSTALLATION, USE AND MAINTENANCE LANGUAGE INDEX Mesas Refrigeradas (Español)…………………………………………………………………………………………. 1 Tables Frigorifiées (Français)………………………………………………………………………………………… 9 Refrigerated Tables (English)……………………………………………………………………………………….… 17 Kühltische (Deutsch)..…………………………………………………………………………………. 25 Koeltafels (Nederlands)…………..……………………………………………………………………. 33 Tavoli Refrigerati (Italiano)……………………………………………..……………………………………..65 CONTENTS INSTALLATION ..........................2 POSITIONING ........................2 CLEANING..........................2 GENERAL..........................3 MATRICULATION PLATE ......................4 START-UP ..........................5 USE ..............................5 USE AND LOCATION RESTRICTIONS. -
Page 3: Installation
INSTALLATION 1.0 POSITIONING Remove the packaging except the support pallet. A forklift truck or pallet truck can be used to move it to its installation site, lifting the refrigerated table making sure that it is not unbalanced. The table must not be dragged over the floor. The area where the table is positioned must be clear and clean, preventing the refrigerator equipment's fan from absorbing materials, which are then deposited on the... -
Page 4: General
Do not install the table outdoors. A table consumption table for adjusting the protection is attached 3x1.mm BMIV15/TP, MR2/TP, MR PIZZA TENSIÓN 230V 50/60 Hz 30mA 3x1.mm BMIV20/TP, MR3/TP, MR MAXI PIZZA TENSIÓN 230V 50/60 Hz... -
Page 5: Matriculation Plate
GRAMS OF COOLANT GAS CLIMATIC CLASS (N=4) ó (T=5) STANDARD GENERAL MEASUREMENTS OF THE OUTSIDE OF ALL THE TABLES WITH INCORPORATED GROUP AND EMERGENCY DRAINAGE OUTLET IN MM MODEL DIMENSIONS GASTRO MR2/TP 1346 MR3/TP 1796 MR4/TP 2246 SNACK BMIV15/TP 1487... -
Page 6: Start-Up
1.4 START-UP When the inside of the unit has been cleaned, plug it into the electricity network and turn the switch to ON or I. The switch must be on. The temperature in the thermostat indicated the air temperature inside the table. Three minutes after turning the switch on, the compressor operating led must be permanently on. -
Page 7: Recommendations
WARNING Do not damage the refrigeration circuit. WARNING: Do not use electrical appliances inside the compartments designed for storing food unless they are of the type recommended by the manufacturer The table you have purchased is designed to preserve drinks and food. We recommend not hot food or containers, nor chemical, corrosive products or medicines inside the refrigerator, and avoiding the incorrect use of the unit. -
Page 8: Limits
2.3 Limits The climatic class 4 operating limits established for the table: Surroundings limits + 38 qC Room temperature + 54 qC Condensation temperature Relative humidity MAINTENANCE With these guidelines, we would like to offer both you and the technical assistance service help so that the table always works perfectly throughout its useful life. -
Page 9: Special Maintenance
Check that the condenser is clean: You must bear in mind that the cleaner the refrigerator is the greater the energy saving, particularly the condenser’s ribbing. The frequency of this cleaning will be determined depending on the characteristics of the premises. If it is dirty, call the technical support service to clean it.
