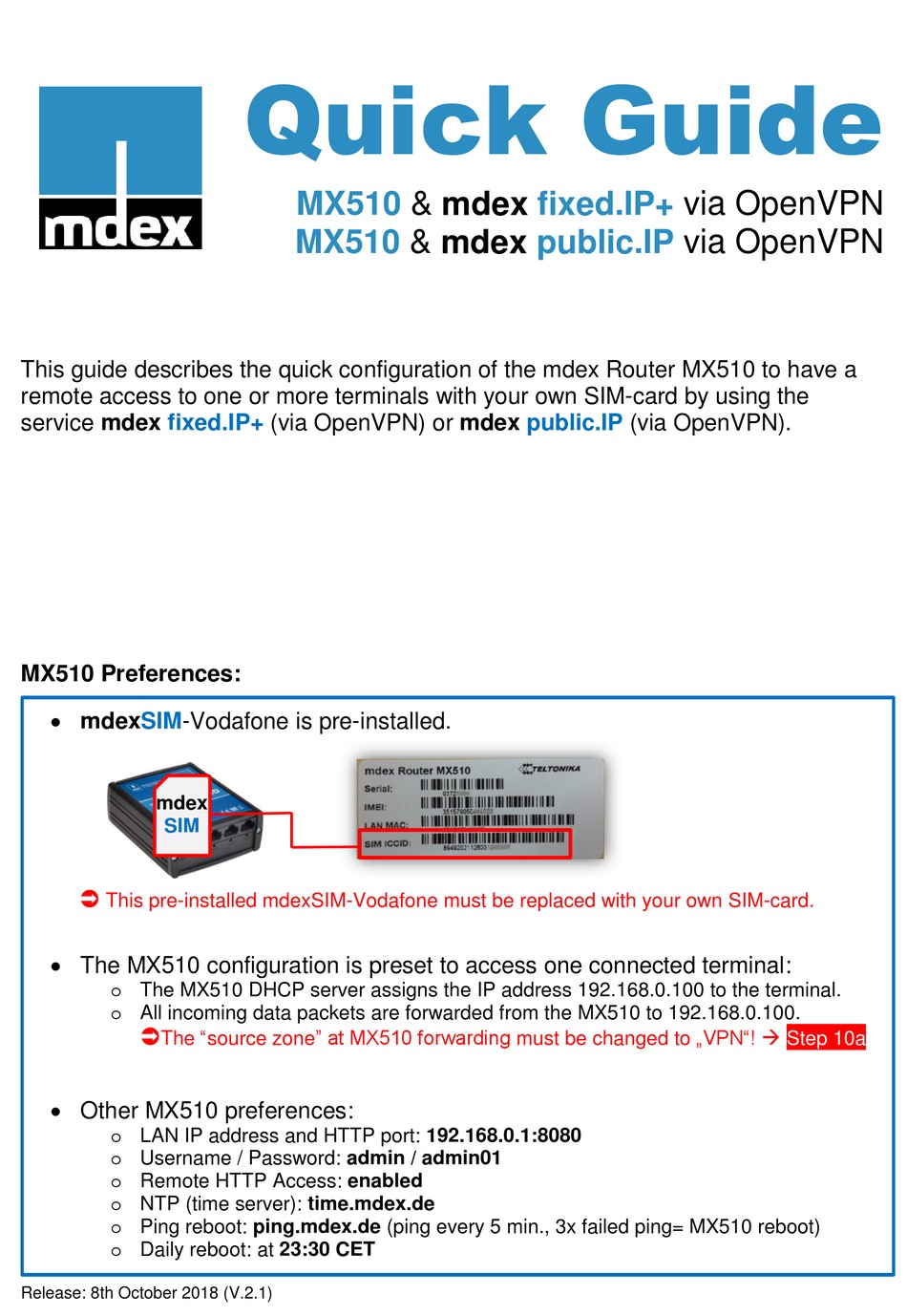

Mdex MX510 Quick Manual

This guide describes the quick configuration of the mdex Router MX510 to have a
remote access to one or more terminals with your own SIM-card by using the
service mdex fixed.IP+
MX510 Preferences:
 mdexSIM-Vodafone is pre-installed.
mdex
SIM
Vodafone

This pre-installed mdexSIM-Vodafone must be replaced with your own SIM-card.
 The MX510 configuration is preset to access one connected terminal:
o The MX510 DHCP server assigns the IP address 192.168.0.100 to the terminal.
o All incoming data packets are forwarded from the MX510 to 192.168.0.100.

The "source zone" at MX510 forwarding must be changed to „VPN"! 
 Other MX510 preferences:
o LAN IP address and HTTP port: 192.168.0.1:8080
o Username / Password: admin / admin01
o Remote HTTP Access: enabled
o NTP (time server): time.mdex.de
o Ping reboot: ping.mdex.de (ping every 5 min., 3x failed ping= MX510 reboot)
o Daily reboot: at 23:30 CET
Release: 8th October 2018 (V.2.1)
Quick Guide
MX510 & mdex
MX510 & mdex
(via OpenVPN) or mdex
fixed.IP+ via OpenVPN
public.IP via OpenVPN
public.IP (via OpenVPN).
Step 10a
