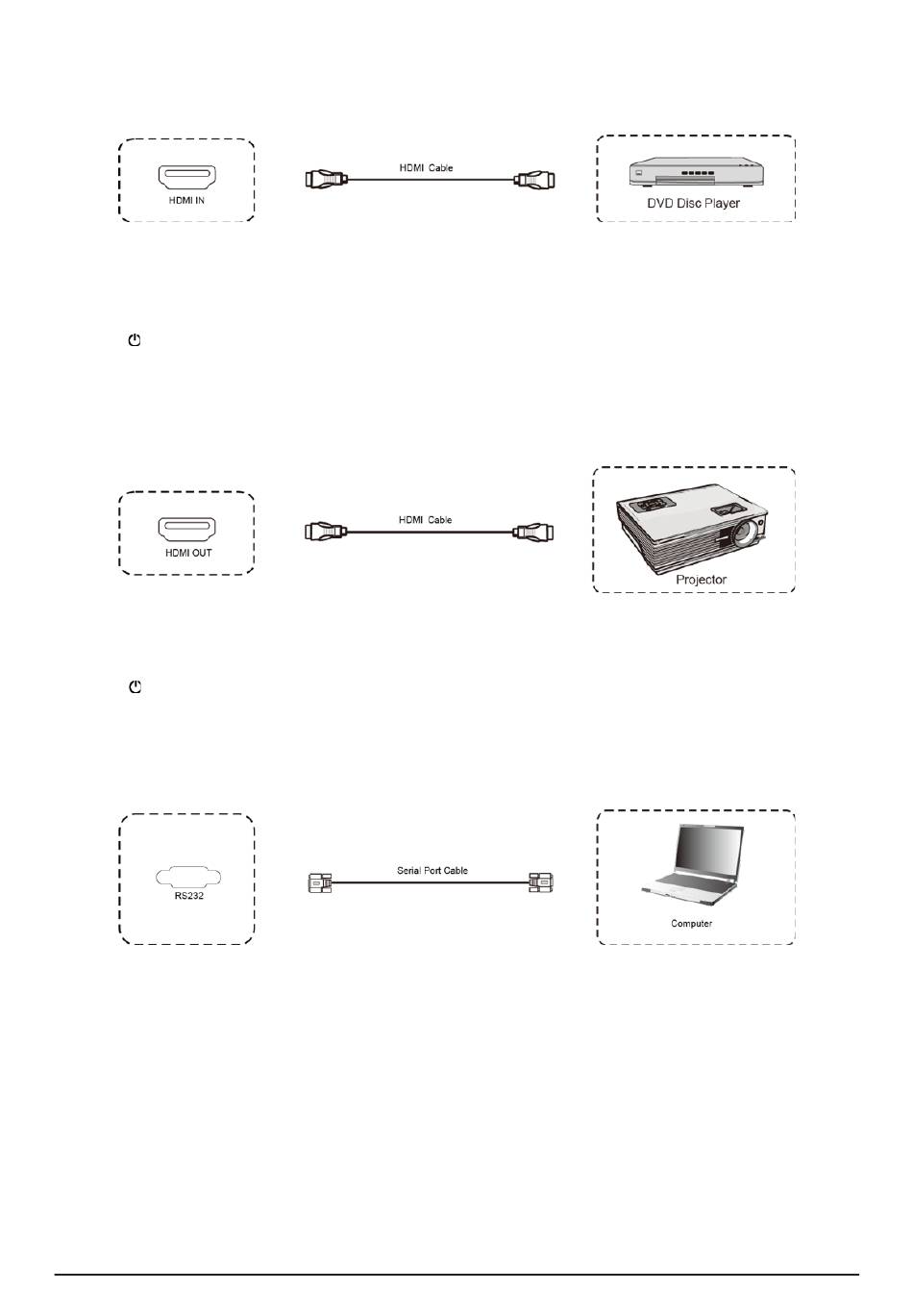

Audio and video equipment input
•
Use HDMI cable to connect audio and video equipment with HDMI output.
•
After cable connection, plug in power cord, and switch power on.
•
Press
to turn equipment on.
•
Press INPUT key to switch to HDMI port.
Audio and video equipment output
•
Use HDMI cable to connect audio and video equipment with HDMI input.
•
After cable connection, plug in power cord, and switch power on
•
Press
to turn equipment on
RS232 connection
After using serial port cable to connect central control equipment and machine, certain function of the ma-
chine can be controlled via central control equipment, such as: machine ON/OFF, and adjustment of sound
volume, etc.
12
|
i3TOUCH EX Series - Manual
�
�
�
