Part No. MP001-BT
Part No. MP001A-BT
USER
MANUAL
V3.0 Dated: 25/01/2017
User Manual
Important
Please read these instructions in full before use. There are some user settings that
may require pre-setting before use. Damage may be caused if you do not set the
headset for your radio.
The MicroAvionics PM100 headset has been designed for high noise environments and
offers state of the art electronic noise filtering coupled together with an extremely high
quality noise cancelling microphone. You will be able to hear and transmit clear
signals even in the harshest environment.
The headset can be worn under a MicroAvionics EN966 certified aviation helmet. Our
helmets come in four sizes. We always recommend you use our helmet.
The headsets have been designed to produce high quality music. The radio volume
should be kept high and the headset volume should be low. If you inadvertently set the
headset volume high then you will hear a small amount of bleed through side tone in
your headset, thus we recommend a low headset volume setting to cancel this out.

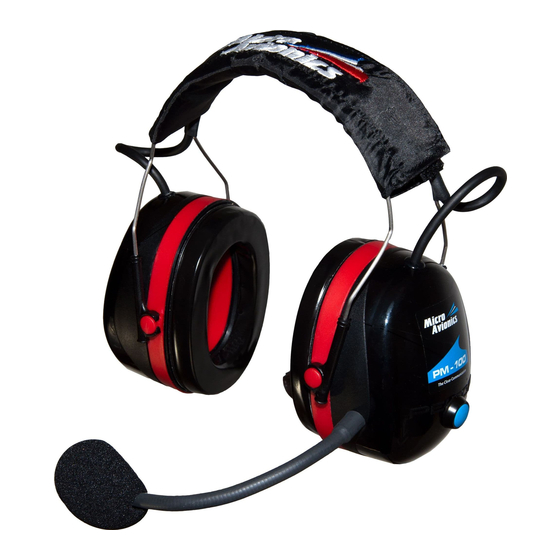

PM 100 Headset
The PM100 headset is designed to work with most radios. The headset can easily be user
configured to work with most radios without the need of opening up the headset to adjust the
electronics. The user simply adjusts the position of some hidden DIP switches to configure
the headset for the radio type (e.g. Airband to PMR radio).
You can connect a single auxiliary input lead to the headset, or buy a remote splitter box
which enables you to connect up to 5 remote cables to the headset.
The headset has a side tone. Side tone enables the user to hear them self talk whilst
transmitting. This stops the user from shouting and enables the receiving party to hear you
easily without distortion. There is a built in muting circuit safety feature. If you are listening to
music, telephone or second radio and the MASTER radio receives a signal the other devices
will mute. This gives priority to the master radio for safety reasons.
'
PM100'
Side Tone
RadioHeadset
Ship Farm, Horsley, Derby DE21 5BR. ENGLAND
Tel +44 (0) 1332 880468, Fax +44 (0) 1332 882640
sales@microavionics.com
www.microavionics.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MicroAvionics PM100
Summary of Contents for MicroAvionics PM100
- Page 1 PM 100 Headset The PM100 headset is designed to work with most radios. The headset can easily be user configured to work with most radios without the need of opening up the headset to adjust the electronics.
- Page 2 When the headset is not in use turn the power switch ‘OFF’. Bluetooth – Streams music and telephone calls. Turn headset power ON. Search for Bluetooth on your telephone and pair to MicroAvionics once found. Telephone will auto answer after 1-2 rings.
- Page 3 ‘ON’. You should make sure your recording device accepts Line out audio levels before connecting. Tandem connecting lead. Used to connect two PM100 headsets together for tandem use. To transmit you press the PTT button. To activate the intercom, turn switch 3 to ON, for solo flying turn ‘OFF’.
- Page 4 You can access the small set of DIP switches via the window in the left hand ear cup. Carefully remove the blank plate with a small screwdriver. After this is removed you will see a small row of 12 switches. To change the switch position carefully flick the switch with a small screwdriver.
