NP-SG318LT-F Walk-through Temperature Detector
Installation and Configuration Guide

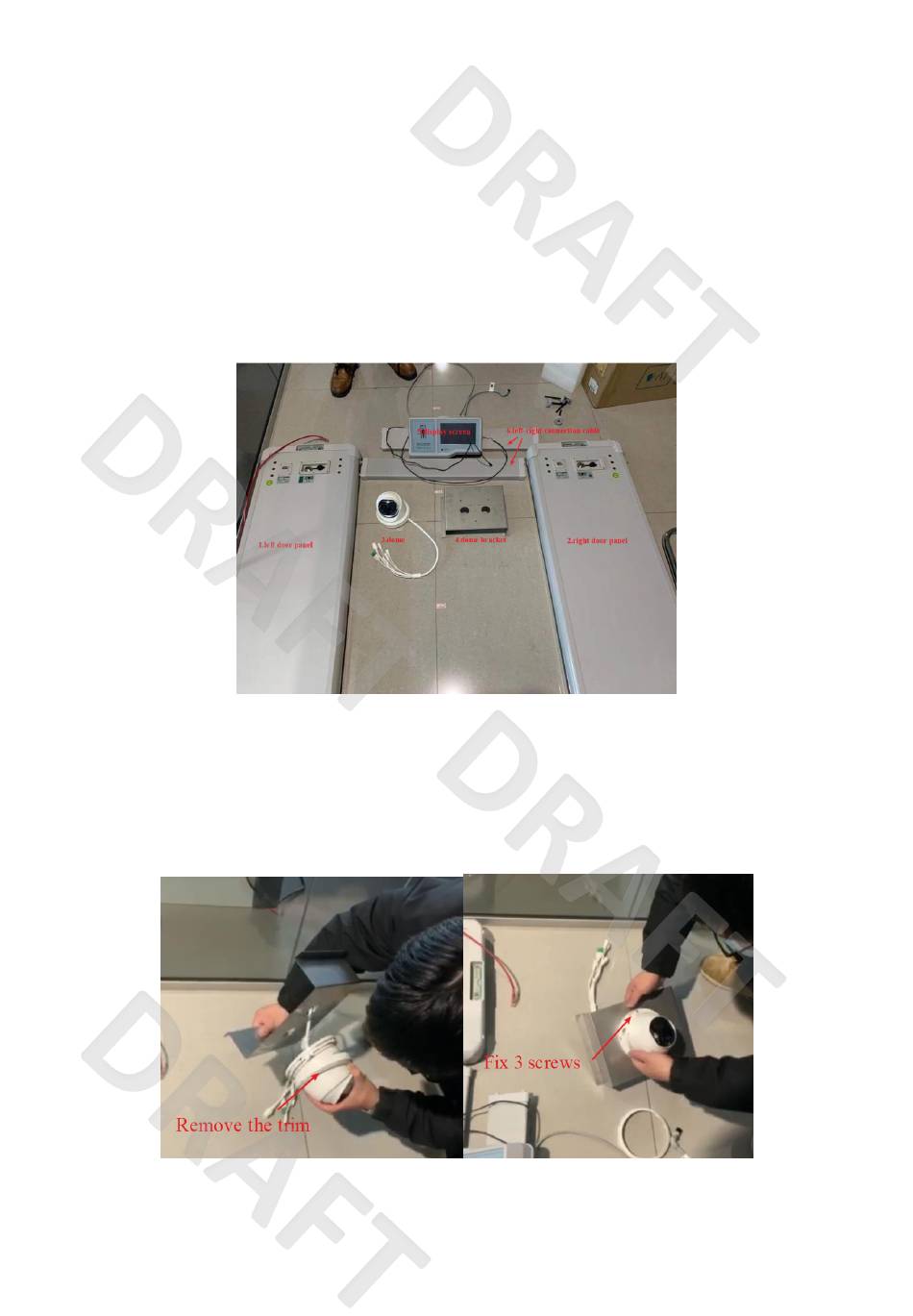

1、open package
Open package and check if all item are there as following picture shows
2、fix thermal dome and bracket
Remove trim from dome and fix dome on the bracket with 3 screws, then put the trim back
Advertisement
Related Manuals for HIKVISION NP-SG318LT-F
Summary of Contents for HIKVISION NP-SG318LT-F
- Page 1 NP-SG318LT-F Walk-through Temperature Detector Installation and Configuration Guide 1、open package Open package and check if all item are there as following picture shows 2、fix thermal dome and bracket Remove trim from dome and fix dome on the bracket with 3 screws, then put the trim back...
- Page 2 3 connect left and right door panel Connect left and right door panel and tighten the screw After fixing door panel, connect the cable. Right side will be power cable and signal cable, the left side will be signal cable only. Pay attention to the left and right sign and do not make mistake...
- Page 3 4 fix thermal dome on the metal detector Fix dome bracket on the metal detector with 4 screws as the following picture shows...
- Page 4 5 connect cable of thermal dome Connect power cable, RS485 cable and network cable with sequence...
- Page 5 6 Program thermal dome Use SADP tool to activate device and type in IP address on web page to log in the device Choose ‘body thermometry –basic settings-target thermometry parameters’, set emissivity as 0.98 and distance as 2m, and click save Select body thermometry configuration to do alarm configuration.
- Page 6 7 Test effect Put the metal detector on, power on and it will do self-checking. After self-checking it is ready to work If temperature is over threshold, the screen will display real time temperature and warning light will be on and buzzer will be triggered...
- Page 7 A appendix：how to disable metal detection function If you want to disable metal detection alarm , you need to set sensitivity of all areas to 0. Use touch screen to set as the following picture shows 1.click ‘sensitivity’ 2.log in with account 000000 3.
