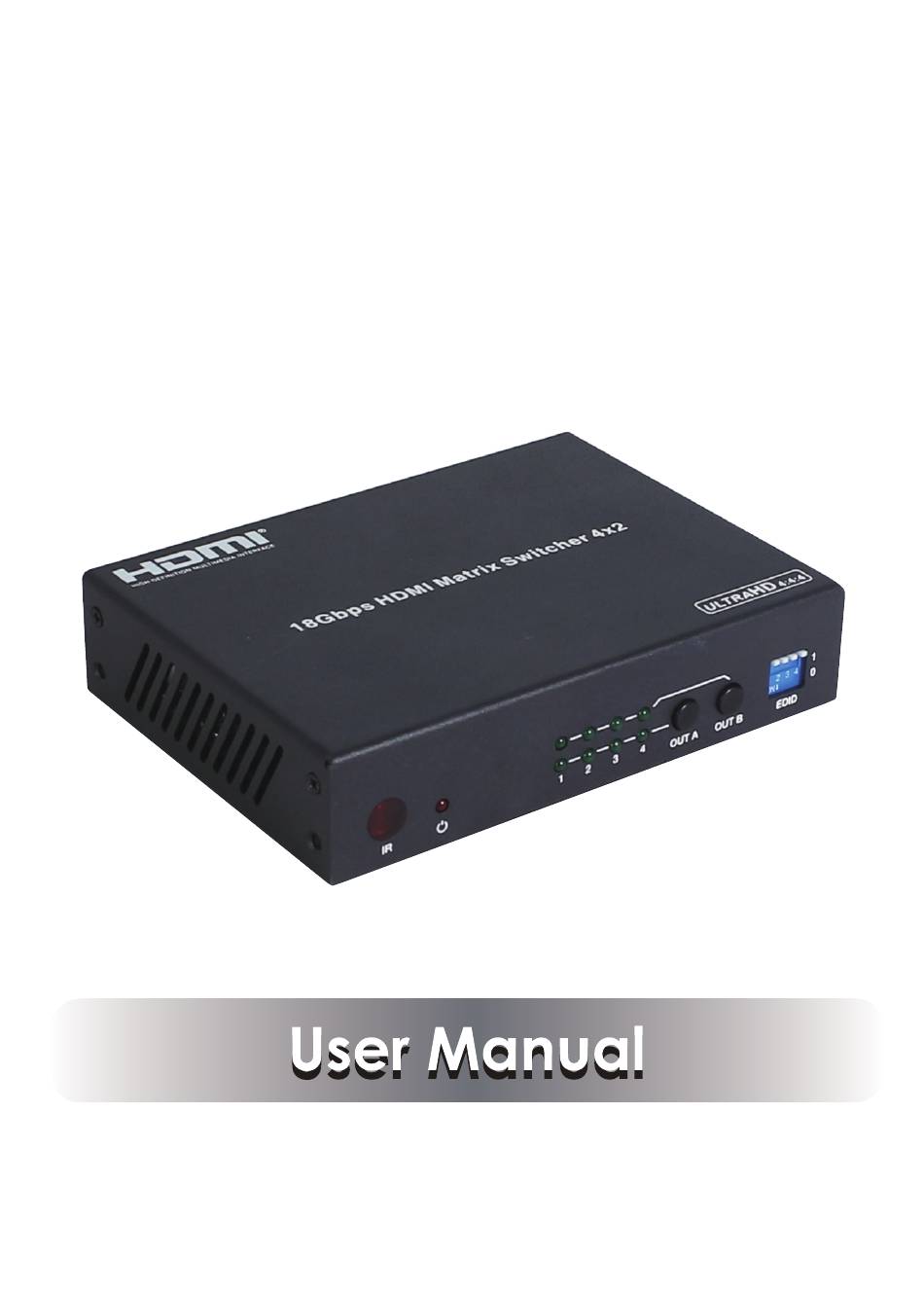

- Page 1 4x2 HDMI 2.0 Matrix Switcher VER 1.2...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electr-ical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The 4x2 HDMI 2.0 Matrix Switcher simultaneously routes four HDMI sources to two HDMI displays. It supports up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. Output A supports audio de-embedding to optical and analog L/R outputs. Output B can support 4K to 1080P downscale function automatically if source is 4K but TV only supports up to 1080P. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz.All HDMI 3D TV Video Resolution format Color Space RGB, YCbCr4:4:4,YCbCr4:2:2 Color Depth 8-bit, 10-bit, 12-bit PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, HDMI Audio Formats DTS-HD Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH L/R Audio Formats Analog stereo 2CH Human-body Model: ±8kV (Air-gap discharge),... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function description IR receiver window. Power LED indicator. POWER LED OUT A LED Select the input channel indicator light for the output A. Select the input channel indicator light for the output B. OUT B LED OUT A button Select the input channel button for the output A. - Page 6 Number Name Function description INPUT ports Connect to HDMI sources device such as DVD player. OUTPUT A Connect to HDMI display device such as TV or monitor. Connect to HDMI display device such as TV or monitor. OUTPUT B OPTICAL output Extracts HDMI Output A audio to optical out. L/R output Extracts HDMI Output A audio to L/R analog audio out.
-
Page 7: Remote Control
6. Remote Control OUTPUT A: IN1 / IN2 / IN3 / IN4: Select the input channel for the output A. : Select the last or next input channel OUTPUT A for the output A. OUTPUT B: IN1 / IN2 / IN3 / IN4: Select the input channel for the output B. -
Page 8: Application Example
8. Application Example...
