Kohler Englefield STUDIO 5625A-VS-CP Installation Instructions

STUDIO Dual Rain Shower

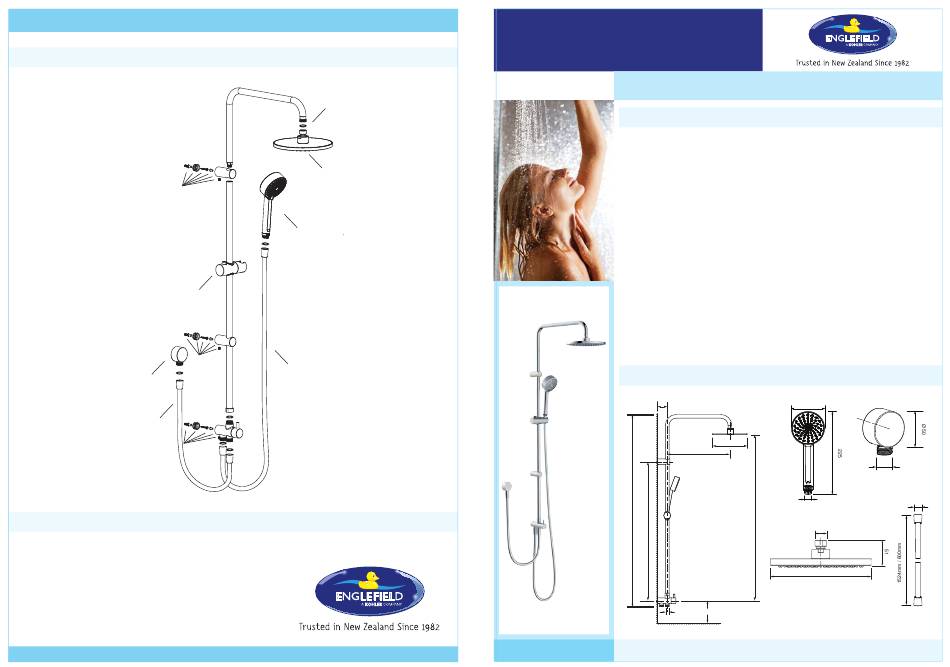

SPARE PARTS LIST
Hexagonal wall mount
1241288
Clamp bracket
1241291
Optional
wall mount
1241289
Elbow
1358461-CP
Shower hose
1241296
Diverter set
1241293
CONTACT AND WARRANTY INFORMATION
NEW ZEALAND AUSTRALIA
KOHLER NZ LTD KOHLER AUSTRALIA
Free Ph: 0800 100 382
Free Ph: 1 800 ENGLEFIELD
Free Fax: 0800 664 488
(1 800 364 533)
www.englefield.co.nz www.englefield.com
For warranty information, please visit our website
1398217-A02-A 16/07/2019
INSTALLATION INSTRUCTIONS
Hose washer
1239241
200mm Round Shower Head
1241287
Hand shower (Multi modes)
1397398
Shower hose
1241297
Englefield
Page 4
INSTALLATION
INSTRUCTIONS
STUDIO
TAPWARE
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of
publication. Englefield reserves the right to make changes in product character-
istics, packaging, or availability at any time without notice.
Please leave this installation instructions guide for the consumer.
It contain important information.
1. Flush the water supply pipes thoroughly to remove debris.
2. An in-line filter must be used with this product.
3. The highest working pressure for the hand shower and the overhead shower is 500kPa. If it
exceeds 500kPa, a pessure limiting valve must be fitted.
4. The operating temperature of hand shower and the overhead shower is from 10˚C to 70˚C.
NZ building code G12 requires that maximum hot water temperature at any sanitary fixture
used for personal hygiene shall not exceed either 45˚C or 55˚C. If so, a tempering valve must
be installed.
5. This shower is intended for high/mains pressure installations. It may not be suitable for use
with gravity-fed water heaters, low and unequal pressure supplies.
6. All installations should comply with local plumbing codes and the relevant requirements of
AS/NZS 3500 and AS/NZS 6400.
ROUGH-IN DIMENSIONS
55
1144
847
G1/2"B
1217518-A02-F 24/06/2019
1398217-A02-A 16/07/2019
Dual Rain Shower
5625A-VS-CP
Ø 90
Ø200
350
G 1/2"B
1012
G1/2"
Ø200
1200~1300 Recommended height
to Finished Floor
* All measurements shown are in milimetres
G 1/2"B
G 1/2"
