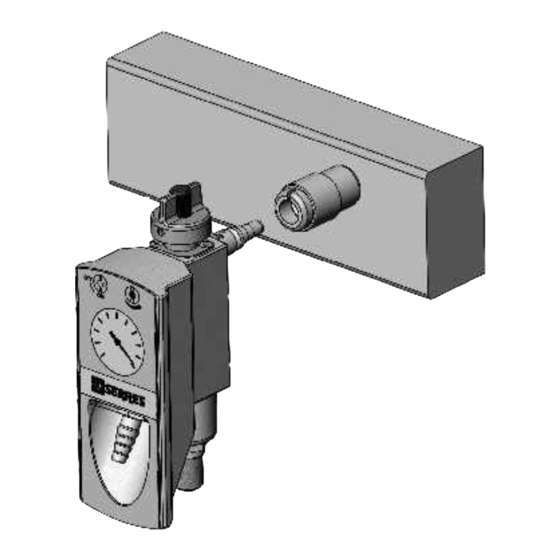

Serres Q-Vac 57966, 57967
4
Serres Q-Vac 57964
6
Serres Q-Vac 57977
Serres Q-Vac Huolto-ohje
8
Instrucions for maintenance
Vedlikeholdsinstruksjon
Servise instruktion
Wartungsanleitung
Q-Vac imuejektori
Q-Vac suction ejector
Q-Vac sugejektor
Q-Vac-Gerät erzeugt

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q-Vac Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SERRES Q-Vac Series

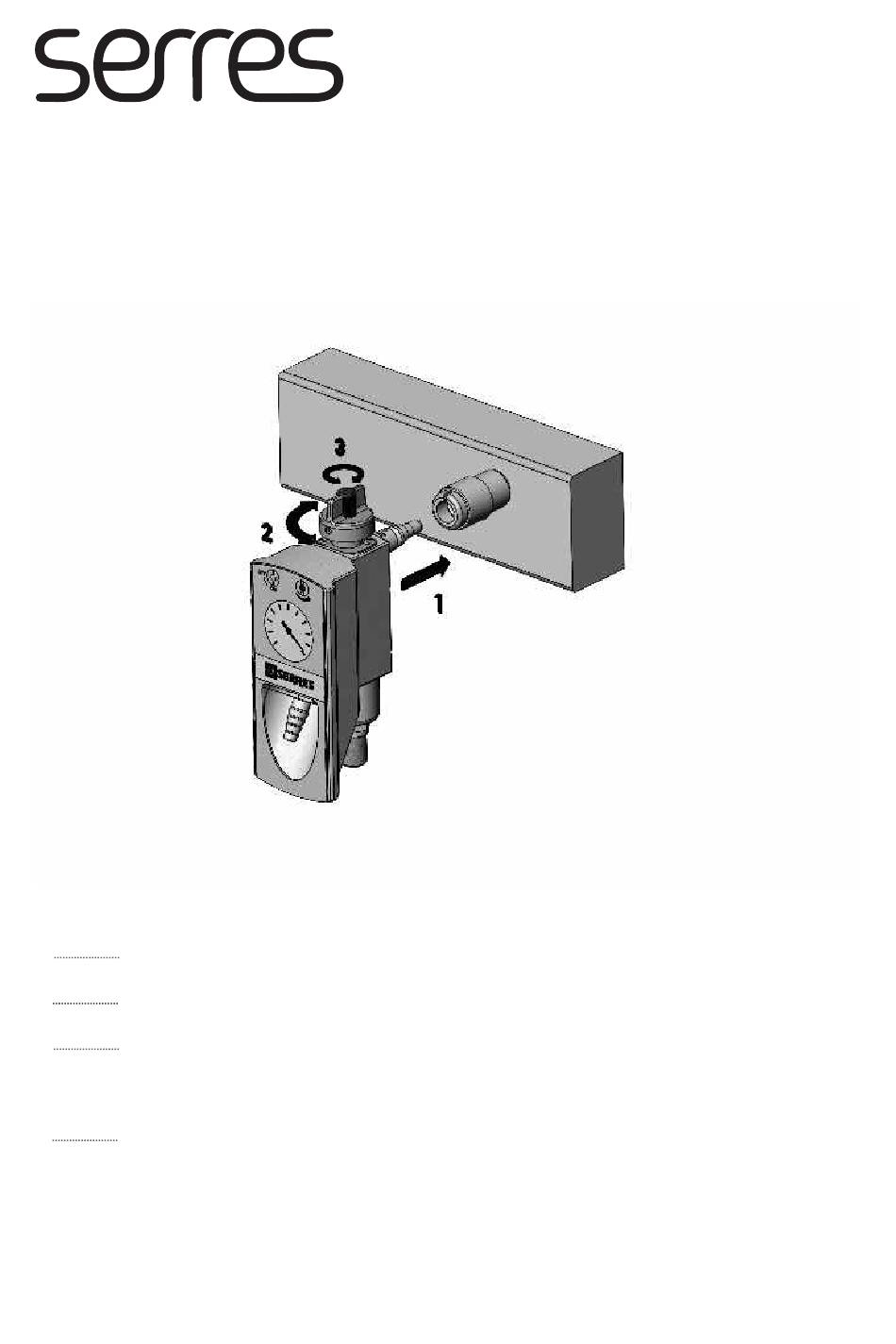

  • Page 1 Q-Vac imuejektori Q-Vac suction ejector Q-Vac sugejektor Q-Vac-Gerät erzeugt Serres Q-Vac 57966, 57967 Serres Q-Vac 57964 Serres Q-Vac 57977 Serres Q-Vac Huolto-ohje Instrucions for maintenance Vedlikeholdsinstruksjon Servise instruktion Wartungsanleitung...
  • Page 2 57966 57974 Huoltosarja / Service pack Servicesats / Vedlikeholdsserien / Wartungsset o-ring 8,73x1,78 13729 o-ring 2,57x1,78 13704 o-ring 12,0x1,5 13730 o-ring 4,0x1,2 13747 o-ring 7,3x2,4 13700 o-ring 7,66x1,78 13701 o-ring 4,47x1,78 13702 57967 o-ring 11.1x 1,6 13703 57975 o-ring 28,5x1,6 13732 13713 13734...
  • Page 3 Trykkforsyning: min. 5,2 bar, maks. 7 bar. bar. Serres Q-Vac er utstyrt med tilbakeslagsventil. Serres Q-Vac is meant for professional use and the device Serres Q-Vac skal brukes av kvalifisert personell og kun i should be used for the purpose advised by the manufacturer.
  • Page 4 Huoltosarja / Service pack Servicesats / Vedlikeholdsserien / Wartungsset...
  • Page 5 Serres Special Sound Absorber can replace what spesiallyddemper kan byttes til Q-vac sugeejektorer 57965, is being used as a substitute in Serres Q-Vac suction ejectors 57966, 57967, 57972, 57973, 57974, 57975. Bruksanvisning 57965, 57966, 57967, 57972, 57973, 57974 and 57975.
  • Page 7 Bruksformål: Application: Serres nippel for fjerning av gass er tilleggsutstyr til The Serres degassing pipe nipple is an accessory to the sugeejektor Serres Q- Vac. Ved hjelp av nippel og dertil Serres Q-Vac Suction Injector. Through the use of the...
  • Page 8 Huolto-Ohje Instructions for Maintenance Vedlikeholdsinstruksjon Service instruktion Wartungsanleitung 57966 57974 57967 57975 Ejector model Spare parts Part Name 57965 57966 57967 57972 57973 57974 57975 O-ring 8,73x1,78 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs O-ring 2,57x1,78 1 pc 1 pc...
  • Page 9 57965 57972 57973...
  • Page 10: Instructions For Maintenance

    Serres Q-vac. Om det i forbindelse The device is provided with a guard against back- med sugeprosessen kommer urenheter inn flow. If in connection with the suction process I apparatet, må...
  • Page 11 Huollon jälkeen laitteen toiminta tulee testata: - paineilma säädetty 5,2 bar +/- 0.2 bar - säädettäessä alipaine maksimiin tulee Q-Vacin saavuttaa arvot: · alipaine > 80 kPa · imuvirtaus > 27 l/min · pikasulkuventtiili katkaisee imun · alipainesäädin toimii · painemittari toimii Service instruktion: Wartungsanleitung: Das Gerät darf nur von für die Wartung von...
  • Page 12 Manufacturer: Serres Oy Keskustie 23 FI-61850 Kauhajoki as Finland www.serres.com...
