Ammonia Detector - Manual
Electrochemical Transmitter
1
Intended for use
2
Functional Description
3
Mounting
3.1
Mounting instructions
3.2
Installation
4
Electrical Connection
4.1
Instruction
5
Commissioning
5.1
Calibration
5.2
Manual Calibration
5.2.1
Zero-point
5.2.2
Gain
5.2.3
Calculation of Control Voltage
5.3
Calibration with GCD-05 Service Tool
5.4
Calibration with GCD-05 Configuration and Calibration Software
5.5
Addressing, only for GCD-05_Bus Mode
5.6
Option relay output
6
Inspection and Service
6.1
Inspection
6.2
Calibration
6.3
Exchange of sensor element
7
Troubleshooting
7.1
Analoge Mode
7.2
GCD-05_BusMode
8
Cross-sensitivity Data
9
Specifications
10
Figures
11
Notes and General Information
11.1
Intended product application
11.2
Installers' responsibilities
11.3
Maintenance
11.4
Limited warranty
NH3/ENH3
Automatikprodukter
April.10
Advertisement
Table of Contents
Related Manuals for AP NH3
Summary of Contents for AP NH3

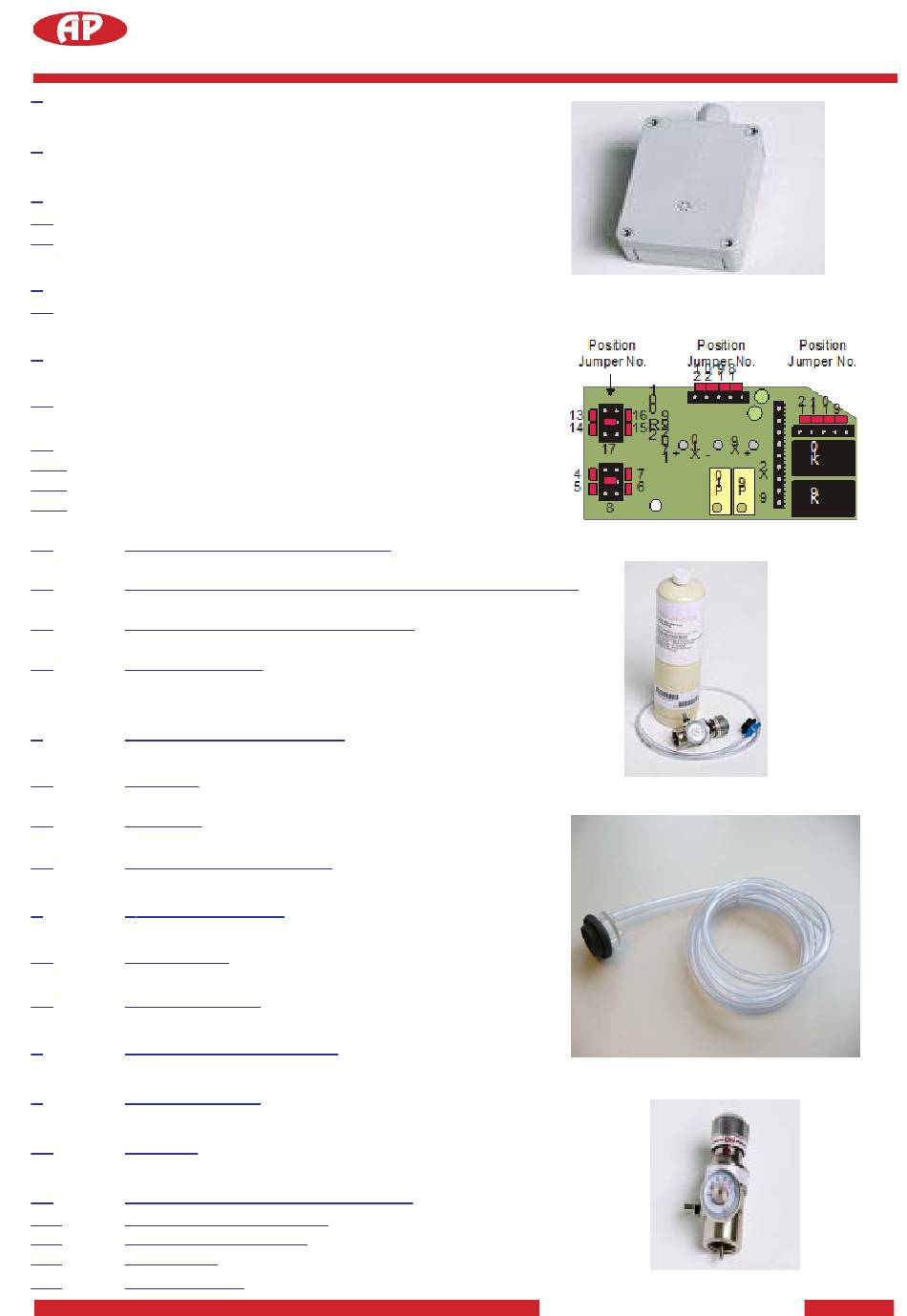

- Page 1 Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 Intended for use Functional Description Mounting Mounting instructions Installation Electrical Connection Instruction Commissioning Calibration Manual Calibration 5.2.1 Zero-point 5.2.2 Gain 5.2.3 Calculation of Control Voltage Calibration with GCD-05 Service Tool Calibration with GCD-05 Configuration and Calibration Software...
-
Page 2: Functional Description
Analog mode: The analog output can be selected as current signal with (0)4-20 mA or as voltage signal (0)2-10 V. In the 4-20 mA mode and without any supplementary options, the NH3/ENH3 also works in the 2-wire technique. DGC-05_Bus mode: The transmitter can be connected to the GCD-05 system via the RS-485 interface. -
Page 3: Installation
Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 Installation Note: Electronics can be destroyed by static electricity. Therefore, do not touch the equipment without a wrist strap connected to ground or without standing on a conductive floor. Mounting instructions •... - Page 4 Ammonia detector - Manual Electrochemical Transmitter NH3/ENH3 April.10 Wiring connection • Unscrew cover of enclosure. • Unplug basic PCB from terminal blocks. • Connect cable leads to terminal block X4. • Plug the PCB in the fixed terminal blocks on base.
- Page 5 Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 Software calibration via PC In the standard version (equipped with the communication connector X12) calibration can also be done by means of the configuration and calibration software. Software calibration is possible for both control modes.
- Page 6 Ammonia detector - Manual Electrochemical Transmitter NH3/ENH3 April.10 Calibration with GCD-05 Service Tool • Connect the GCD-05 Service Tool to the transmitter, open menu ”Calibration”. • Enter measuring range and test gas concentration. • Connect calibration adapter carefully to the sensor element •...
- Page 7 Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 Addressing, only for GCD-05_Bus Mode In the GCD-05_Bus mode each transmitter gets its communication address. In the standard version with the communication connector X12, addressing is done by means of the GCD-05 Service Tool or by the GCD-05 Configuration and Calibration Software.
-
Page 8: Service And Inspection
Inspection, service and calibration of the transmitters have to be done by trained technicians and executed at regular intervals. We therefore recommend to conclude a service contract with AP or one of their authorized partners. Calibration (See section 5.1 and 5.2) •... -
Page 9: Cross Sensitivity Data
Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 GCD-05_Bus Mode Trouble Cause Solution Yellow LED not shining Power voltage not applied Measure tension at X4:Pin 1 (+) and 2 (-) PCB not plugged in correctly at X4/X5 Replug PCB correctly... - Page 10 Ammonia detector - Manual Electrochemical Transmitter NH3/ENH3 April.10 Technical Data General sensor performances Gas type Ammonia (NH3) Sensor element Electrochemical, diffusion Measuring range 0 - 300 ppm / 0 - 1000 ppm Pressure range Atmosphere ± 15 % Humidity 15 – 90 % RH non condensing Storage temperature range 5 °C to 20 °C...
- Page 11 Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 Electrical Power supply 18 - 28 VDC/AC, reverse polarity protected Power consumption (without options) 22 mA, max. (0,6 VA) Output signal Analog output signal (0) 4 – 20 mA, load ≤ 500 Ω,(0) 2 - 10 V; load >50 kΩ...
- Page 12 Ammonia detector - Manual Electrochemical Transmitter NH3/ENH3 April.10 Figures Connection Diagram Two-wire connection by 4-20mA without option Three-wire connection - Vdc outputsignal - 0-20mA output signal - Relay output - LCD display - Heating Connection field bus and tension GCD Gas Controller...
- Page 13 Ammonia Detector - Manual NH3/ENH3 Electrochemical Transmitter April.10 Fig.3 PCB Terminal Option Manual Position Addressing 4 3 2 1 Anal. Output Start Point = 20 % Option = 0 % Manual Calibration 0-20% Zero Sensor Option X A3 -1...
-
Page 14: Notes And General Information
The above warranty is in lieu of all other express warranties, obligations or liabilities. This warranty applies only to the AP transmitter. AP shall not be liable for any incidental or consequential damages arising out of or related to the use of the AP transmitters.
