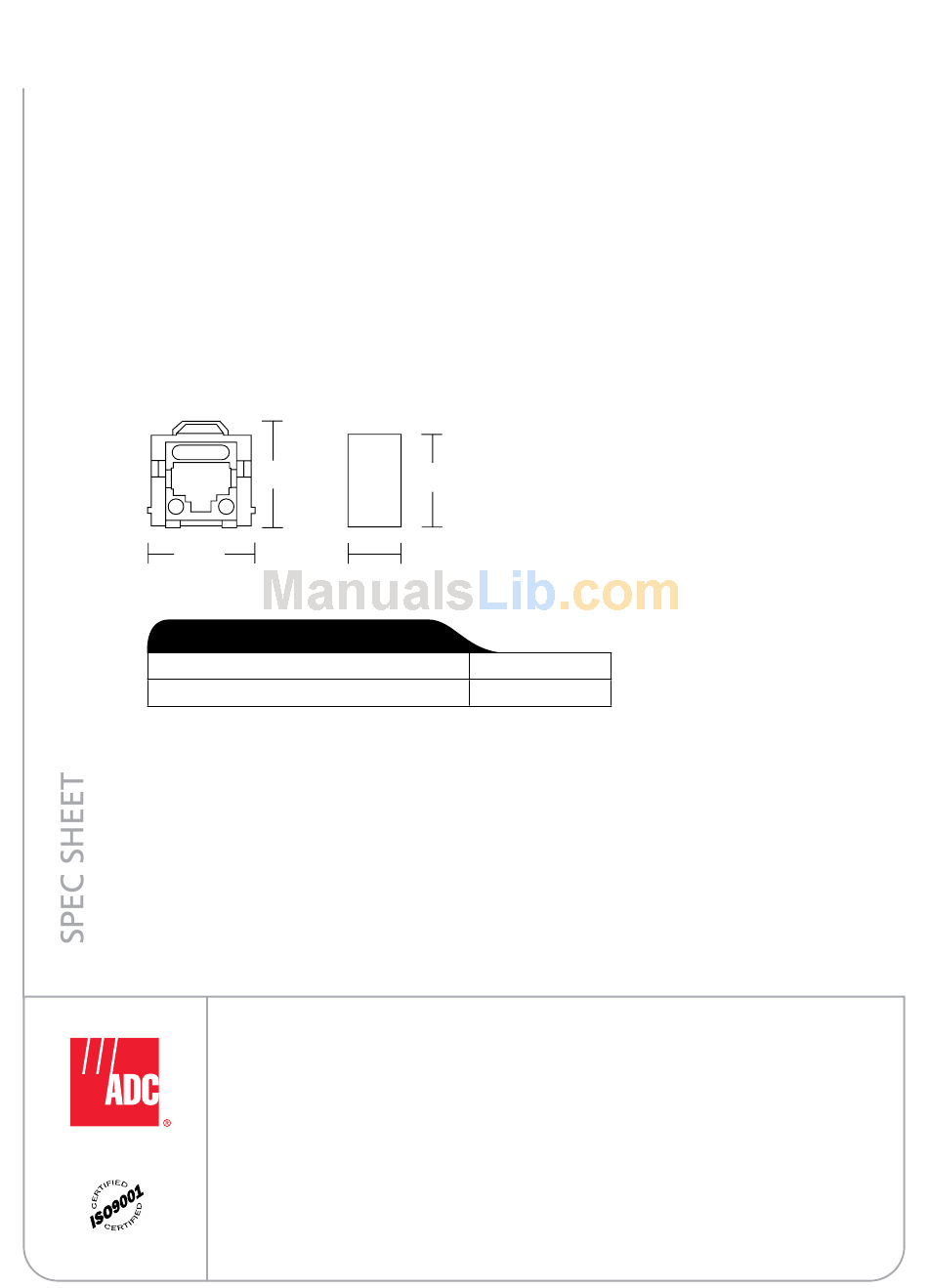

Specifications Overview; Ordering Information - ADC CopperTen Modular Jack Specification Sheet

Specifications
Operating Temperature Range:
RJ Socket, 8 Positions, General Specification:
Transmission Performance and Reliability:
Number of Plug Insertion Cycles:
LSA-PLUS Insulation Displacement
Wire Diameter Range for Solid
and Stranded Copper Conductors:
Wire Insulation Diameter Range
(PE, PVC):
Contact Resistance:
Contact Re-termination:
Insulation Resistance at 40 °C (104 °F) and 93% RH:
Safety Rating:
Flammability Rating:
ADC
22.4 mm
(.880")
20.9 mm
(.825")
O r d e r i n g I n f o r m a t i o n
Description
CopperTen RJ45 UTP modular 568A/B jack
®
Substitute XX in the part number for the desired color
01=White, 02=Ivory, 03=Gray, 04=Black, 05=Red, 06=Blue, 07=Green, 08=Yellow, 09=Purple, 10=Orange
Website: www.adc.com
From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080
Fax: +1-952-917-3237 • For a listing of ADC's global sales office locations, please refer to our website.
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
105506AE 5/08 Revision © 2008, 2007, 2005 ADC Telecommunications, Inc. All Rights Reserved
19.227 mm
(0.787")
14.859 mm
(0.585")
Catalog Number
6830 1 835-XX
-10° to 60° C (14° to 140° F)
FCC Part 68.500 (IEC 60603-7)
TIA/EIA 568-B.2-10 standards
≥750 (IEC/EN 60603-7)
22-24 AWG 0.50 mm to 0.65 mm (0.019" to 0.025")
1.04 mm to 1.60 mm (0.041" to 0.063")
≤ 1 mΩ typical
≥ 200
≥ 500 MΩ (IEC 512-2-30)
UL 1863
UL 94 V-0
