Promet Master Series Assembling Instructions

Assembling instructions series Master workbench
Worktop M-100/MT-100
Drawer M-140
Shelf M-100
Beam M-90
Assembling frame MF-1

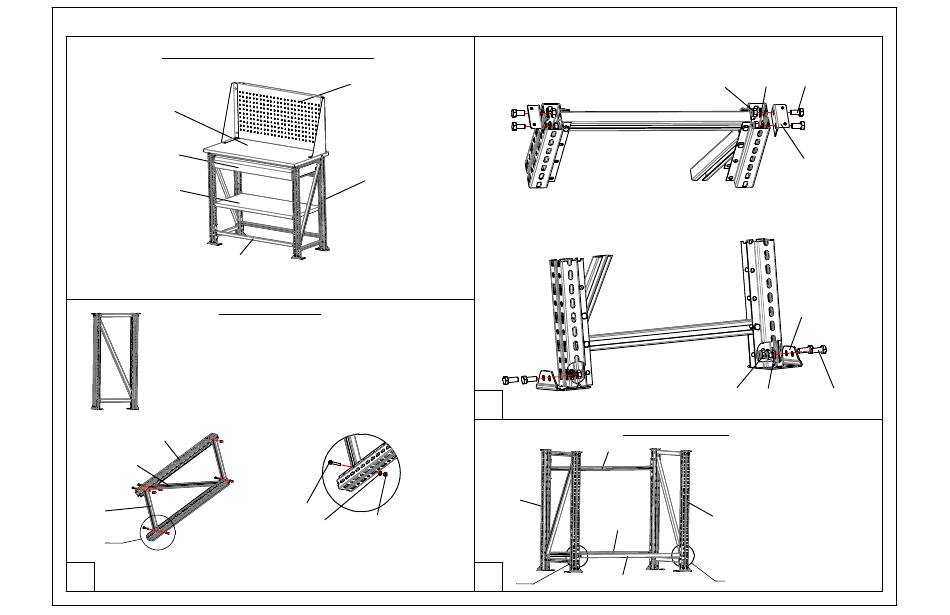

1. Using bolts М6х40 (and nuts and collars), assemble horizontal
and diagonal beams and stands as it's shown at the picture.
Bottom horizontal beam should be fitted to the 2nd hole of the
stand, top horizontal beam should be fitted to the 2st hole of the
stand at the top.
IMPORTANT: do not fix the beams bolts too tight – you will do it later.
Stand MF-1
Diagonal beam
Horizontal beam
A
1
Panel WS-100
Frame MF-1
View A
(assembling horizontal and diagonal beams to the stand)
Bolt М6х40
Nut М6
Collar М6
page 1/6
2. Using bolts М8х16 (and nuts and collars) attach worktop brackets to the stands.
Brackets should be fitted to the first rectangular holes at the top of the stands and aligned
top of the stands.
3. Using bolts М8х16 (and nuts and collars) attach floor leg supports (should be ordered
separately). Floor leg supports should be fitted to the first rectangular holes at the bottom
of the stands.
1
Assembling beams M-90
Beam M-90
Frame MF-1
Beam M-90
2
B
Beam M-90
Edition 8, 05.06.18
Nut М8 Collar М8 Bolt М8х16
Worktop bracket
Worktop bracket
Nut М8
Collar М8 Bolt М8х16
After assembling beams tight all the
bolts hard. In case if you assemble
drawer M-140 fix the drawer brackets
(Point 8 of this instruction).
Frame MF-1
C
page 2/6
