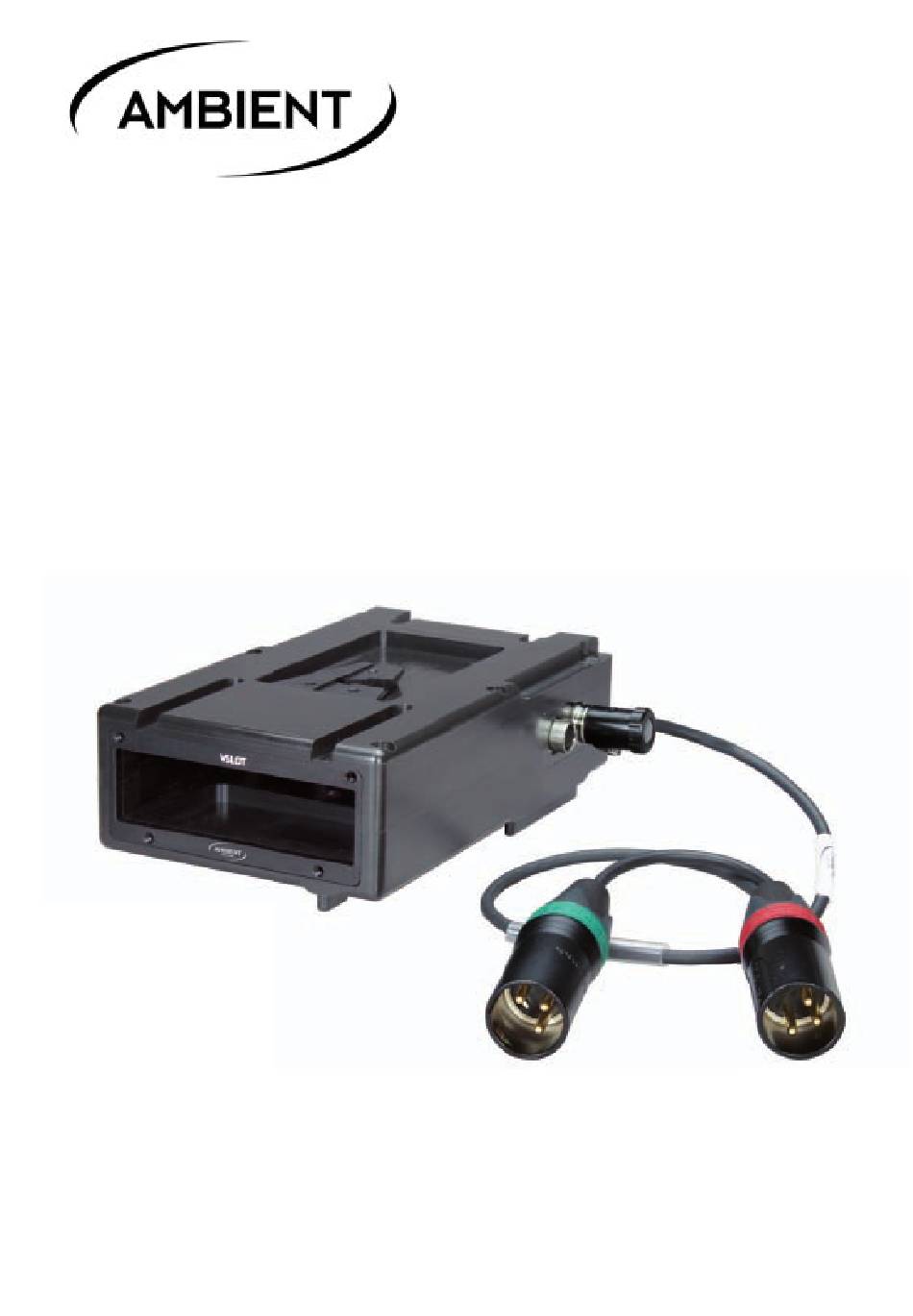

  • Page 1 Receiver Slot V-Mount Chassis VSLOT experience quality.

  • Page 2: Table Of Contents

    2. Safety Instructions 3. Unit Description 4. Getting Started 5. Fused Hirose Socket 6. Easy Modification 7. Specifications 8. Wiring Informations VSL-TA5F90L-2XLR3M VSL-TA5F90L-XLR5M VSL-TA5F90L-XLR3M VSL-2TA3 9. Cables VSL-TA5F90L-2XLR3M VSL-TA5F90L-XLR5M VSL-TA5F90L-XLR3M VSL-2TA3 Warranty & Approvals Warranty Approvals ©2018, Ambient Recording GmbH...

  • Page 3: Package Content

    VSLOT 1. Package Content V-Mount Slot  Standard connection cable (VSL-TA5F90L-2XLR3M)  Manual  2. Safety Instructions Do not oppose the unit to humidity.  Before cleaning the unit, remove the receiver; unmount the slot from the camera. Use a ...

  • Page 4: Unit Description

    Unislot connector (25-pin sub-D) Camera power receptacle V-Mount (female) for battery Battery release lever V-Mount (male) for camera Battery power connector Slot for wireless receiver with UNISLOT connector Threads to screw lock the receiver UNISLOT receptacle for receiver ©2018, Ambient Recording GmbH...

  • Page 5: Getting Started

    VSLOT Panels Cable Right side Battery release lever 4. Getting Started Before sliding-in the receiver into the V-SLOT, check the position of the screws and the orientation of the UNISLOT connector, if your receiver is directed right. After sliding-in the receiver, fix it with the screws of the receiver.

  • Page 6: Fused Hirose Socket

    VSLOT 5. Fused Hirose Socket In addition to the audio outputs from the receiver, the VSLOT offers a looped DC output from the battery via a standard Hirs 4-pin socket. This is protected by a self-resetting fuse, current rated 1.85 A, release by 3.7 A / 8.7 s.

  • Page 7: Easy Modification

    VSLOT 6. Easy Modification The VSLOT features three mounting panels for connectors. One carries the connectors and is by standard installed at the right side of the VSLOT, because the connector on bottom caused problems with some cameras. www.ambient.de/en...
  • Page 8 The bottom panel is split, so the side panel that carries TA5 and Hirose connector can alternatively be inserted on bottom left, bottom right or on the side – takes only a minute to reconfigure, no soldering inserted on bottom left, bottom right or on the side – takes only a involved. involved. ©2018, Ambient Recording GmbH...
  • Page 9 VSLOT Additional connectors can be installed on the two remaining free panel (holes need to be drilled). This way, the item is much more versatile, this is what the users asked for. www.ambient.de/en...

  • Page 10: Specifications

    V-Mount equipped camera Battery: every V-Mount equipped battery supply Radio Receiver: all receivers equipped with an Unislot connector (25-pin sub-D) VSLOT Audio Output: TA5M receptacle DC out (looped): via 4-pin Hirose, 1.85 A. fuses resetting Included adaptor cable: TA5F90L to 2x 3-pin XLR male for stereo reception Length: approx.

  • Page 11: Wiring Informations

    VSLOT 8. Wiring Informations VSL-TA5F90L-2XLR3M TA5F90L to double 3-pin XLR male Cable: 35 cm Per4x0.10 16 cm Per2x0.14CP VSL-TA5F90L-XLR5M TA5F90L to 5-pin XLR male Cable: 65 cm Per4x0.10 VSL-TA5F90L-XLR3M TA5F90L to 3-pin XLR male Cable: 28 cm Per2x0.14 TA3F TA5F...

  • Page 12: Cables

    VSLOT 9. Cables VSL-TA5F90L-2XLR3M Standard connection for V-Mount Slot, delivered with VSLOT slide-in module TA5F90L to double 3-pin XLR male VSL-TA5F90L-XLR5M Connector cable for V-Mount Slot to cameras with 5-pin XLR connection e.g. ARRI ALEXA TA5F90L to 5-pin XLR male...

  • Page 13: Warranty & Approvals

    ONE (1) year from date of original retail purchase. This is a non- transferable warranty that extends only to the original purchaser. Ambient Recording GmbH will repair or replace the product at its discretion at no charge. Warranty claims due to severe service conditions will be addressed on an individual basis.

  • Page 14: Approvals

    Manufacturer´s Name: Ambient Recording GmbH Manufacturer´s Address: Schleissheimer Str. 181 C DE ‒ 80797 Munich, Germany declares that the product: VSLOT, V-Mount Chassis is conformity with: Document No. EN 301 489-01 EN 301 489-09 FCC-Code of Federal Regulations, CFR47, Part 15, Sections 15.107 and 15.109 (Class B) Industry Canada Interference-Causing Equipment Standard ICES-003 Issue 4, Sections 5.3 and 5.5 (Digital Apparatus)
  • Page 15 MADE IN GERMANY Ambient Recording GmbH Schleissheimer Straße 181 C | DE – 80797 Munich | vox +49 89 360 55 10-0 | fax +49 89 6518558 www.ambient.de/en | info@ambient.de © 2018, Ambient Recording GmbH...
