Summary of Contents for eltima electronic Joker
-

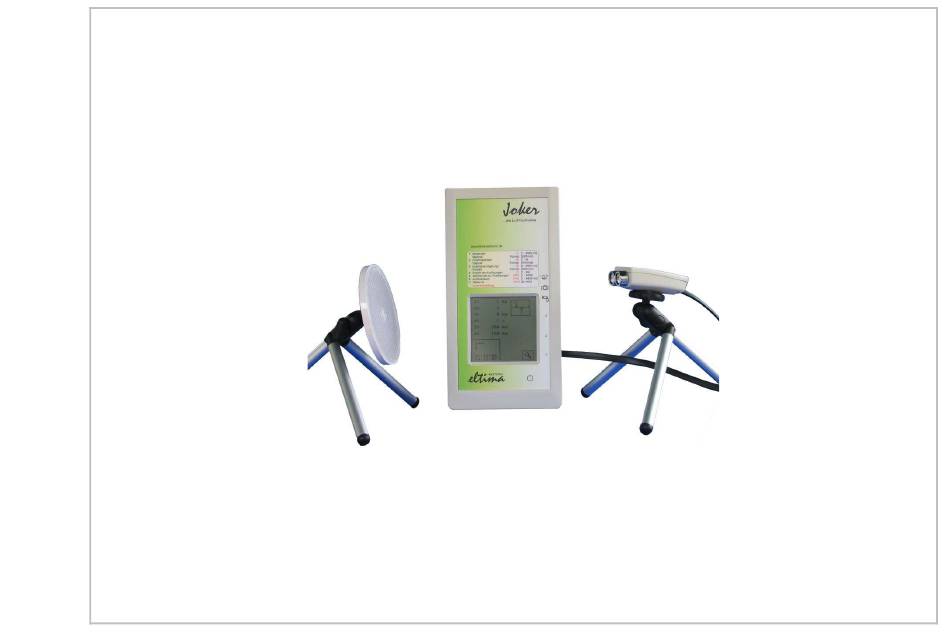

Page 1: Einfache Lichtschranke
Joker Light barrier system Draft instruction manual Stand: März 05 V1.04... -
Page 3: Richtungs-Lichtschranke
Component description © eltima electronic 2003... -
Page 4: Table Of Contents
Grundprinzip..............1 7 Der Einlernvorgang............17 Die Auslösung..............1 7 Funktionsparameter............18 Abtastrate, Parameter 1..........1 8 Empfindlichkeit, Parameter 2.........18 Auslöseverzögerung, Parameter 3........18 Anzahl de Auslösungen, Parameter 4......18 Zeitintervall zwischen den Auslösungen, Parameter 5..19 Auslösedauer, Parameter 6...........19 Wake-Up, Parameter 7..........19 © eltima electronic 2003... -
Page 5: Einleitung
In this way this product is able to meet your require- ments. Please read this instruction manual carefully before using the Joker. You should be familiar with the functionality of this system to achieve best results in different situations. © eltima electronic 2003... -
Page 6: Hinweise Zur Handhabung
/ camera etc. Care and stocking • The light barrier Joker is not waterproof and is unsui- table to be used in rain or under water. If the device is getting wet then contact immediately to the manufac- turer. Wipe off waterdrops with a dry cloth. -
Page 7: Einlegen Der Batterien
2. Insert the new battery into the battery holder (as indicated on the battery holder or board) Be careful to observe the correct polarity ! 3. Close the back battery cover and srew up the bolts with small pressure only. © eltima electronic 2003... -
Page 8: Anschluss An Eine Externe Spannungsquelle
Output voltage must be between 3V and 9V DC. Power output 500 mW at least. • Connect the power supply unit with a 5 mm male connector (for low voltage) to the DC-plug socket. Be careful to observe the correct polarity of the connector ! © eltima electronic 2003... -
Page 9: Anschluss Der Lichtschrankenköpfe
The following sheme shows the assignment of the light barrier heads: Type of light barrier Slot Simple light barrier Cross-over or direction light barrier Curtain(Vorhang), direction depended 1, 2, 3 cross over ligth barrier ( Richtungskreuzlichtschranke) //TODO © eltima electronic 2003... -
Page 10: Gerät Ein- Und Ausschalten
To turn off the device press this button again. Important! After switching on the device the light barrier is not actived yet. You have to activate it first! © eltima electronic 2003... -
Page 11: Bedienung
Press NO if you want to discharge the changes. Parameter 7 (Wake-Up) is located in the lower unvisible part of the parameter list. To change this parameter it is neccessary to press the Down-Button till parameter 7 will get visible. © eltima electronic 2003... - Page 12 The selection depends on the number of plugged light barrier heads. For example a mode which need two heads can only be selected if two heads are plugged in. The time-mode (camera release) is always possible. © eltima electronic 2003...
-
Page 13: Ausrichten Der Lichtschrankenköpfe
( 6..9 ). For distances less than 1,5 m between the head and the reflector use smaller reflectors (accessory). For distances less than 40 cm a gray paper board can be used instead of a reflector. © eltima electronic 2003... -
Page 14: Aktivieren Der Lichtschranke
A release is displayed in the form of a camera symbol at the right part of the display. The occurrance of the camera symbol is useful to adjust the system without already having connec- ted your camera. If the results are as desired do connect your camera. © eltima electronic 2003... -
Page 15: Anschließen Der Kamera
Connect the other side with your camera. In case of a self contructed release-adapter plea- se refer to the pin assignment. Camera and flash-light will always be released at the same time. © eltima electronic 2003... -
Page 16: Anschließen Eines Blitzgeräts
Connect the other side to the flash-light devi- In case of a self contructed flash-light release-ad- apter please refer to the pin assignment. Camera and flash-light will always be released at the same time. © eltima electronic 2003... -
Page 17: Funktionsweise Des Lichtschrankensystems
(distance, reflections etc.). The incident light will be analyzed to calculate an average value. Every deviation of this given value results in a release of the camera. The dimension of the deviation is determinated through the sensibility adjusted. © eltima electronic 2003... -
Page 18: Funktionsparameter
A small value means a higher sensitivity. For example to greater than 1). detect objects with a size down to 0,5 mm. However in this case a stable construction is needed. Vibrancies of the head or the reflector will result in unwanted releases. © eltima electronic 2003... -
Page 19: Zeitintervall Zwischen Den Auslösungen, Parameter 5
Auslöseverzögerung Time, the release button of the camera is „pressed“ du- Auslösedauer ring one release procedure caused by the joker. Zeitintervall zwischen den Auslösungen Adjusting the camera in series mode (many pictures per second) it is possible to use the full performance of your camera-system. -
Page 20: Intervall, Parameter 2 (Zweitfunktion)
(Pa- rameter 1). Stoptime, Parameter 3 ( second function) After exceeding the stoptime the camera system will no longer be released. Adjustment format: ddhhmm (day, hour minute). Same format as the starttime. © eltima electronic 2003... -
Page 21: Auslösemodi
In this mode it is possible to adjust the sampling rate to 0. Thus the light barrier reaches its fastest response time of about 350 µs. © eltima electronic 2003... - Page 22 The more acute the angle or the bigger the object the greater the cross area. At a angle of 90° the release-area is the least of all. © eltima electronic 2003...
- Page 23 The camera release depends on the direction if in the first step light barrier one is interrupted and in the next step light barrier two is interrupted. Only this sequence will cause a release of the connected camera system. © eltima electronic 2003...
-
Page 24: Richtungs-Kreuzlichtschranke
1 will be interrupted before the light barriers 2 and 3 will be interrupted at the same time. This configuration is usefull in situations the movement of the wanted object is surely predictable. The behaviour is very selective. © eltima electronic 2003... -
Page 25: Vorhanglichtschranke
The three light barriers could be built-on in different ways: parallel, fan-shaped or warped. Thus it is possible to scan a surface area or rooms for example. With a vertical adjustment in a fixed frame before the camera an easily inscect trap can be built. © eltima electronic 2003... -
Page 26: Zeit-Auslösung
Adjustable are starttime, stoptime as well as a time in- terval. After leaving the adjustment mode the function is active. This means that after exceeding the starttime pic- tures will be taken every time-interval till the stoptime is expired. © eltima electronic 2003... -
Page 27: Einstellen Von Datum Und Uhrzeit
Introduction Einstellen von Datum und Uhrzeit Date and time (left corner of your display) are used only for the Joker's Time-Trigger function. Adjustment instructions: • Press the adjustment-button to get in the adjustment mode. • Press the adjustment-button again. You get into the date-time-mode to change the current settings. -
Page 28: Technische Daten
Handheld (without batteries): 250 g type, (tested with usual alkali-batteries). Head: 35 g Power supply 4 Batteries or rechargeable batteries, (AA, LR6) DC-Power supply 3 – 9 V/0,5W Power input about 400 mW Range about 8 m © eltima electronic 2003... -
Page 29: Notizen
Introduction Notizen eltima electronic Hans Gierlich Bosslerstraße 33 73230 Kirchheim u. Teck Tel: 07021-863444 Fax: 07021-863444 Email: mail@eltima-electronic.de URL: http://www.eltima-electronic.de © eltima electronic 2003...
