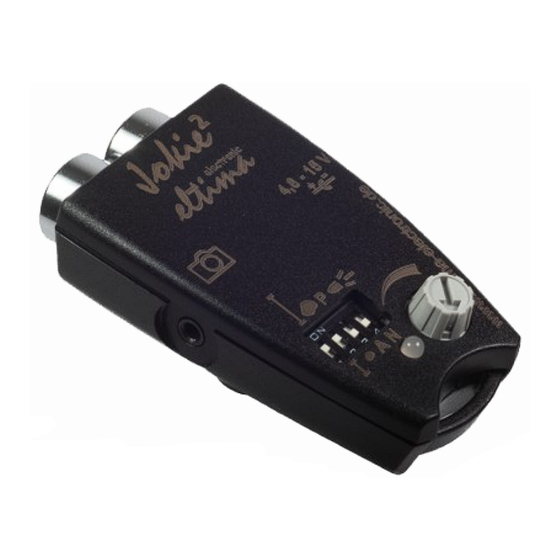

Summary of Contents for eltima electronic Jokie 2

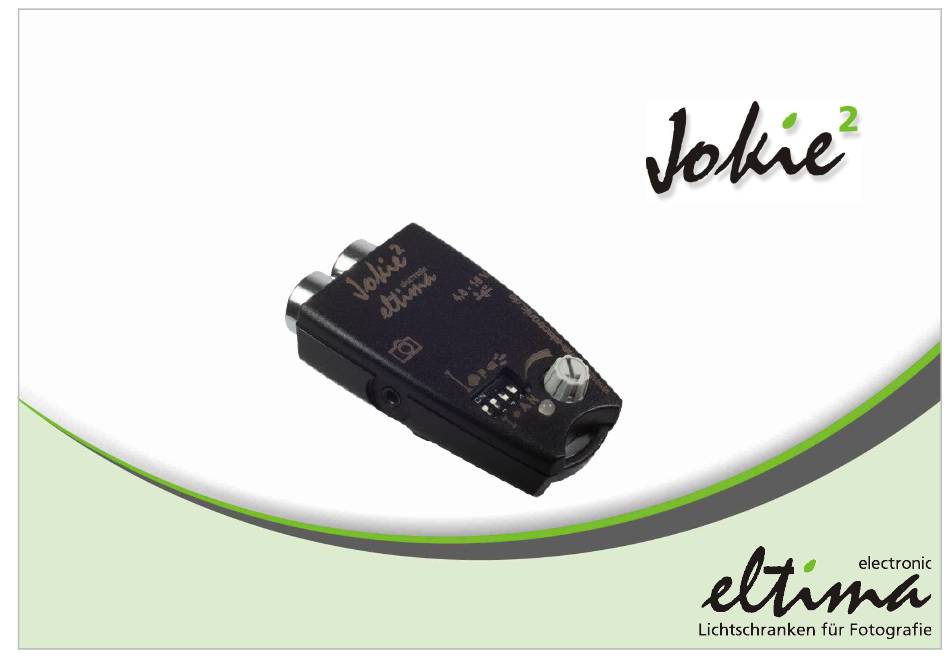

- Page 1 User's Manual light barrier...
- Page 2 Ver: 1.0.3...
-
Page 3: Description Of Components
Description of components Description of components receiver infrared transmitter potentiometer DC-plug camera socket tripod socket operating mode switch light barrier DC-plug battery case 80 mm reflector velcro tape 40 mm reflector © eltima electronic 2013... -
Page 4: Table Of Contents
Focal plane parallel to light beam..........19 Focal plane parallel to flight path...........20 Using the geometry of the subject.........20 Working with the sensitivity of the light barrier.......21 Taking pictures of small objects..........21 Blanking out of smaller objects..........21 © eltima electronic 2013... -
Page 5: Introduction
• Please remove the batteries in case you should not use the device for some time. This will prevent any leaking of the batteries. • Please clean the lenses occasionally with a soft cloth. © eltima electronic 2013... -
Page 6: Quick Start
• Install the light barrier and the 40mm reflector on one beam. The camera will be released. tripod each. • Plug the DC-plug in the DC-plug of the light barrier. At this point the LED will shine green. © eltima electronic 2013... -
Page 7: Functional Concept
Image 6: Light beam is interrupted This principle of function offers several advantages. First of all only one device, the light barrier itself, needs power supply, the other side, the reflector, is passive. © eltima electronic 2013... -
Page 8: The Light Beam
3-5 mm. The objects to be detected be the light barrier need to meet and interrupt this beam. The small diameter brings a very precise and repeatable switching point of the light barrier. © eltima electronic 2013... -
Page 9: Reflectors
It is totally sufficient when it looks roughly towards the latter. Solely for reaching the maximum working distance the reflector should be aligned precisely. © eltima electronic 2013... -
Page 10: Sensitivity
The less light is emitted by the IR-sender, the less will be returned to the receiver and thus the smaller the objects can be and still bring about a release of the camera. © eltima electronic 2013... -
Page 11: Operating Modes
Switch for the reach Switch for the size of objects Symbol for small objects Symbol for a small reach Image 9: Switch symbols © eltima electronic 2013... - Page 12 Table 2 shows the maximum reaches when using reflectors The following tables show how the sensitivity, which deter- offered by eltima electronic. mines the smallest detectable object in mm, depends on the size of the reflector and the working distance (distance...
- Page 13 Reflector Working distance Reflector 20 mm 40 mm 80 mm 20 mm 40 mm 80 mm Table 5: Sensitivity in mm, using switch position: large, small Table 4: Sensitivity in mm, using switch position: small, large © eltima electronic 2013...
-
Page 14: Release Delay, Lag Time
A strongly bent characteristic curve allows a very precise setting of up to one second, afterwards a rough setting of up to 10 seconds. The delay time is active in all operating modes except for the passive-mode, see Thunderstorm photography. © eltima electronic 2013... -
Page 15: Thunderstorm Photography
The operating mode switch can be turned with a pen, ballpoint pen or with a pair of tweezers that is not too peak. © eltima electronic 2013... -
Page 16: Keep-Active Mode
10 minutes similar to pressing the shut- and 4, see Image 13. ter button halfway down. The wake-up function is always active, it can not be Switches 3 and 4 turned on or off. to ON Image 13: activating the keep-active mode © eltima electronic 2013... -
Page 17: Taking Pictures With Jokie²
(im- age 14), otherwise you might move the light beam around the reflector and miss it (image 15). Image 15: missing the reflector © eltima electronic 2013... -
Page 18: Finding The Midpoint Of The Reflector
– the camera will be released if the subject will travel a certain distance away from the beam. light beam is interrupted. The right focus point has to be determined by a number of trials. © eltima electronic 2013... -
Page 19: Aligning The Camera Towards The Camera And The Subject
16. Moreover, in this context it is irrelevant whether the light beam is positioned horizontally or vertically. Image 17: focal plane is crossing the beam Image 16: Focal plane parallel to light beam © eltima electronic 2013... -
Page 20: Focal Plane Parallel To Flight Path
20. Image 20: bird photography using a horizontal beam © eltima electronic 2013... -
Page 21: Working With The Sensitivity Of The Light Barrier
21, until you get the sensitivity you wish to work with. Image 21: increasing the sensitivity © eltima electronic 2013... -
Page 22: Taking Pictures Without Reflectors
– especially when working with small focal lengths and thus with larger depths of field or when the objects are small compared to the depth of field. Table 7 shows the reflector´s possible reaches when using the palm of one´s hand as reflector. © eltima electronic 2013... -
Page 23: Connections
200 mA each. Plus (+), outside contact Image 24: Pinning of the DC plug release measure GND – Minus, common pole Image 23: pinning of the camera connector © eltima electronic 2013... -
Page 24: Specifications
(tested with average alkaline cells) Reach with 80 mm Reflector Switch position: small distance, small objects: 1,3 m small distance, large objects: 8 m large distance, small objects: 12 m large distance, large objects: 16 m © eltima electronic 2013... -
Page 25: Notes
Notes Notes © eltima electronic 2013... - Page 26 Hans Gierlich Staufenstraße 10 73230 Kirchheim unter Teck Tel: 07021-863444 Fax: 07021-863444 Email: mail@eltima-electronic.de URL: http://www.eltima-electronic.de © eltima electronic 2013...
