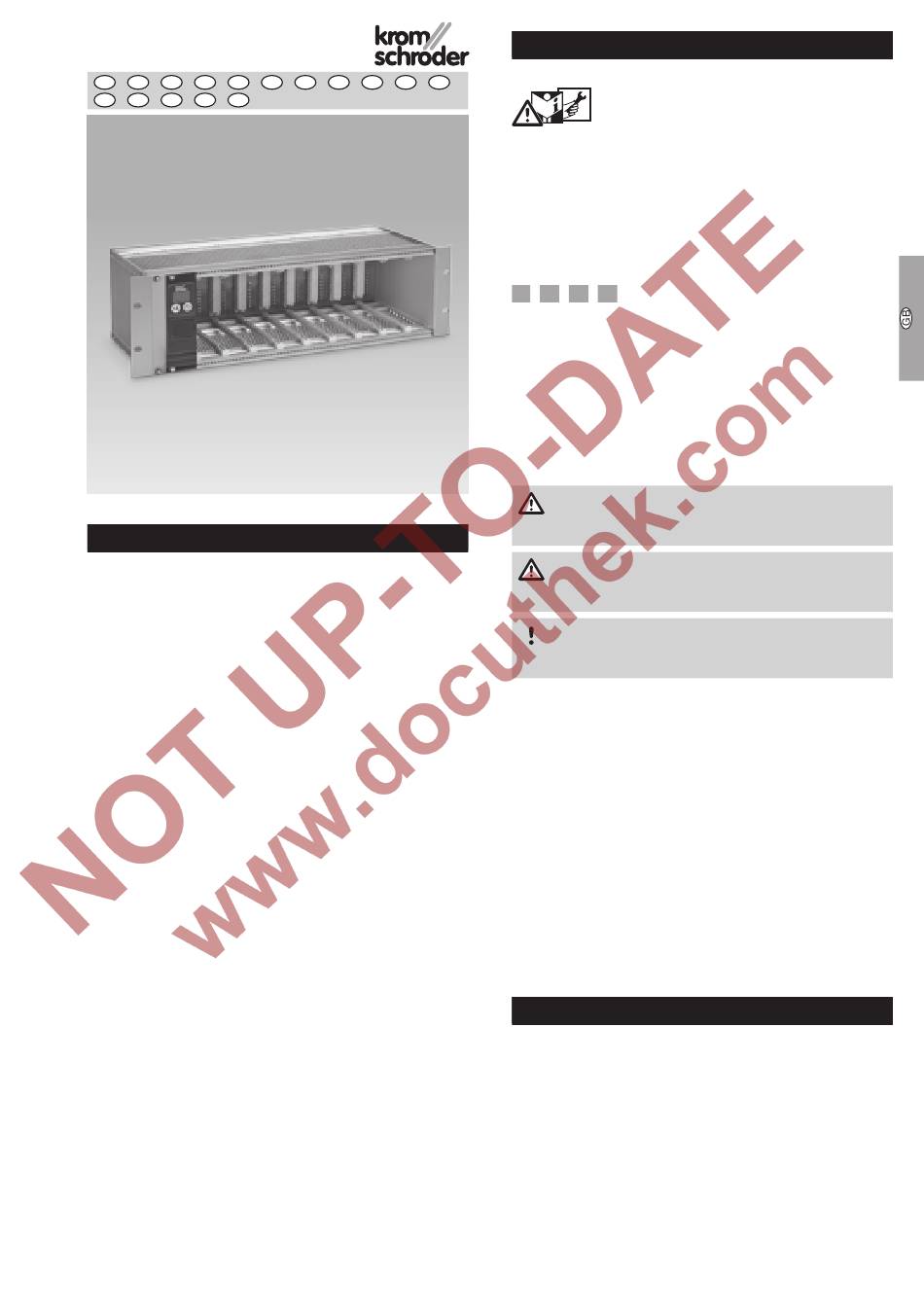

Kromschroder PFA Series Operating Instructions Manual

Fieldbus interface. module subrack
Hide thumbs
Table of Contents

Advertisement

Quick Links

05097 Edition 06.
D
GB
F
NL
I
TR
CZ
PL
RUS
H

Operating instructions
Fieldbus interface PFA
Module subrack BGT
Translation from the German
© 2013 Elster GmbH
Contents
Fieldbus interface PFA
Module subrack BGT . . . . . . . . . . . . . . . . . . . . 
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
Checking the usage . . . . . . . . . . . . . . . . . . . . . 
Installing the BGT. . . . . . . . . . . . . . . . . . . . . . . 
Wiring the BGT . . . . . . . . . . . . . . . . . . . . . . . . . 
BGT SA-9U/1DP . . . . . . . . . . . . . . . . . . . . . . . . 3
BGT SA-8U/1DP . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting the PFA. . . . . . . . . . . . . . . . . . . . . . . . . 
PFA 700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PFA 710. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Address setting . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing the PFA . . . . . . . . . . . . . . . . . . . . . . . 4
Replacing the PFA . . . . . . . . . . . . . . . . . . . . . . 4
Labelling the PFA . . . . . . . . . . . . . . . . . . . . . . . 5
Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . 5
Manual operation . . . . . . . . . . . . . . . . . . . . . . . 5
at the factory . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 
Declaration of conformity . . . . . . . . . . . . . . . 
Approval for Russia . . . . . . . . . . . . . . . . . . . . . 12
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
E
DK
S
N
P
GR
www.docuthek.com
Safety
Please read and keep in a safe place
Please read through these instructions
carefully before installing or operating. Following the
installation, pass the instructions on to the opera-
tor. This unit must be installed and commissioned
in accordance with the regulations and standards
in force. These instructions can also be found at
www.docuthek.com.
Explanation of symbols
• ,  ,  ,  ... = Action
▷
= Instruction
Liability
We will not be held liable for damage resulting from
non-observance of the instructions and non-com-
pliant use.
Safety instructions
Information that is relevant for safety is indicated in
the instructions as follows:
DANGER
Indicates potentially fatal situations.
WARNING
Indicates possible danger to life and limb.
CAUTION
Indicates possible material damage.
All interventions may only be carried out by qualified
gas technicians. Electrical interventions may only be
carried out by qualified electricians.
Conversion, spare parts
All technical changes are prohibited. Only use OEM
spare parts.
Transport
On receipt of the product, check that the delivery is
complete (see Part designations). Report any trans-
port damage immediately.
Storage
Store the product in a dry place. Ambient tempera-
ture: see Technical data.
Changes to edition 09.
The following chapters have been changed:
-
Accessories
-
Declaration of conformity
GB-1
