Summary of Contents for Mobius M210

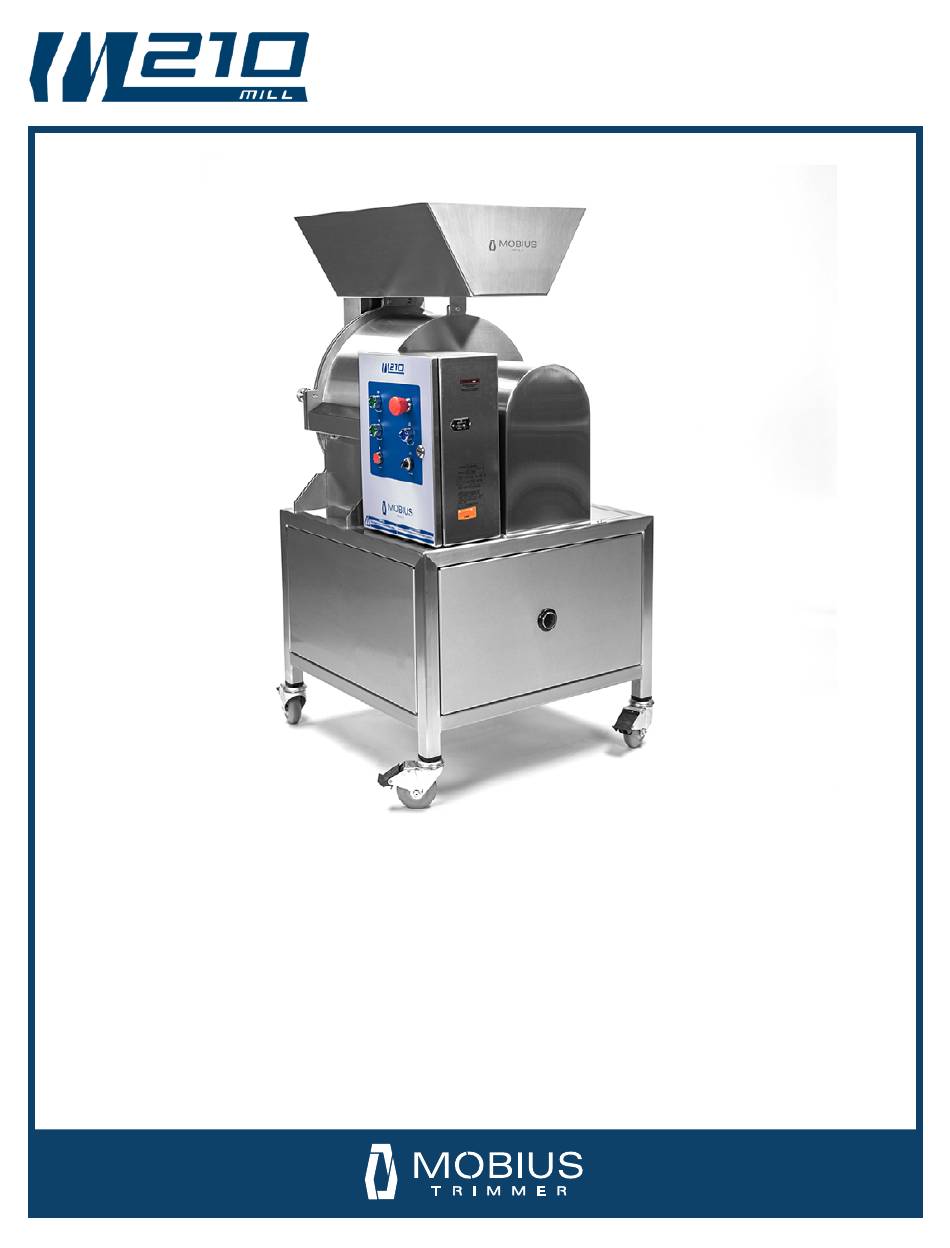

- Page 1 USER GUIDE © 2 0 2 0 E T E R O S T E C H N O L O G I E S I N C . A L L R I G H T S R E S E R V E D . U G 2 0 0 6 M 2 1 0...
- Page 2 CONTENTS...
-
Page 3: Table Of Contents
This User Guide is a comprehensive manual covering the operation and maintenance of the Mobius M210 Mill processing machine as of the date of publication. ETEROS TECHNOLOGIES reserves the right to make updates to the machine from time to time. In the event of an update, this User Guide will remain appropriate for the safe operation and maintenance of your unit. -
Page 4: Safety
SAFETY MOBIUS MILL M210 USER GUIDE... -
Page 5: Safety Instructions
Do not operate the MOBIUS M210 MILL when fatigued. Be alert - If tired while operating the device, take a break. Fatigue may result in loss of control. Working with any equipment can be strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor before operating the device. -
Page 6: Warning Labels
Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service technician). Should the need arise, please notify: ETEROS TECHNOLOGIES 502-130 INDUSTRIAL AVE. CARLETON PLACE, ONTARIO, CANADA K7C 3T2 www.ETEROS.com Improper interfacing, improper repair, or unauthorized modification could result in void warranty claims. MOBIUS MILL M210 USER GUIDE... -
Page 7: General Safety Precautions
Any damaged part including guards should be properly repaired or replaced. 14. ALWAYS WEAR EYE PROTECTION. 15. Hearing protection is generally not required when operating the M210. We recommend that noise levels are monitored to ensure that all local, municipal, provincial and federal regulations and recommendations are adhered to. -
Page 8: Preface
PREFACE MOBIUS MILL M210 USER GUIDE... -
Page 9: Intended Use Of Equipment
INTENDED USE The M210 is designed and manufactured for the milling, grinding, blending and consistent particle size reduction for cannabis and hemp. It should be used in a laboratory, clean room or production type environment. To optimize the performance of your M210 please ensure that your product is: Cannabis or Hemp •... -
Page 10: Specifications
Fits Through a 32” Door Width 28” Length 28” Height 52” Weight 265lbs Warranty 1 year Certifications CE and cLCus Certification Accessories • Fine Screen • Medium Screen • Coarse Screen • Custom Carts • Custom Feed Hopper MOBIUS MILL M210 USER GUIDE... -
Page 11: Initial Setup
INITIAL SETUP MOBIUSTRIMMER.COM... -
Page 12: Voltage Configuration
This is done by setting the selectable jumpers for the appropriate voltage. J1A AND J1B (AC LINE INPUT VOLTAGE): Be sure J1A and J1B are set to the actual AC Line input voltage applied to the control. See illustration below: MOBIUS MILL M210 USER GUIDE... -
Page 13: What's In The Box
• MILLING SCREEN DUST COLLECTION PORT Your MOBIUS M210 MILL is equipped from the factory with a dust collection port. Connect a vacuum or dust collection system to your milling machine to minimize the airborne dust generated. NOTE: The dust collection port does not affect the machine operation or throughput. -
Page 14: Operation
OPERATION MOBIUS MILL M210 USER GUIDE... -
Page 15: Operation Prep
Please take the following steps to confirm the MOBIUS M210 MILL is ready to operate: • Ensure that your Mobius M210 MILL has been configured for the appropriate voltage (see p.12) • Complete a thorough inspection of the equipment to ensure no damage occurred during shipment •... -
Page 16: General Operation
While the machine is in operation: 1. Press the stop button to stop rotor motion. Note: The rotor must be stopped prior to toggling direction. 2. Press the forward or reverse button to engage the rotor in the desired direction. MOBIUS MILL M210 USER GUIDE... -
Page 17: Set-Up & Adjustments
PREFORMING ANY SETUP, MAINTENANCE, OR CLEANING TASKS SET-UP & ADJUSTMENTS The Mobius M210 Mill typically requires no set-up or adjustment under normal operating conditions. The particle size and final product consistency is dictated by the milling screen. Eteros Technologies has several screens available for milling and blending. Please consult with our team to determine the screen combination that best suits your needs. -
Page 18: General
GENERAL MOBIUS MILL M210 USER GUIDE... -
Page 19: Cleaning
The machine is designed to be operated on smooth and level floors. If lifting is required, the M210 must be lifted using a forklift on the lower structural frame between the casters. Ensure that the forks are fully spread to avoid overturning or flipping off the forks. -
Page 20: Warranty
Rotor damage is very rare on a MOBIUS M210 MILL and is typically the result of rocks, hard metallic objects, or poor setup. Rotor damage resulting from hard objects entering the milling chamber is not covered under warranty. -
Page 21: Troubleshooting
TROUBLESHOOTING MOBIUS M210 MILL WILL NOT START • ensure the machine is plugged in • ensure the e-stop is disengaged (pulled out) • ensure the start / reset button has been pressed and is illuminated • ensure the rotor is not jammed or lodged BLUE START/RESET BUTTON IS NOT •... - Page 22 Eteros Technologies West Eteros Technologies East 202-17665 66A Ave. 502-130 Industrial Ave. Surrey, BC Carleton Place, ON V3S 2A7 K7C 3T2 1- 86 6- 87 4 - 6 24 4 I N F O@ M OB I U ST R I M M E R . C O M M OB I US T R I M M E R .
