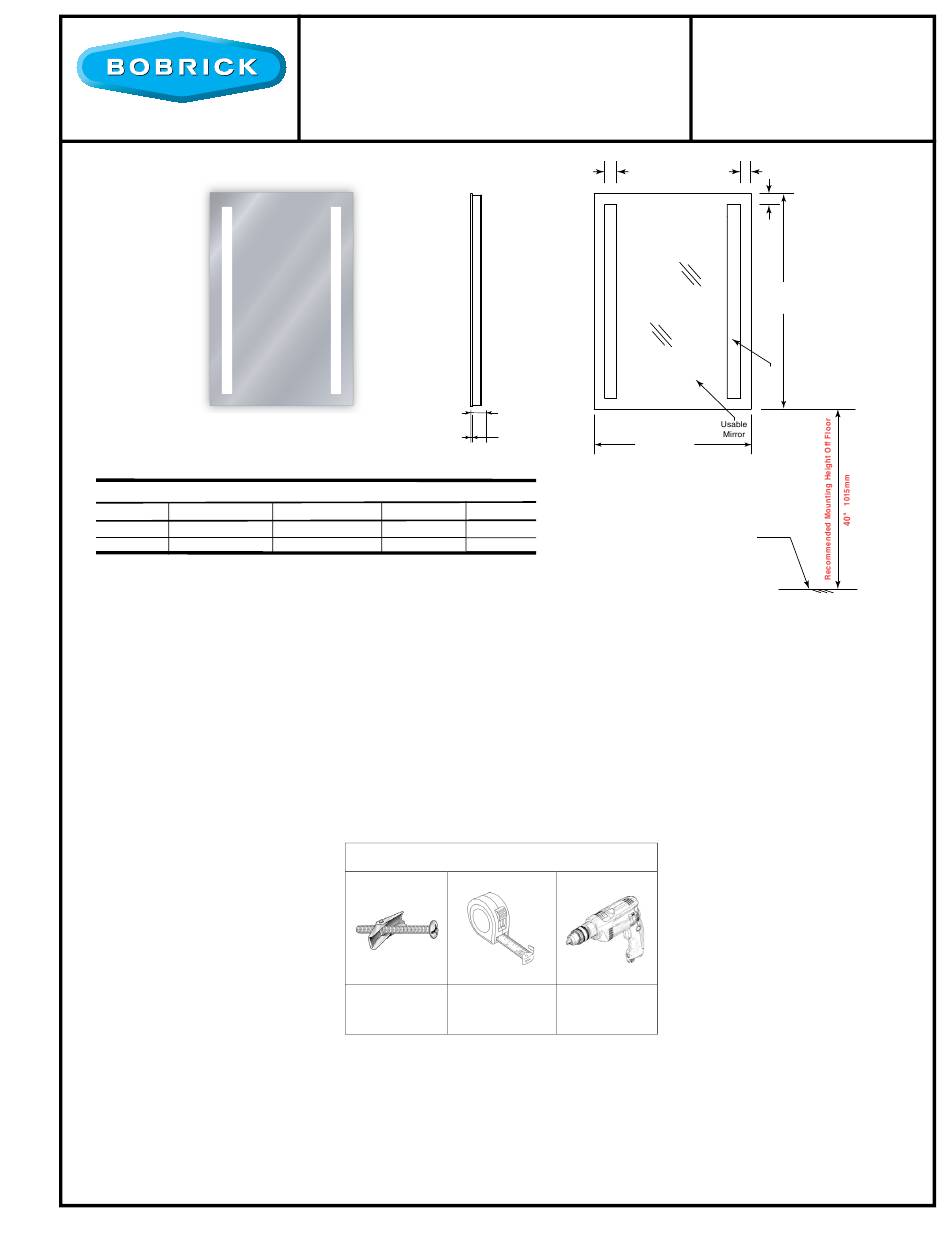

Bobrick B-169 Series Technical Data

Technical Data
STANDARD B-169 MIRROR
W
MODEL NO.
B-169 2436 24'' (610mm)
B-169 3040 30'' (762mm)

Designer's Notes:

1. Mirrors are manufactured to a ±0.04" (1mm).
2. For suffi cient space to lift mirror onto key hole slots allow 1".
3. Mirrors located above lavatories or countertops shall be installed with the bottom edge of the refl ecting surface 40" (1015mm)
maximum above the fi nish fl oor or ground. Mirrors not located above lavatories or countertops shall be installed with the bottom
edge of the refl ecting surface 35" (890mm) above the fi nish face of fl oor.
4. A single full length mirror can accommodate a greater number of people, including children. In order for mirrors to be usable by
people who are ambulatory and people who use wheelchairs, the top edge of the mirror should be 74" (1880mm) minimum from the
fi nish face of fl oor.

MATERIALS:

Glass — 0.19" (5mm) thick safety mirror with 0.14mm PVC fi lm backer with frosted sandblasting.
Extruded Back — Aluminum channel with mounting holes.

Safety Instructions:

• Disconnect power before installing, adding or changing any component.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
• Do not install any luminaire assembly closer than 6" from any combustible materials.
• This power supply must be installed according to the National Electrical Code and local building codes.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
SIDELIT MIRROR
OVERALL SIZE
H
D
36'' (914mm) 1.75'' (44mm)
40'' (1016mm) 1.75'' (44mm)

TOOLS NEEDED

Toggle Bolts
(optional)
LED
(40mm)
1-3/4"
(45.5mm)
.2"
(5mm)
Lumens
1,155
1,340
(Customer Supplied):
Tape Measure Electric Drill
B-169
1.38"
1.6"
(35mm)
2.4"
(60mm)
36" / 40"
(914mm / 1017mm)
LED
Light
24" / 30"
(610mm / 762mm)
Finish Face of Floor
Revised 8/31/18
© 2018 by Bobrick Washroom Equipment, Inc.
continued . . .
Printed in U.S.A.
