Summary of Contents for Wido WD010221100

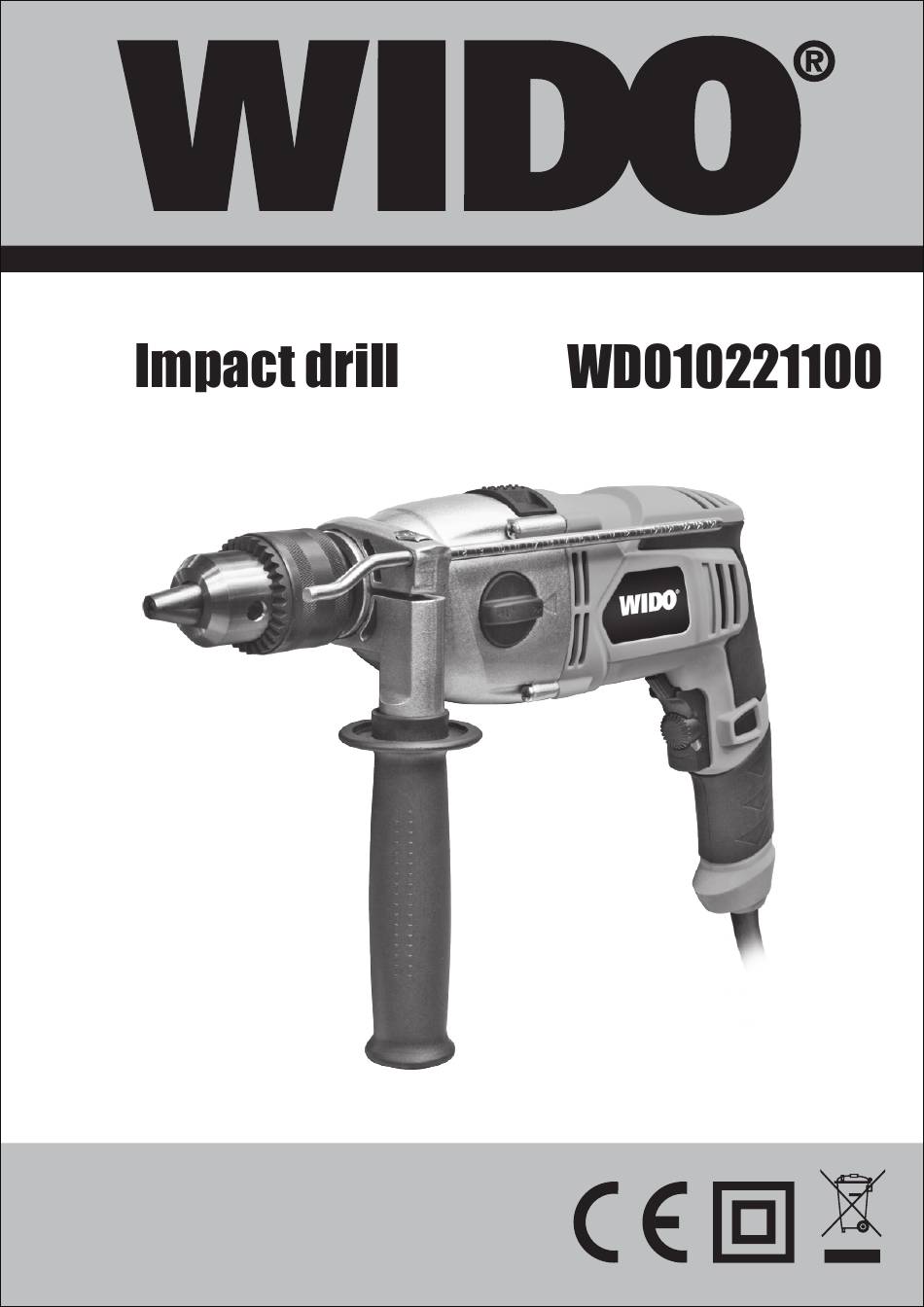

- Page 1 1100W...
- Page 2 WD010221100 Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly...
- Page 3 WD010221100...
- Page 4 WD010221100...
-
Page 5: Component List
1100W IMPACT DRILL COMPONENT LIST 1) Chuck 2) Depth gauge 3) Two speed control 4) Drill/impact action selector switch 5) Lock on button 6) Switch trigger 7) Variable speed control 8) Forward/reverse rotation selector switch 9) Auxiliary handle NORMAL ACCESSORIES 1) Auxiliary handle: 2) Depth gauge: 3) Chuck key:... -
Page 6: General Power Tool Safety Warnings
1100W IMPACT DRILL GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 7 1100W IMPACT DRILL f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 8: Double Insulation
Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice TECHNICAL DATA Model WD010221100 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz... - Page 9 1100W IMPACT DRILL OPERATING INSTRUCTIONS NOTE: Before using the power tool, read the instruction manual carefully. 1. Intended use The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic. Machines with electronic control and right/left rotation are also suitable for screwdriving and thread-cutting.
-
Page 10: Maintenance
1100W IMPACT DRILL accessory to be used. Turn the variable speed control in clockwise direction to increase speed and in anticlockwise direction to decrease speed (See Fig 5). High speed gives higher torque and low speed will provide low torque. Warning: Do not operate for long periods at low speed because excess heat will be produced internally. -
Page 11: Troubleshooting
1100W IMPACT DRILL 1. Keep the power tool ventilation slots clean and free from obstructions. If available, blow compressed air into the vents to clear any internal dust (safety goggles must be worn when undertaking this process). 2. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. 3. -
Page 12: Explosive View
1100W IMPACT DRILL EXPLOSIVE VIEW... -
Page 13: Part List
1100W IMPACT DRILL PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Depth gauge Clutch Auxiliary handle Slide gear Left head screw Spacer Chuck Spring Circlip Bearing Washer Seal ring Seal ring Impact action selector Output spindle Spring Steel ball Steel ball Bearing Shift plate of impact action Rotating impact ratchet Mid support... - Page 14 WD010221100...
- Page 15 WD010221100...
- Page 16 MADE IN CHINA www.widopt.com Copyright @ WIDO Machinery Co., Ltd. All rights reserved.
