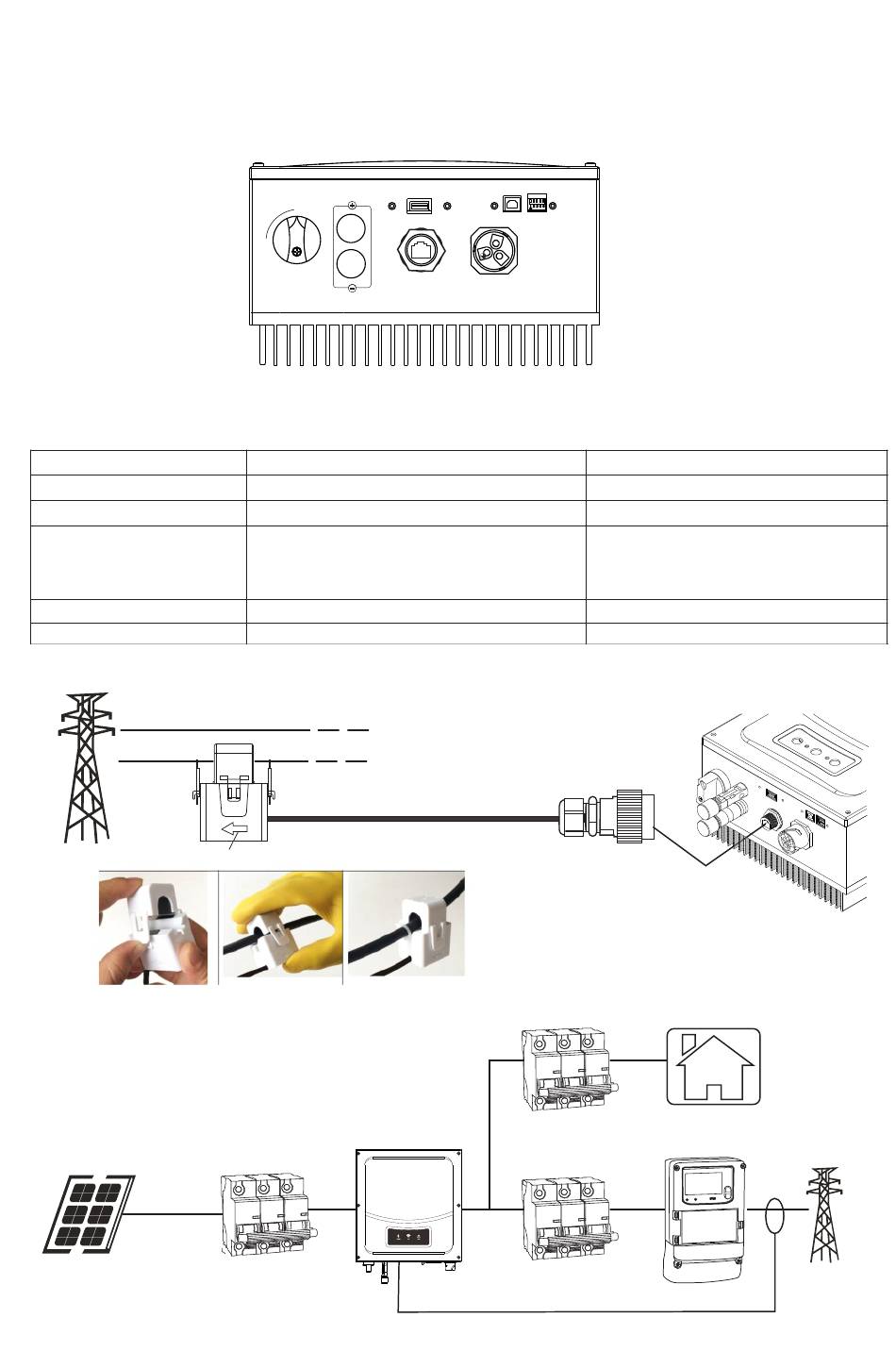

Voltacon PH5000 Series Quick Installation Manual

1.Information

This manual is only applicable to PH5000 PV grid inverter load matching external CT
installation

2.Connector

Note:
The Inverters of PH50-3600M-6000M have two PV inputs,
PH50-2500-3000 only on PV input
connector

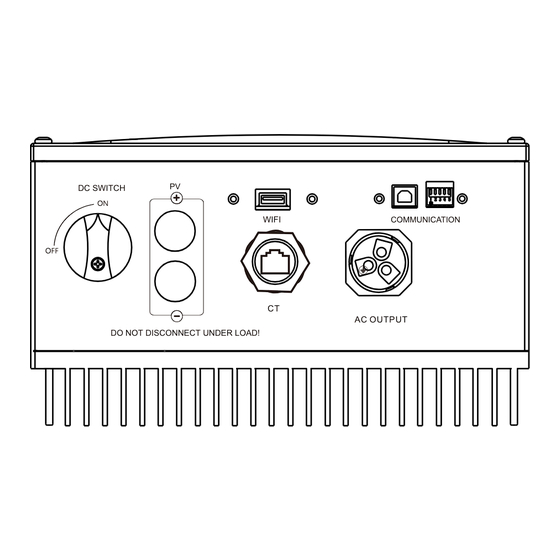

PV
CT
WiFi
AC OUTPUT
COMMUNICATION

3.CT connection

N
L
Pay attention to direction

4.We recommend electrical connection as below

PV modules
Note: Only for inverters with load matching functions, General PV grid inverter electrical installation diagram, please refer to the user manual.
External CT quick installation manual
PV
DC SWITCH
ON
OFF
DO NOT DISCONNECT UNDER LOAD!
description
DC input to photovoltaic panel
Connected load matching CT
Connect to WiFi
AC output connected to the grid
Connect to a computer using USB PC communication
cable tie
fixing
DC load circuit
breaker
WIFI COMMUNICATION
CT
AC OUTPUT
5m
AC load circuit
INVERTER
breaker
AC load circuit
breaker
function
Energy input
Matching household load
Upload data, real-time
monitoring of computer or
mobile phone
Energy output
connection
locking
Family load
Two-way
Energy meter
CT
Utility grid
