STUDIO DUE SLIMBAR SB PILOT 1615 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual for art.1615-1617
Manuale d'uso per art.1615-1617

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLIMBAR SB PILOT 1615 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STUDIO DUE SLIMBAR SB PILOT 1615

Summary of Contents for STUDIO DUE SLIMBAR SB PILOT 1615

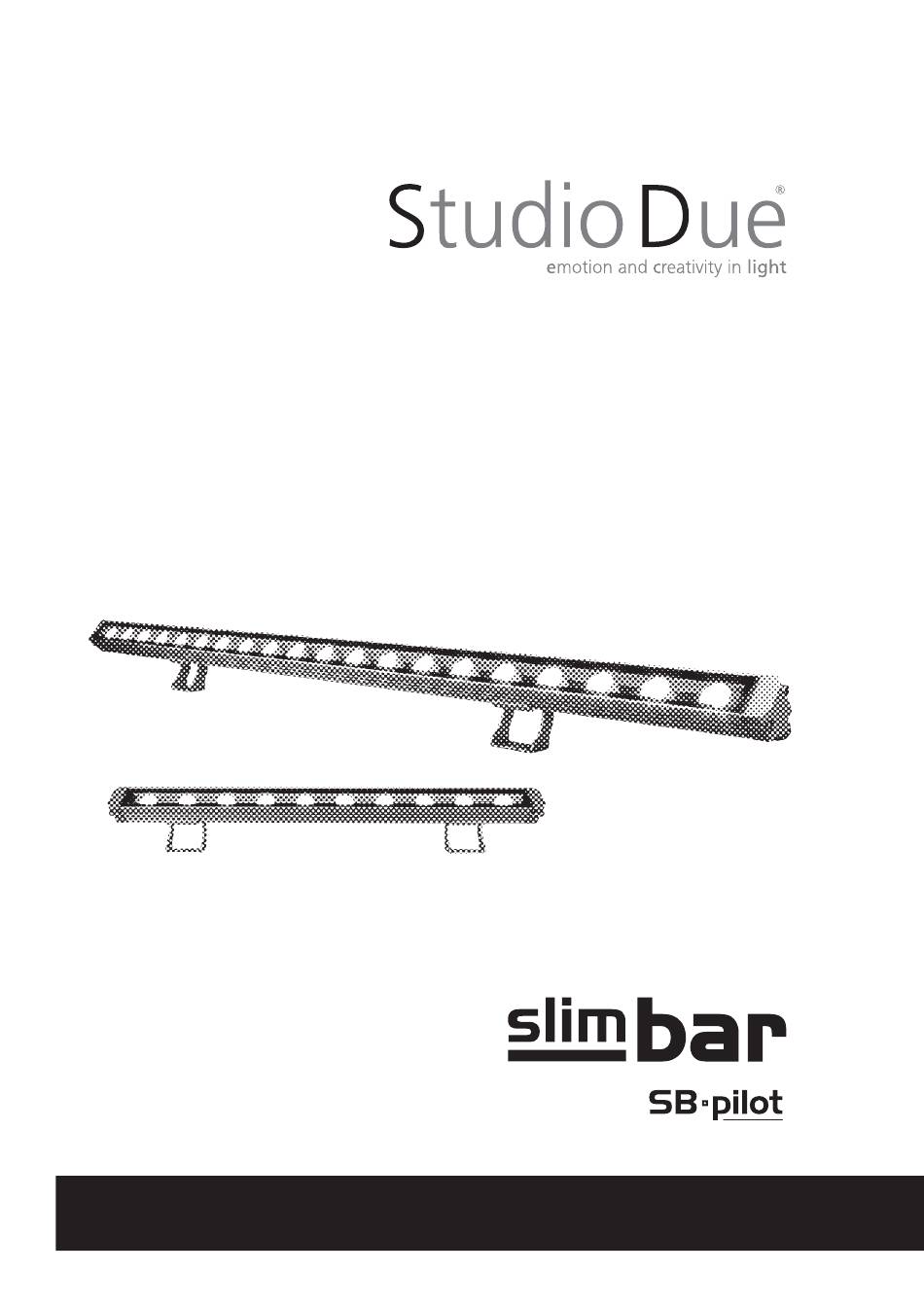

  • Page 1 User manual for art.1615-1617 Manuale d’uso per art.1615-1617...
  • Page 2 Rel.3 - 03/2017...
  • Page 3 INDEX / INDICE Page 3 - Physical / Misure Page 5 - Safety informations / Informazioni di sicurezza Page 6 - Introduction / Introduzione Page 7 - Technical features / Caratteristiche tecniche Page 8 - Control Drive Page 10 - DRS Remote Setup Page 11 - DRS functioning / Funzioni DRS Page 12 - Slimbar DRS menu list / Lista menu Slimbar DRS Page 13 - Slimbar PLUS menu list / Lista menu Slimbar PLUS...
  • Page 4 IN/OUT IP67 connectors - Connettori IP67 IN/OUT SLIMBAR WHITE MALE - INPUT connector +48V / WHITE +48V / WHITE input connector input connector front view rear side welding view WHITE WHITE FEMALE - OUTPUT connector +48V / WHITE +48V / WHITE output connector output connector rear side welding view...
  • Page 5 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiate waste collection centre or to a dealer providing this service.
  • Page 6 INTRODUCTION Thanks for using SLIMBAR, ultra small form factor LED LINEAR BAR with IP67 rating protection. This kind of LED strip bar series is then suitable for accent lighting. Available in two light source: - RGB with high efficiency RGB LEDs - WHITE with high efficiency mid-power white LEDs.
  • Page 7 SLIMBAR TECHNICAL FEATURES / CARATTERISTICHE TECNICHE SLIMBAR Available 100cm. and 50cm. lenghts n. 20 (1,5W) RGB LEDs (n. 10 for 50cm.) Total out lumen: 1200lm (600lm for 50cm.) Total light power: 26W (13W for 50cm.) 20° standard (20mm lenses) - On request: wide Manual 160°...
  • Page 8 IMPORTANT IMPORTANTE THE EQUIPMENT IS SUPPLIED WITH A POWER-IN AND A POWER-OUT CONNECTORS. DO NOT CUT THE CABLES, USE THE SUPPLIED CONNECTORS FOR EXTENSIONS. L’APPARECCHIO È FORNITO DI UN CONNETTORE POWER-IN E DI UNO POWER-OUT. NON TAGLIARE I CAVI, UTILIZZARE I CONNETTORI IN DOTAZIONE PER I PROLUNGAMENTI. CONTROL DRIVE SOLUTIONS art.
  • Page 9 DMX CONNECTION / CONNESSIONE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.
  • Page 10 SETUP and CONFIGURATION by DRS - DMX REMOTE SETUP SETTAGGIO e CONFIGURAZIONE tramite DRS - DMX REMOTE SETUP The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. The LED Lighting fixtures can be driven via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely.
  • Page 11 DRS (DMX Remote Setup) FUNCTIONING To make the set-up of the various fixture parameter, proceed as follow: 8888 sign Conn written and afterwards, displays the name of the fixture and its software version. shows the SCAn written FUNZIONAMENTO DI BASE DEL DRS (DMX Remote Setup) Per effettuare la programmazione dei vari parametri di un apparecchio, è...
  • Page 12 SLIMBAR RGB DRS MENU’ LIST ELENCO MENU’ SLIMBAR RGB DRS Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Slimbar rGb --> 2_00 than it’s shown the fist menu poi viene visualizzato il primo menu Address (Addr)
  • Page 13 All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Studio Due Slimbar --> 1_1 0 --> DMX channel --> C001 than it’s shown the first DMX channel. When you press any button it’s shown the first menu.
  • Page 14 menu Auto (AUto) > Auto mode functions / Funzioni auto mode press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. pr01 .. pr02 .. with the UP/DOWN buttons. Press ENTER. >...
  • Page 15 menu Wireless (WLSS) > Wireless functions / Funzioni wireless press ENTER for submenu / premere ENTER per i sottomenu (EnAb) Enable wireless Enable or disable the wireless reception / Consente o non consente la ricezione wireless The cable reception is disabled / La ricezione via cavo viene disabilitata >...
  • Page 16 menu Service (Srvc) > Service functions / Funzioni di servizio press ENTER for submenu / premere ENTER per i sottomenu (FrMt) Restore the factory setting (Require confirmation) FM-? Ripristina le impostazioni di fabbrica (Viene chiesta conferma) FM-? > Select the value off .. on with the UP/DOWN buttons. Press ENTER. >...
  • Page 17 this page is intentionally left blank / questa pagina è stata intenzionalmente lasciata bianca Rel.3 - 03/2017...
  • Page 18 SB PILOT TECHNICAL FEATURES / CARATTERISTICHE TECNICHE SB PILOT SLIMBAR PILOT PLUS RGB (art. SB PILOT PLUS / RGB) It’s able to drive up to 4mt. of SLIMBAR RGB simultaneously n.3x36V Constant Voltage output (to drive 4mt. of SLIMBAR RGB simultaneously) IP 67 rating protection n.4 out connectors (5 pin) for fast and easy wiring Display and touch pads set-up...
  • Page 19 SB PILOT PLUS/RGB CONNECTION R G B brown/marrone MAIN POWER n.4 OUT blu neutral yellow green/giallo verde +36V / RGB GREEN DMX IN DMX OUT output connector AMPHENOL rear side welding view BLUE CONNECTORS SB PILOT PLUS/WHITE CONNECTION W H I T E brown/marrone MAIN POWER...
  • Page 20 SB PILOT DRS RGB CONNECTION R G B brown/marrone n.2 OUT MAIN POWER blu neutral yellow green/giallo verde CONNECTORS DMX IN DMX OUT AMPHENOL SB PILOT DRS WHITE CONNECTION W H I T E brown/marrone n.2 OUT MAIN POWER blu neutral yellow green/giallo verde CONNECTORS DMX IN...
  • Page 21 W H I T E n.2 OUT brown/marrone MAIN POWER blu neutral CONNECTORS yellow green/giallo verde SLIMBAR WHITE +48V / WHITE output connector rear side welding view WHITE CONTROL DRIVE SOLUTIONS art. SB PILOT PLUS / RGB 3 channels control drive to control up to 4mt. of RGB SLIMBAR. IP rate 67.
  • Page 22 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXURES DRIVER/ ESEMPIO DI COLLEGAMENTO CENTRALINA - DRIVER APPARECCHI SB PILOT SB PILOT driver SB PILOT driver SB PILOT driver driver SB PILOT SB PILOT SB PILOT driver SB PILOT driver driver driver SB PILOT SB PILOT SB PILOT driver...

  • Page 23: Warranty Card

    WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items, except for art. 0403 (CS4), that is 4%. These prices should be subject to possible variations for eventual rises of production costs or duties.
  • Page 24 05/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: code 1617 SLIMBAR / WHITE IP67 series code 1615 SLIMBAR / RGB IP67 series è...
  • Page 25 05/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: code SB PILOT series IP67 è...
  • Page 26 this page is intentionally left blank / questa pagina è stata intenzionalmente lasciata bianca Rel.3 - 03/2017...
  • Page 27 this page is intentionally left blank / questa pagina è stata intenzionalmente lasciata bianca Rel.3 - 03/2017...
  • Page 28 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...
