Summary of Contents for STUDIO DUE nanospot

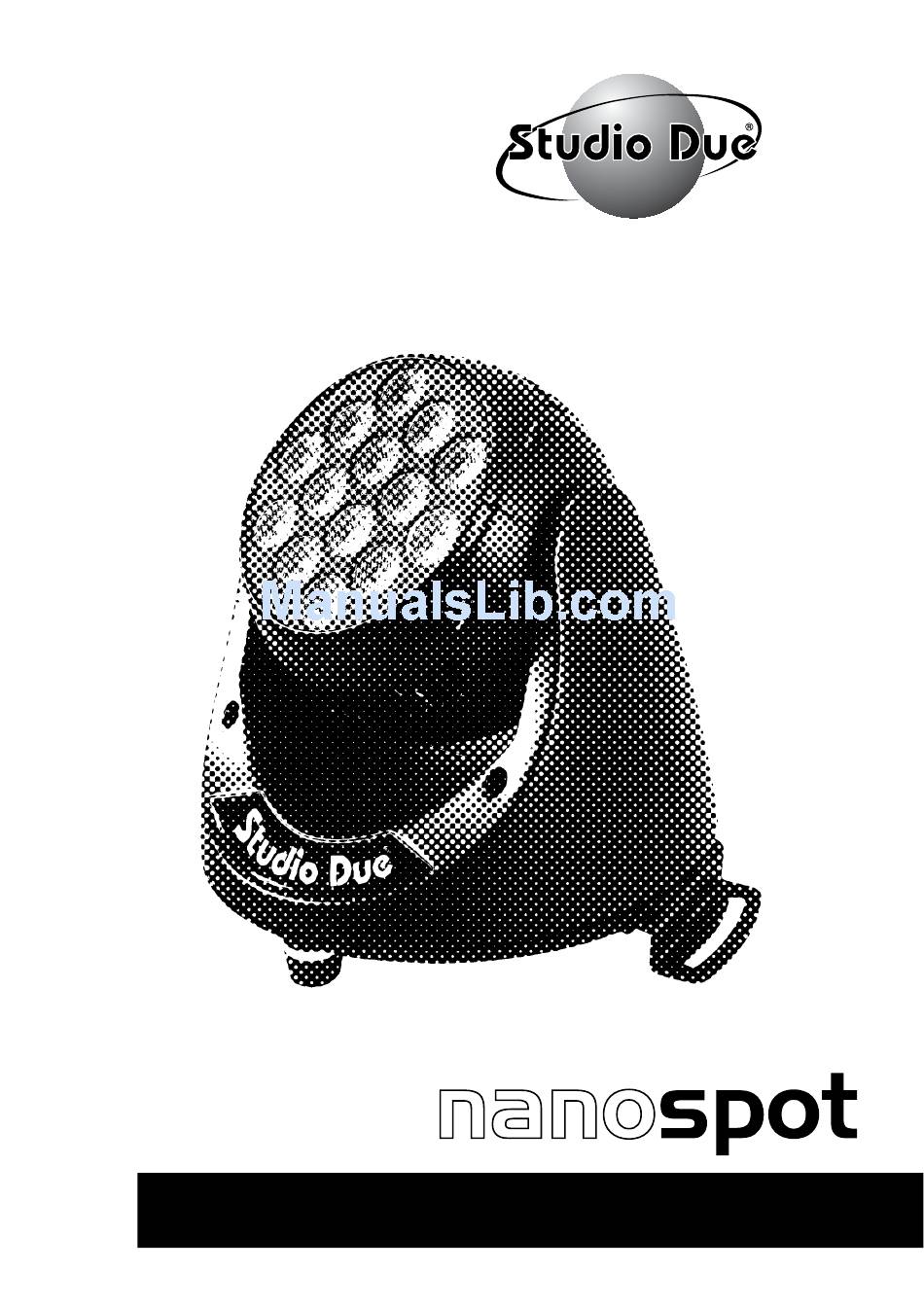

- Page 1 User’s and operator’s manual for art. 0801 and art.08011 Manuale d’uso e dell’operatore per art. 0801 e art.08011...
- Page 2 This page is intentionally left blank...
- Page 3 Safety information: Precauzioni di sicurezza: ............pag. 2 Technical features: Caratteristiche tecniche: ............pag. 4 Main supply connection: Collegamento fonte di alimentazione: ........pag. 5 DMX signal connection: Collegamento segnale DMX: ........... pag. 5 Setting: Settagggio: ................pag. 6 Connection of DMX controller to spot: Collegamento centralina DMX-fari: ......
- Page 4 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local autho- rity waste collection centre or to a dealer providing this service.
- Page 5 Vi ringraziamo per aver scelto NanoSpot. Caratterizzato da un design accattivante e da una resa cromatica incredibile, il NanoSpot si inserisce elegantemente in ogni tipo di ambiente. Un circuito elettronico moderno ed affidabile ne garantisce stabilità e sicurezza di funzionamento per lungo tempo.
- Page 6 TECHNICAL FEATURES / CARATTERISTICHE TECNICHE RGB HI-POWER HIGH EFFICIENCY 3W LEDS WHITE + AMBER HI-POWER HIGH EFFICIENCY 3W LEDS LEDS / LED 4 RED leds 3W (each) total 240 lumen 5 GREEN leds 3W (each) total 440 lumen 5 BLUE leds 3W (each) total 150 lumen Totale LUMEN 830 lumen (RGB)
-
Page 7: Main Power Connection
CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. Questo apparecchio necessita di messa a terra. Apparecchio di Classe I. Il conduttore di protezione deve far parte del cavo di alimentazione. WARNING IMPORTANTE MAIN POWER CONNECTION... - Page 8 Faro n° 3 Faro n° 4 Channel 1-8 Channel 9-16 Channel 17-24 Channel 25-32 Canale 1-8 Canale 9-16 Canale 17-24 Canale 25-32 EXAMPLE OF CONNECTION OF 4 NANOSPOT IN SYNCHRO-MODE ESEMPIO DI COLLEGAMENTO DI 4 NANOSPOT IN MODO AUTOMATICO SINCRONIZZATO Rel.1/04.08...
- Page 9 EXAMPLE OF CONNECTION DMX CONTROLLER TO SPOT / ESEMPIO DI COLLEGAMENTO CENTRALINA-FARI NORMAL OR MASTER-SLAVE FUNCTION/ ESEMPIO DI FUNZIONAMENTO NORMALE O MASTER-SLAVE Rel.1/04.08...
- Page 10 DMX Listing (RGB) / Lista dei valori DMX (RGB) DMX Listing (WHITE+Amber) / Lista dei valori DMX (WHITE+Ambra) Rel.1/04.08...
- Page 11 SERVICE Rel.1/04.08...
- Page 12 BUILT IN PROGRAMMES/LISTA DEI GIOCHI PROGRAM FUNCTION FIXED RED FIXED GREEN FIXED BLUE RED -> GREEN -> BLUE -> RED+GREEN -> RED+BLUE -> GREEN+BLUE -> RED+GREEN+BLUE (step time 3 sec.) RED -> GREEN -> BLUE -> RED+GREEN -> RED+BLUE -> GREEN+BLUE -> RED+GREEN+BLUE (step time 5 sec. + 2.5 sec. fade) RAINBOW SLOW RAINBOW MID RAINBOW FAST...
- Page 13 Rel.1/04.08...
- Page 14 Rel.1/04.08...
- Page 15 NANOSPOT EXPLODED VIEW / ESPLOSO DISEGNO NANOSPOT Rel.1/04.08...
- Page 16 NANOSPOT SPARE PARTS / LISTA COMPONENTI NANOSPOT Rel.1/04.08...
- Page 17 WARRANTY / GARANZIA Warranty CARD &RPSDQ\ QDPH 0U0UV0LVV $GGUHVV 7HO RU (PDLO 'HDOHU Rel.1/04.08...
- Page 18 Rel.1/04.08...
- Page 19 Rel.1/04.08...
- Page 20 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk...
