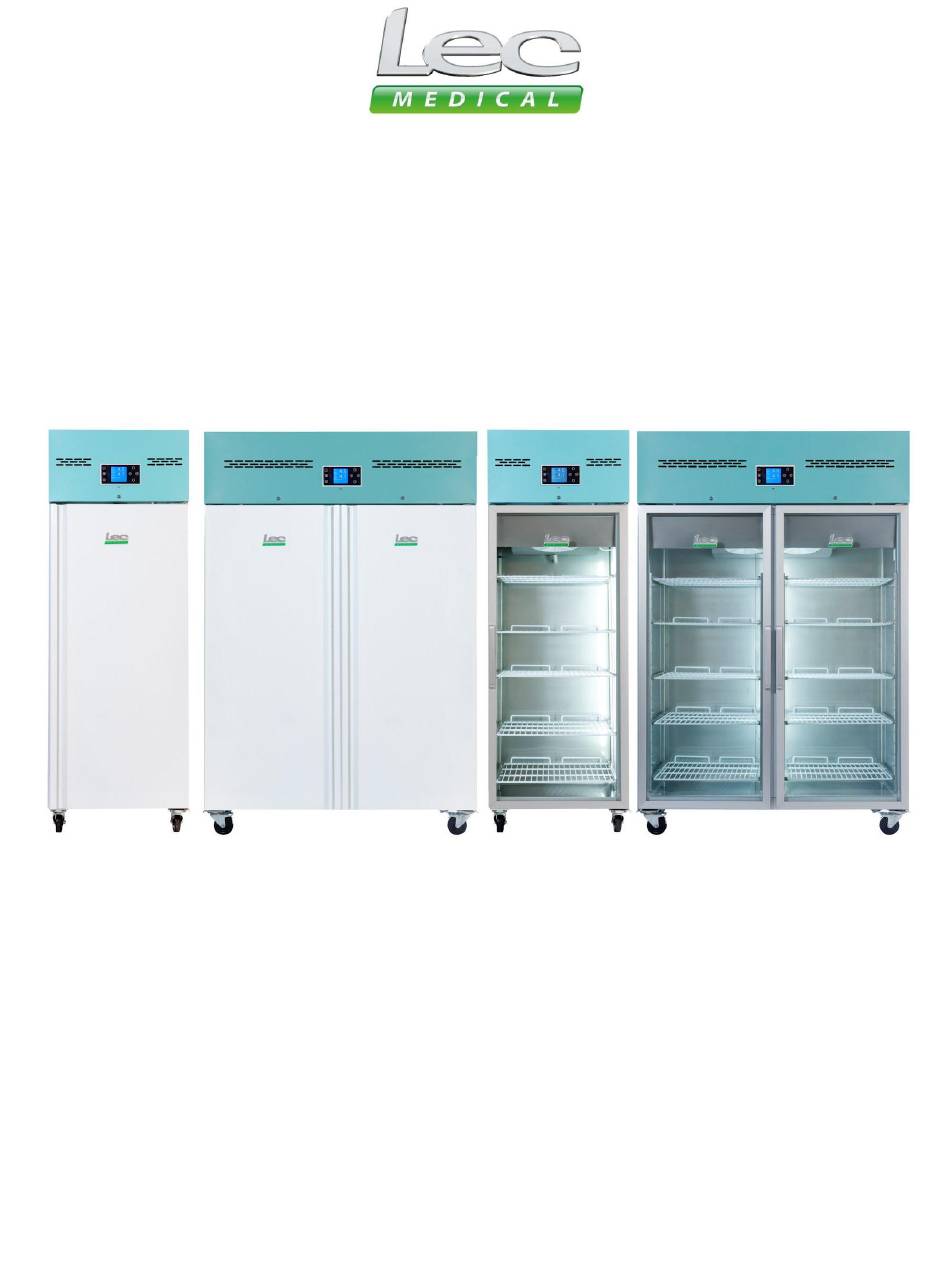

- Page 1 MEDICAL REFRIGERATORS PSR600 PSR1200 PGR600 PGR1200 USER INSTRUCTIONS Page | 1...
-
Page 2: Table Of Contents
Contents Installation 3..................Technical Data 4..................Positioning and Location 4..................Accessories 5..................Electrical Connection 5..................Starting Up 6..................Safety Notes 6..................Cleaning and Maintenance 6..................Important Storage Advice Controller 7..................Overview / Button Functions 8..................User Options Menu 9..................User Settings Menu 10................... -
Page 3: Technical Data
After you have received your appliance, inspect the packaging carefully for any damage that may have occurred during shipping. Immediately report any damage to Lec Medical, see page 18 for contact details. Before using the unit, read these operating instructions carefully, including all the information on operating safety, use and maintenance. -
Page 4: Positioning And Location
Positioning and Location Remove all packaging including strips of adhesive tape, plastic bags and pieces of packing foam from inside the cabinet. The unit must be set up in a dry well ventilated place. Avoid locating the unit in direct sunlight or close to heat sources such as radiators Air must be allowed to circulate freely around the appliance Make sure there is adequate ventilation all around the cabinet, ensuring there is gap of 50mm around the sides, 75mm at the rear and 25mm at the... -
Page 5: Electrical Connection
Electrical Connection If the refrigerators voltage rating does not match your electrical supply, or if the plug on the power cord does not fit the outlet, do not plug the refrigerator in. Contact your supervisor, safety officer, or qualified service or electrical engineer. THIS APPLIANCE MUST BE EARTHED To prevent problems with other electrical equipment causing this unit to malfunction, it should be connected to a separate circuit. -
Page 6: Safety Notes
Safety Notes Ensure that users familiarise themselves with the user instructions. Failure to install and operate the appliance according to these instructions may result in harm to the operator, or the contents being stored. This appliance must only be used by adults. Do not allow children to play with the appliance or touch the controls. -
Page 7: Important Storage Advice
Important Storage advice Do not overfill the appliance with product Only store items on the shelves provided Store items tidily and allow for air to circulate around Make sure that stored items do not touch the reference bottle or the air sensor. The maximum weight load per shelf is 25kgs Page | 7... - Page 8 Temperature Controller Load temperature display Overview (In 200ml fluid bottle) Alarm LED Air Temperature display Enter Key Used to enter the various sub-menus and start some functions Up / Down buttons Mute Button Used to navigate the menu’s Light ON/OFF Menu Button button Used to enter...
-
Page 9: User Options Menu
User Options Menu The “USER OPTIONS” menu contains 4 options. These are described in more detail below. ALARM HISTORY – The controller logs alarm events and the alarm history option is used to check the details of the alarm. For more details please refer to the ALARM HISTORY on page 12. SENSOR TESTS –... -
Page 10: User Settings Menu
To copy the file to a USB memory stick, proceed as follows: Remove the protective USB cap. Insert a USB memory stick. Press ENTER on the “COPY LOG TO USB” option. The controller will then begin to copy the information to the USB memory stick and display the progress as shown: After the log file has been successfully copied, “COPY COMPLETED”... -
Page 11: Alarms & Error Messages
DOOR ALARM TIME – This setting is used to change the length of time the door is open before the DOOR ALARM warning is displayed and the audible alarm starts. This setting can be adjusted between 1 minute and 10 minutes. The default setting is 1 minute. LIGHT ON TIME –... -
Page 12: Alarm History
LOAD LOW ALARM This alarm is triggered as soon as the temperature of the load sensor in the fluid falls below +2°C. The alarm message clears as soon as the temperature rises back above +2°C. AIR HIGH ALARM This alarm is triggered once the air temperature exceeds +8°C for a period of longer than 15 minutes. -
Page 13: Internal Light
Type of alarm Start Time and Date of Alarm End Time and Date of Alarm In the case of a temperature alarm, the highest or lowest temperature reached is shown Once the details of the alarm have been checked, EVENT OCCURRED will disappear from the status line on the controller. -
Page 14: Remote Alarm Terminals
Internal Light The appliance is fitted with an internal light. The light will turn on automatically when the door is opened, and off when it is closed. It can also be switched on from the control panel by pressing the button. -
Page 15: Internal Fan
Internal Fan All large capacity pharmacy refrigerators have internal fans fitted to ensure an even temperature throughout the storage chamber. In order to prevent warm air being drawn into the refrigerator, the fan switches off automatically when the door is opened. It is vital that the internal fan is functioning correctly –... -
Page 16: Troubleshooting
If you intend to use the access port, remove the plastic caps and the foam insert from the access port hole. Slide the replacement plastic cap with a hole in over your probe as shown in photo 4A. Place the cable of the probe in the slit in the foam insert as shown is photo 4B. -
Page 17: Disposal
E-mail:info@gdha.com Tel: 0844 8153755 Fax: 0844 8153748 Sales: E-mail: Sales@gdpa.co.uk Tel: 0844 8153742 Fax: 0844 8153748 Address: Lec Medical Stoney Lane Prescot Merseyside L35 2XW For our full range of medical refrigerators and freezers, please visit www.lec-medical.co.uk Page | 17...
