Summary of Contents for Moxa Technologies AWK-3131

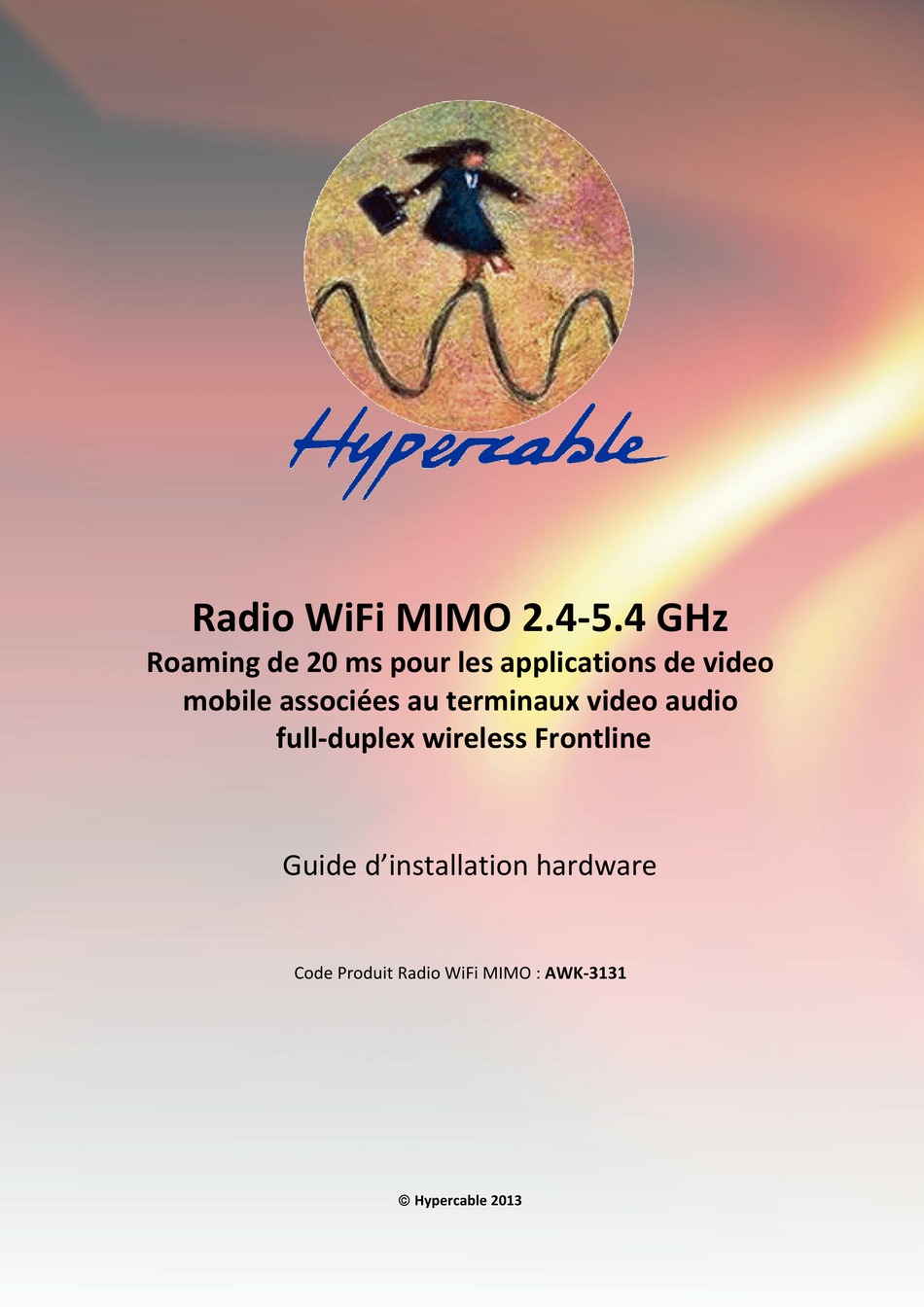

- Page 1 Radio WiFi MIMO 2.4-5.4 GHz Roaming de 20 ms pour les applications de video mobile associées au terminaux video audio full-duplex wireless Frontline Guide d’installation hardware Code Produit Radio WiFi MIMO : AWK-3131 Hypercable 2013...
-
Page 2: Table Of Contents
Pelicase Relais radio versatile universel LAN-WAN ............. 3 Hypercable contact....................... 4 Manuel ......................... 5 L’AWK-3131 et son alimentation 48 VDC M/M/D/S HYPERCABLE 81 Rue des Carrières ZA de la Ronze 69440 TALUYERS tel : +33 4 78 48 74 75 – www.hypercable.fr... -
Page 3: Produits Périphériques
1 Produits périphériques 1.1 Casques de sécurité avec camera Video, audio full duplex et WiFi intégrés Body Worn video audio data radio PPT de présentation générale. Domaines d'application. Produits Radio connectés. Téletravail video assisté Video-Conférence Wireless televideo assistance & conferencing. Quand le travail exige la performance sans compromis, ne cherchez pas autre chose que le MobiRake-Frontline HD. -
Page 4: Hypercable Contact
2 Hypercable contact M/M/D/S HYPERCABLE 81 Rue des Carrières ZA de la Ronze 69440 TALUYERS tel: +33 4 78 48 74 75 – www.hypercable.fr... -
Page 5: Manuel 5.1
40 MHz channel to deliver a potent combination of greater reliability and more bandwidth. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3131 can be powered via PoE to make deployment easier. The AWK-3131 can operate on either the 2.4 or 5 GHz bands and is backward-compatible with... - Page 6 Step 1: Select the power source The AWK-3131 can be powered by a DC power input or PoE (Power over Ethernet). The AWK-3131 will use whichever power source you choose. Step 2: Connect the AWK-3131 to a notebook or PC...
- Page 7 Step 6: Test communications We will describe two test methods. Use the first method if you are using only one AWK-3131, and use the second method if you are using two or more AWK-3131s. Testing method for one AWK-3131 If you are only using one AWK-3131, you will need a second notebook computer (B) equipped with a WLAN card.
- Page 8 Panel Layout of the AWK-3131 1. Grounding screw 2. Terminal block for PWR1,PWR2, relay, DI1, and DI2 3. Reset button 4. System LEDs: PWR1, PWR2, PoE, FAULT, and STATE LEDs 5. LEDs for signal strength 6. WLAN LED 7. Ethernet or Fiber LED 8.
- Page 9 DIN-Rail Mounting The aluminum DIN-Rail attachment plate should be fixed to the back panel of the AWK-3131 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the AWK-3131, make sure the stiff metal spring is situated towards the top, as shown in the figures below.
- Page 10 Wall Mounting (optional) For transportation applications that require an EN 50155 certification report, we strongly recommend the purchase of the optional AWK-3131 wallmount kit, which has passed EN 50155 testing. This wallmount kit is also convenient for other applications that require mounting the AWK-3131 to a wall.
- Page 11 Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa AWK-3131. WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowed for each wire size.
- Page 12 Wiring the Redundant Power Inputs The top two pairs of contacts of the 10-contact terminal block connector on the AWK-3131’s top panel are used for the AWK-3131’s two DC inputs. Top and front views of the terminal block connector are shown below.
- Page 13 DC power source voltage is stable. Wiring the Relay Contact The AWK-3131 has one relay output, which consists of the two contacts of the terminal block on the AWK-3131’s top panel. Refer to the previous section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.
- Page 14 The AWK-3131 has one RS-232 (8-pin RJ45) console port located on the front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-3131’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-3131 for console configuration.
- Page 15 Refer to the Pinout diagram above to see how RJ45 pins are numbered. LED Indicators The front panel of the Moxa AWK-3131 contains several LED indicators. The function of each LED is described in the table below. Color State...
- Page 16 Amber LAN port’s 10/100 Mbps link is active. www.hypercable.fr Amber Data is being transmitted at 10/100 Blinking Mbps Amber LAN port’s 10/100 Mbps link is inactive Green/ Amber Green LAN port’s 1000 Mbps link is active. Green Data is being transmitted at 1000 Mbps Blinking Green Off LAN port’s 1000 Mbps link is inactive Specifications...
- Page 17 TX Transmit Power: 802.11b: www.hypercable.fr 1 to 11 Mbps: Typ. 18 dBm (± 1.5 dBm) 802.11g: 6 to 24 Mbps: Typ. 18 dBm (± 1.5 dBm) 36 to 48 Mbps: Typ. 17 dBm (± 1.5 dBm) 54 Mbps: Typ. 15 dBm (± 1.5 dBm) 802.11a: 6 to 24 Mbps: Typ.
- Page 18 Details: See www.moxa.com/warranty ATTENTION The AWK-3131 is NOT a portable mobile device and should be located at least 20 cm away from the human body. The AWK-3131 is NOT designed for the general public. To deploy AWK-3131s and establish a wireless network safely, a well-trained technician is required for installation.
