Splash SuperPools TitanPool3 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
By
Owner's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the TitanPool3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Splash SuperPools TitanPool3

Summary of Contents for Splash SuperPools TitanPool3

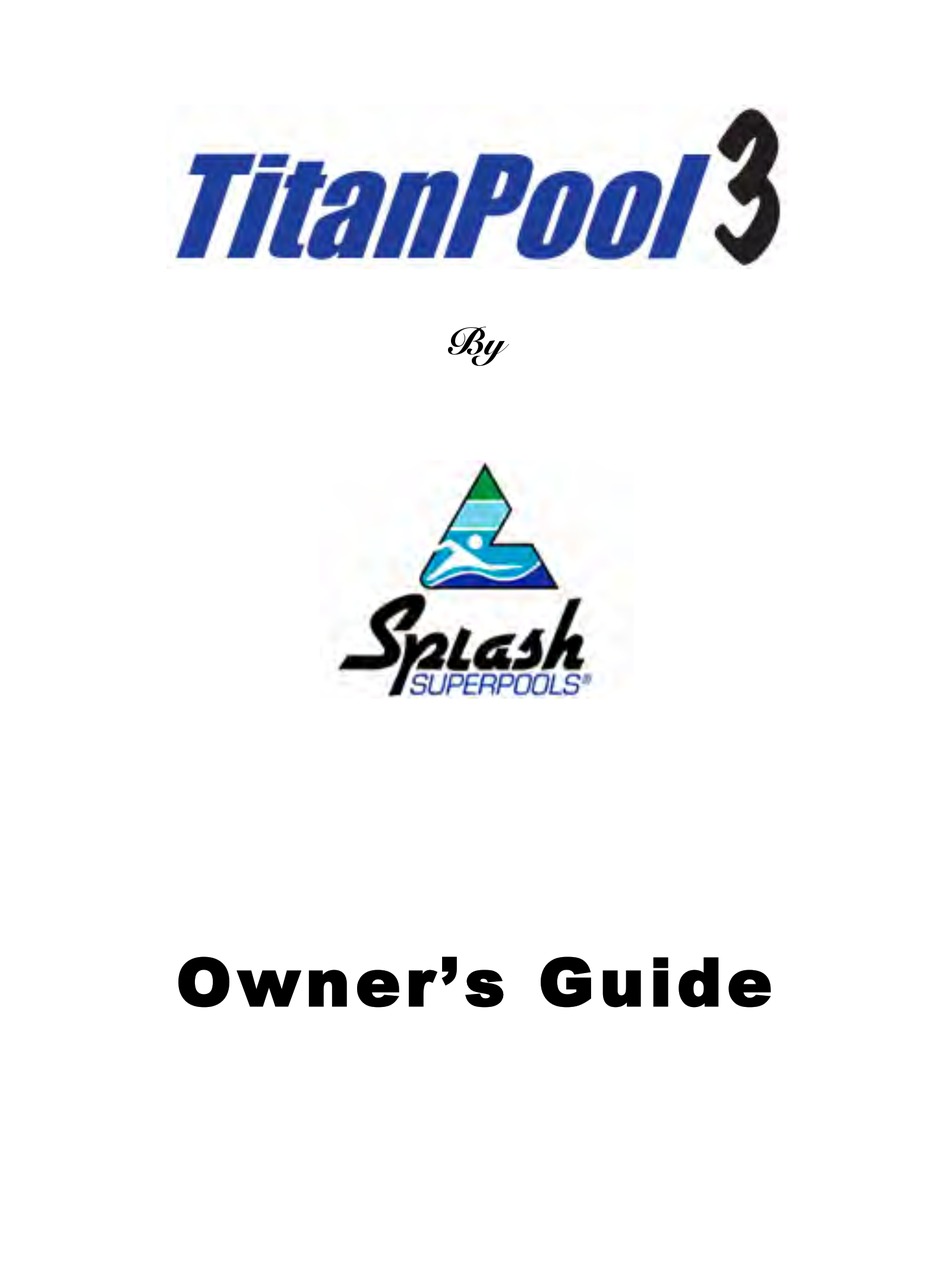

  • Page 1 Owner’s Guide...
  • Page 2 Table of Contents Congratulations Titan3 Parts List Site Preparation & Rectangular Pool Set-up Round Pool Parts List and Set-up 8-10 Care and Winterizing of your Titan3 Important Reminders Box 4 Contents and Instructions Splash Ladder Assembly Additional Information Never leave children or other inexperienced swimmers alone in the pool!
  • Page 3 Always lock your safety ladder in the up and locked position to prevent unauthorized entry into the pool when proper supervision is not available . WARNING: The water in your TitanPool3 is shallow (at 4ft deep)! Never dive or jump into the pool, as serious injury could occur!
  • Page 4 Titan3 Parts List Pool Liner (Not Shown Here) Male Top Rail End Section Middle Top Rail Section Female Top Rail End Section Pool Leg Galvanized Connection Pin Stainless Connection Ring Optional FootBlock (Purchased Separately) Optional Footblocks...

  • Page 5: First Steps

    It is best to provide a 2” fine sand base for maximum protection of your TitanPool3 liner. If this is not available, a heavy gauge visquene separation sheet will help to protect your liner.
  • Page 6 4. Distribute the Legs (E) with two (2) stainless steel rings (G) slid onto each Leg (E) around the perimeter of the pool. Next, insert one end of the Leg into the top rail hole closest to the end. Put your foot against this leg end and stretch the other end of the leg until it fits into the next top rail hole.
  • Page 7 (or damage could occur to the white top rail membrane), and that the foot straps are fully extended all around the pool. Filling your TitanPool3 1. Your Titan3 will not stand up completely by itself at this point. However the walls will stand up enough to allow for the longer wall top rail to fit inside of the shorter end walls.
  • Page 8 Parts List for Titan3 Round Pool A. Galvanized Top Structure B. Bottom Structure C. White Upright Structure D. Bag with Clear Elastic Plastic Hose and Connecting Pins (E) F. Pool Liner (Not Shown)
  • Page 9 Titan3 Round Pool Assembly Instructions 1. Survey your yard to determine the best, level location for your Pool. Remember do not install under Power Lines. Local a level area approximately two (2) ft in diameter larger than your pool, to allow enough space for the legs. Also, make certain that the area has easy access to an appropriate GFI Protected Outdooor electrical outlet.
  • Page 10 8. Have one person stand inside of the pool liner and lift the white membrane top rail (with the Top Structure (A) inside). Arrange the protruding Top Structure ends to fit down into the nearest vertical Upright Structure Tube (C). The person inside the pool should continue lifting the adjacent Top Rail Membrane, as the outside person inserts each successive Top Structure end down into the vertical Upright Structure Tube, until the Pool liner is completely attached to the Vertical Supports.
  • Page 11 Care or your TitanPool3 1. Chemical Use- Consult with your pool chemical provider about the proper treatment of your pool water. It is best to have your water tested, periodically, by a qualified Pool chemical provider to determine what is required. Remember that over chlorination of your pool will “Bleach Out”...
  • Page 12 Your Titan3 Pool has been built to Splash’s rigorous specification and crafted for your family’s enjoyment. However! REMEMBER THAT IT CAN ALSO BE DANGEROUS, IF NOT ATTENDED TO PROPERLY . BE SURE TO INSTALL ACCORDING TO ALL LOCAL AND STATE BUILDING AND SAFETY CODES.
  • Page 13 Box 4 This box should contain the following items: A. Wall Fittings- qty 2 H. Floating Skimmer Weir B. 3 m & 4 m Hose with 4 gaskets I. Skimmer Basket C. 90 degree threaded elbow J. Skimmer Body w/hoses D.
  • Page 14 pool (NOTE: This is a good place to have one person on the inside of the pool to assist), then screw the female threaded flanged nut on from the outside of the pool membrane (with the rubber and paper gaskets). No Teflon tape or thread sealer is required. 2.
  • Page 15 Titan3 Ladder Assembly Instructions...
  • Page 16 O.(2) Long Metal Screws F. (2) Top Ladder Handles P. (2) Metal “J” Hooks G. (2) Vertical Supports (White) H. (2) Exterior Step Rails (White) Q.(1) Ladder Tool R. (1) Warning Label I. (1) Metal Berth Pipe © 2003-Splash Superpools Ltd.
  • Page 17 Interior Step Rails. 3. Now insert two Metal Pins into the Interior Step Rail’s holes. 4. Push the Interior Step into place. Use the same procedure for the remaining Interior Step. © 2003-Splash Superpools Ltd.
  • Page 18 1. Insert the two Top Ladder Handles into the assembled Interior Step’s holes. 2. Insert the Assembled Platform, lining up the holes for the Metal Screws. 3. Insert the Metal Screws, apply the Nuts and Washers and tighten with the Ladder Tool. 4. The Interior Steps are now complete. © 2003-Splash Superpools Ltd.
  • Page 19 2. Line up the holes of the Platform piece and the Exterior Steps for the Metal Screws. 3. Using the Ladder Tool, tighten the Metal Screws with the corresponding Nuts and Washers. 4. The SplashLadder assembly is now complete. © 2003-Splash Superpools Ltd.
  • Page 20 Hooks to the Berth Pipe with the corresponding nuts. (A wrench will be required for this step). 6. Tighten the long screws on the Berth Pipe and Bottom Ladder Supports. Screw the Round Plastic Caps (S) onto the exposed thread of the “J” Hooks. Your Splash Ladder is now secure. © 2003-Splash Superpools Ltd.
  • Page 21 5. Place the Warning Label on the outside of an Exterior Step. WARNING: Shallow water! Never jump or dive into any above ground pool; serious bodily injury could occur. If you have any questions on the assembly of the SplashLadder, please call your local Splash dealer. © 2003-Splash Superpools Ltd.
  • Page 22 Mounting Brackets and tighten with the corresponding Nuts and Washers. 4. The SplashLadder “Horseshoe” Berth Pipe is now secure. 5. Slide the SplashLadder Vertical Supports into the SplashLadder “Horseshoe” Berth Pipe until the snap couple system is in place. The SplashLadder assembly is now complete. © 2003-Splash Superpools Ltd.
  • Page 23 Do not disassemble the pool skimmer when the pump is operating-strong suction! Only allow an adult to remove the floating weir to clean the leaf basket. If you have any questions on the assembly of the TitanPool3 Ladder, please call your local dealer. 3.07...
  • Page 24 7 Year Limited Warranty This Warranty Document is provided to the original purchaser (only) of a Titan3 Pool. It is provided to advise the new TitanPool3 Owners of their rights under this Limited Warranty. It is important to fill out the Warranty Registration Card and mail it in to Splash SuprPools Limited (Splash), in order to activate the Warranty.
  • Page 25 Pool Ladder 5 YEAR PRORATED LIMITED W ARRANTY The TitanPool3/Splash Pool Ladder Limited Warranty applies only to the original purchaser of a new TitanPool3 /Splash Ladder for residential use and commences on the date of purchase. The metal components are covered, under this warranty, for a period of five (5) years (prorated);...

  • Page 26: Warranty Registration

    ___ 2 ___ $51- $75,000 ___ 51-60 ___ 3 ___ $76- $100,000 ___ Over 60 ___ 4+ ___ Over $100,000 Please fill out and mail back to: Splash SuperPools Limited, Warranty Division 3912 East Progress, North Little Rock, AR 72114...
