All Things Cedar Folding Andy FA20U Instructions

Tools Required: #2Philips or Robertson screwdriver - ( 2) – 7/16 inch wrenches or pliers

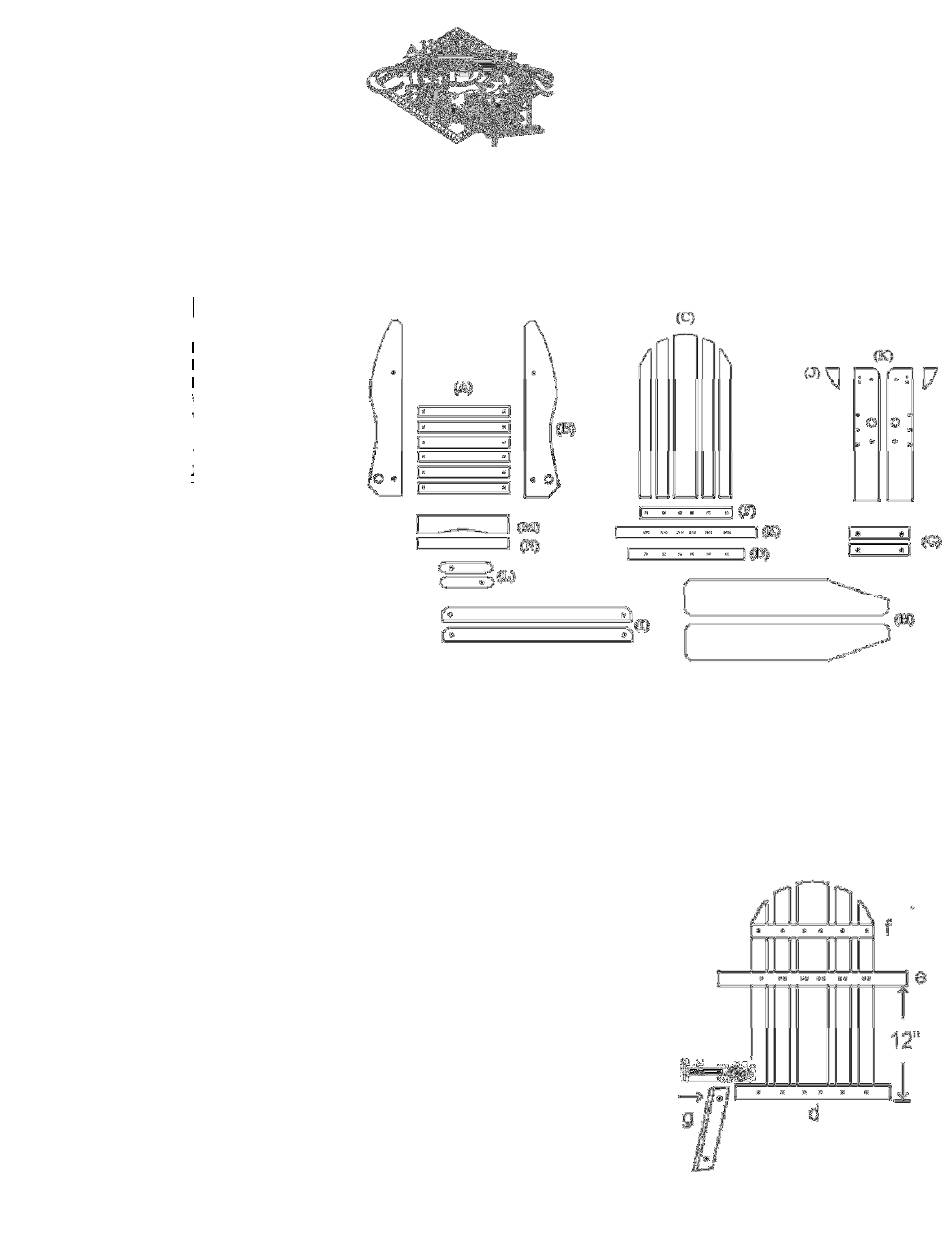

Parts:

Hardware:
(A) Seat Slats...6 Hex Bolts...6
(B) Sides...2 Lag Bolts... 4
Lock-Nuts...6
(C) Back Slats...5 Washers...26
(D) Bottom Cleat...1 ½ x ¾" spacer...2
(E) Middle Cleat...1
(F) Top Cleat...1 1-1/2 inch screws...40
2 inch screws...16
(G) Pivot Arm...2 Twine ...2 pcs.
(H) Arms...2
(I) Arm Cleat...2
(J) Wedge...2
(K) Legs...2
(L) Dowel Peg...2
(M) Front Scallop...1
(N) Leg Brace...1

Step 1. Assemble Seat

•
Stand sides (B) on edge about 20 inches apart - large peg holes towards the front.
•
Attach seat slat (A) across bevel edge of sides using 1 ½" screws.
•
Use narrow edge of ½" spacer to evenly set out and attach remaining seat slats.

Step 2. Assemble Back

•
Set back slats (C) finished face down – use narrow edge of ½" spacer
to attain uniform spaces between each slat.
•
Place bottom cleat (D) across back slats - make flush with bottom of
slats – allow ends to overhang evenly and attach using 1 ½" screws.
•
Set middle cleat (E) 12 inches up from bottom of slats – allow ends to
overhang evenly and attach using 1 ½" screws.
•
Measure approx. 21 inches from bottom of slats, center the top cleat
(F) across the 5 back slats and attach using 1 ½" screws.
•
Fasten Pivot Arm (G) to each end of bottom cleat as follows.
-Place washer on a lag bolt.
-Insert lag bolt through hole in pivot arm (G).
-Place another washer on the lag bolt and attach to the end of the bottom cleat (D)
(when finished a washer should be located between the pivot arm and bottom cleat)
Folding Andy Instructions
(FA20U unassembled kit)
