All Things Cedar RC22U Instructions

Tools Required: #2 Philips Drive, #2 Square Drive, Wood Glue.
( Its recommended wood glue be used on all dowel joints)

HARDWARE

1 ¾" Screw...38
2 ½" Screw...12
4" Screw...4
Carriage Bolt...4
Hex Nut...4
Washer...4

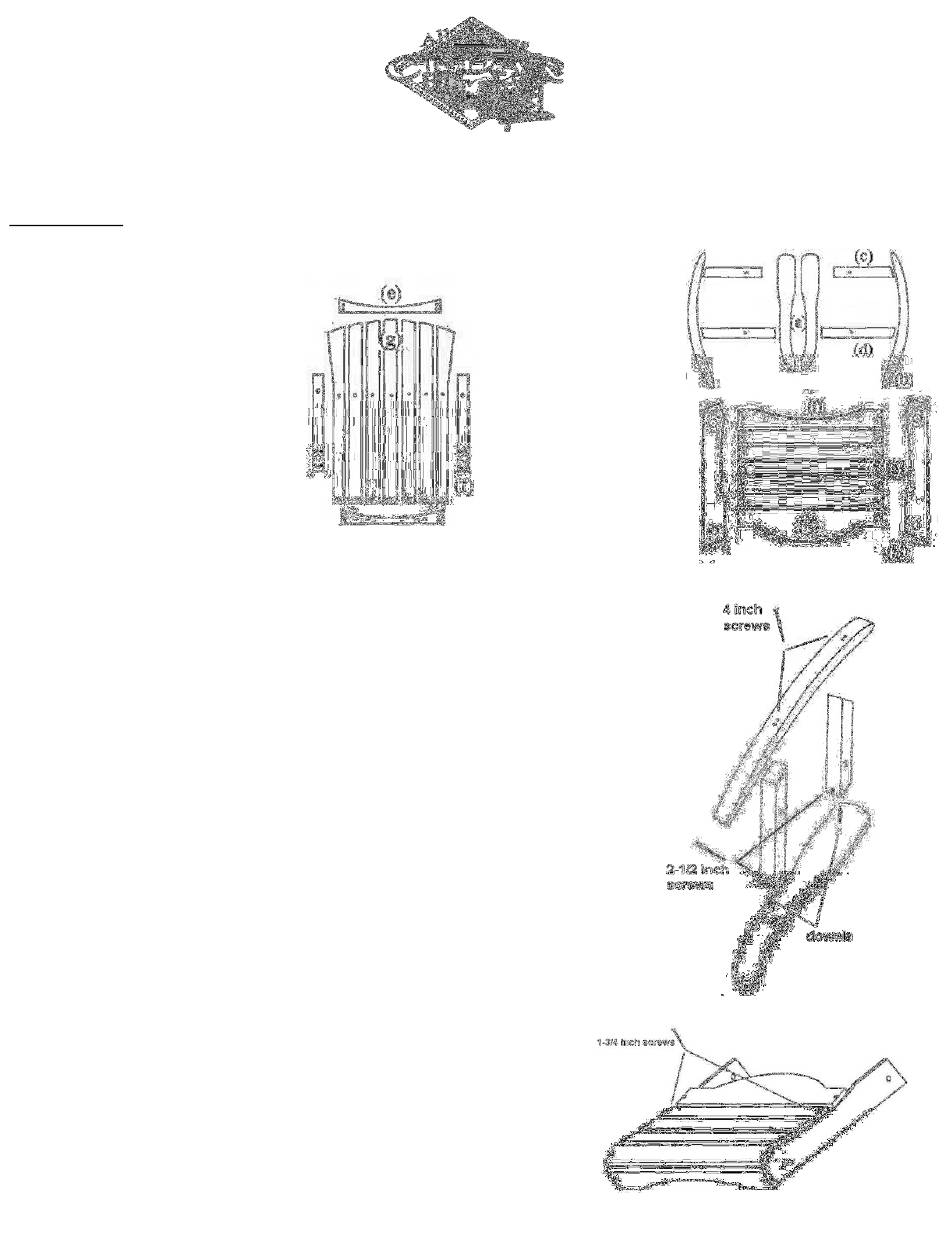

Step 1. Layout Parts

•
Layout all parts as seen in the parts diagrams above.

Step 2. Build Rocker/Arm Assembly

•
Position short leg near front of arm and long leg near rear of arm.
Attach the legs to the arms using dowels and 2-1/2 inch screws.
•
Position rocker over leg assembly so that front (shorter) leg
is nearest to front of rocker, attach using 4 inch square drive screws.

Step 3. Build Seat Assembly

•
Place sides approximately 21-1/4 inches apart.
•
Attach front scallop using 1 ¾ inch screws.
•
Place a seat slat so it overlaps front scallop and attach.
•
Attach remaining seat slats + 1 rear cove slat with 1 ¾ inch
screws. Leave no spacing between slats - fit tight together.
Rocker Instructions
(RC22U unassembled

PARTS:

(a) 2 arms
(b) 2 rockers
(c) 2 front leg
(d) 2 back leg
(e) 2 back supports
(f) 2 struts
(g) 7 back slats
(h) 2 sides
(i)
(j)
(k) 1 rear cove slat
kit)
1 front scallop slat
5 seat slats
